Description
Meddings Compact 13 Drill – variable speed drilling machines comes in bench drill or floor mounted pedestal drill. 230v single phase drilling machines with max 13mm capacity into mild steel (EN1A). Popular drilling machines for education facilities UK.
Meddings Compact variable Drill

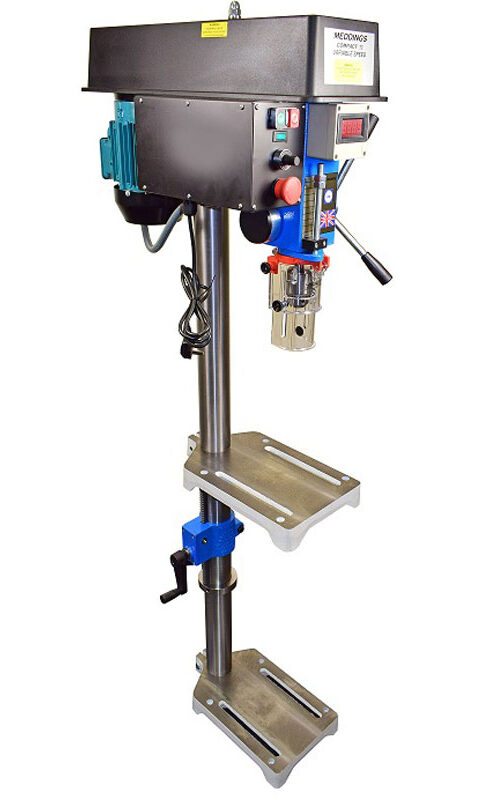

| COMPACT VARIABLE SPEED FLOOR Mounted Drilling Machine 13mm drilling capacity in mild steel. Equipped with; 1-13mm chuck, chuck guard, 1.1 kW motor giving variable speeds from 300 to 3,000rpm, table raising safety mechanism, no volt starter and operator tool kit |
| COMPACT BENCH Mounted Drilling Machine as Floor Machine but supplied with Head Raising, Safety Mechanism in lieu of an intermediate work table. |
Meddings Compact drill range
Specification |
Bench drill & Pedestal Drill Models |
| Drilling capacity in Mild Steel | 13mm |
| Motor | 1.1kW Variable |
| Spindle | JT6 |
| Drive | Belt, stepless pully |
| Spindle speeds rpm 50Hz | 300-3000 |
| Spindle travel | 100mm |
| Throat depth | 194mm |
| Column diameter | 70mm |
| Table – working surface | 230 x 280mm |
| Table – slots width & centres | 14 x 150mm |
| Base – overall | 235 x 409mm |
| Base – working surface | 235 x 295mm |
| Base – slots width & centres | 14 x 150mm |
| Max. distance chuck to table | |
| Bench | n/a |
| Floor | 1077mm |
| Max distance chuck to base | |
| Bench | 294mm |
| Floor | 1258mm |
| Overall height | |
| Bench | 815mm |
| Floor | 1577mm |
| Approx. nett weight | |
| Bench | 47kg |
| Floor | 62kg |
Meddings Compact Drill UK
Some other drilling machine options here:
https://www.rk-int.com/machine/meddings-im18-pedestal-drilling-machines/
Price:
£ P.O.A
Details:
- Condition : new
