Education Meddings L2 Series Drilling Machines


Education MEDDINGS drill presses are supplied into many training facilities around the world because of their quality, durability and safety features. Training Engineers for the future, requires the best drilling machines on the market.

Education Meddings L2 Series Drilling Machines. These are 23mm capacity drills suitable for training schools or colleges.


Education Meddings L2 Series Drills
Drilling capacity in Mild Steel 23mm
Motor 0.45kW/0.75kw (2 speed)
Spindle 2MT
Drive Belt, stepped pulleys
Spindle speeds rpm 50Hz 200-350-400-600-700-1050-1200-1800-2100-3600
Spindle travel 75mm
Throat depth 185mm
Column diameter 70mm
Table – working surface 250 x 164mm
Table – slots width & centres 13 x 125mm
LB2  LF2
Base – overall 240 x360mm 257 x 523mm
Max. distance chuck to table 330mm 740mm
Overall height 865mm 1710mm
Overall width 280mm 280mm
Overall depth 600mm 600mm
Approx. nett weight 84kg 140kg

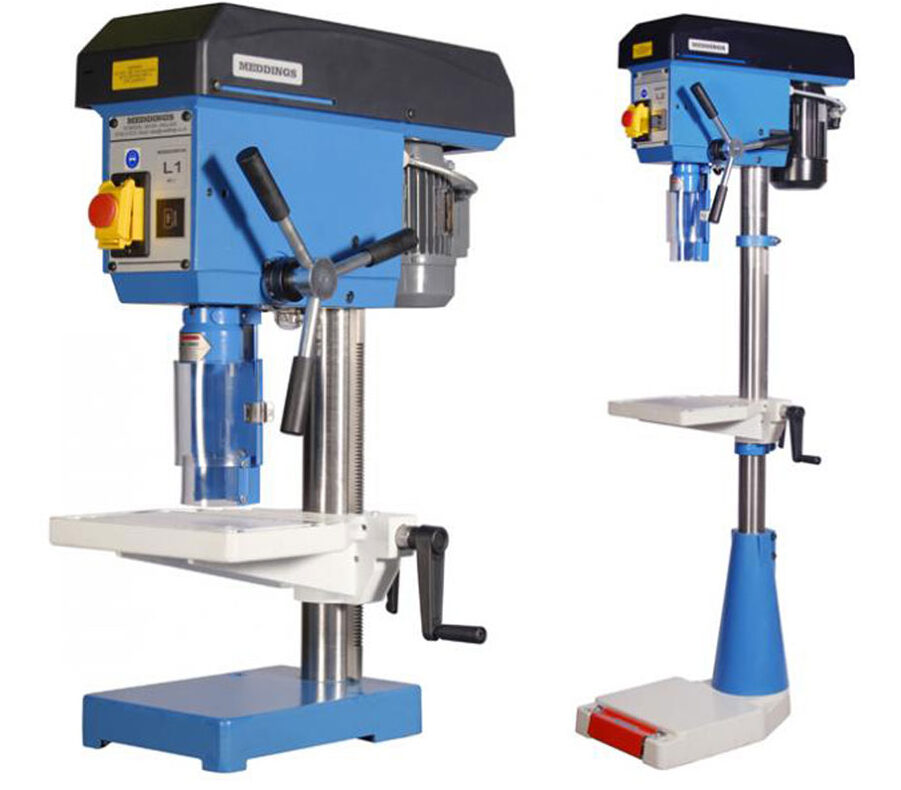

Meddings L2 Series drilling machines.

Education Meddings L Series Drilling Machines UK
