Macc 350S Semi Automatic Circular Saw

Description

Macc New 350S Semi automatic circular saw for industrial sawing of steels, stainless steels, plastics and aluminium. Available with optional foot pedal control and 20/40 rpm motor. UK stock of industrial chop saws.

Macc NEW 350S Semi Automatic Circular Saw

The Macc Saw range has been very popular in the UK market for over 30 years. This Macc New 350S Circular Saw is a widely used semi automatic saw in place of Brown 300 SA machines. Slower speed range for lots of Stainless Steel cutting, otherwise the 40/80 rpm model is the better option.

Macc New 350S Circular Saw is the perfect industrial semi automatic chop saw for steel and stainless steel cutting.

Please Note:                      Compressed air will be required to operate this machine

Technical Data:

Macc 350S semi automatic chop saw

• Movable head 45° left and 45° right
• Reduction unit in oil bath
• Double hinged pin with eccentric bush
• Head rotation stops 45° - 0° - 45°
• Adjustable stops for head stroke
• Double vice
• 0,035 kW Power - driven pump for band cooling
• Coolant filter
• Jet separation system to keep the blade oiled
• Sliding countervice
• Bar support arm
• Bar stop
• Steel pedestal
• Service tools
• Instruction manual and spare parts
• Operation:
  The machine performs the following operations during the cutting cycle:
  1. vice closing and activation of blade motor
  2. cutting head downstroke
  3. return of head to initial position and blade motor stop
  4. vice opening
• Overall dimensions : 1475 mm x 1000 mm x 1200 mm

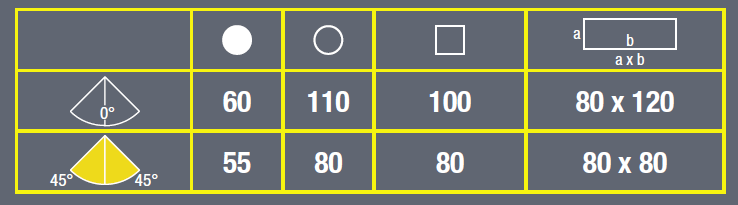

Macc New 350S capacities UK

Macc New 350S Semi Automatic Cutting
