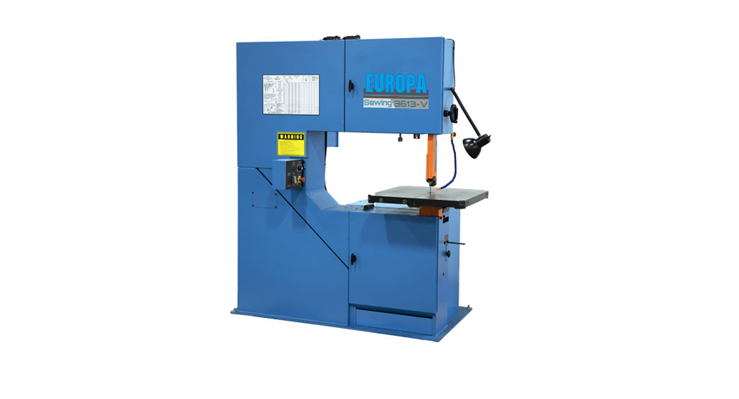

Europa 3613-V3 Vertical Bandsaw

Description

Europa 3613-V is a heavy duty vertical bandsaw to cut all metals and materials. This has a large throat and variable speed drive through and inverter.

MACHINE SPECIFICATION Europa 3613-V3 Vertical Bandsaw
Unitized frame arc welded steel
Throat: band to column 915mm
Max. work height 330mm
Band width capacity 3 to 27mm
Saw band length 5055mm
Table 660 x 660mm
Table tilt 45° r, 10° l.
Table height 955mm
Var. tool speed 10-100 / 170-1675m/min
Wheels aluminium with crowned
rubber tyres
Upper wheel adjustment 50mm
Floor area 990 x 2045mm
Height, maximum 2065mm
Color Blue

ELECTRICAL EQUIPMENT

Electric’s according to CE directives.
Drive motor 2,2kW; 1500 rpm (50 Hz)
Standard electrics 400 V, 50 Hz, 3 Phase



STANDARD EQUIPMENT

One set of high-speed, insert type guide-blocks for bands 3 through 13mm
One set of steel guide inserts for bands 6, 10, and 13mm
Job selector
Band speed indicator reading in m/min
Band tension indicator
Dual range transmission
Post elevating hand wheel
Chip blower

Variable frequency AC drive

(which provides variable band speeds, soft start and dynamic brake functions)

Removable chip drawer
Transmission oil
Wrench for table trunnion
Wrench for saw guides
Operation and service manual, digital
One Bimetal saw band
Band door interlocks

Europa 3613-V3 vertical bandsaw is a heavy duty machine with a huge speed range covering all materials. Massive 915mm throat to work with larger sheets / materials.



Europa 3613-V Vertical Bandsaw Range from RK International

Europa 3613-V Vertical Bandsaw Range from RK International

Some other vertical bandsaws for steel or softer products:

Europa 2013 V Vertical Bandsaws

Astro 3612-V3E Vertical Bandsaw with feeding table



    Price:
    £ P.O.A
    Details:
    • Condition : new
    Call Now 01322 447611
