Description

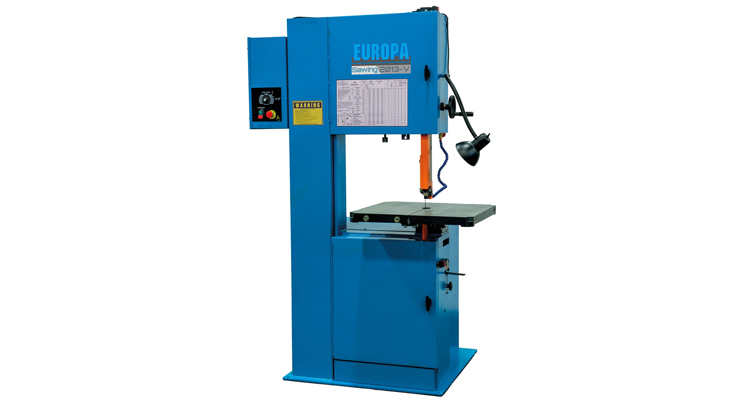

Europa 2013 V Vertical Bandsaw. High quality, inverter controlled industrial bandsaw for cutting all materials. Dynamic braking for a fast shutdown of the drive motors. Various blade options are available depending on blade speed applications and metals or composites be cut. Safe braking systems to comply with CE.
MACHINE SPECIFICATION |
Europa 2013 V Vertical Bandsaws |
| Unitized frame | arc welded steel |
| Throat: band to column | 508mm |
| Max. work height | 330mm |
| Band width capacity | |
| Model: V2 | 1,5 to 27mm |
| Model: V3 | 3 to 27mm |
| Saw band length | 3910mm |
| Table | 660 x 660mm |
| Table tilt | 45° r, 10° l. |
| Var. tool speed | 10-100 / 170-1675m/min |
| Wheels | aluminium with crowned rubber tyres |
| Upper wheel adjustment | 75mm |
| Table height | 995 mm |
| Color | Blue |
ELECTRICAL EQUIPMENT |
|
| Electric’s according to CE directives. | |
| Drive motor | |
| Model: V2 | 1,5 kW; 1.500 rpm (50 Hz) |
| Model: V3 | 2,2kW; 1500 rpm (50 Hz) |
| Standard electrics | 400 V, 50 Hz, 3 Phase |
STANDARD EQUIPMENT |
| One set of high-speed, insert type guide-blocks for bands 3 through 13mm |
| One set of steel guide inserts for bands 6, 10, and 13mm |
| Job selector |
| Band speed indicator |
| Removable chip pan |
| Band tension indicator |
| Chip blower (requires plant air) |
| Post elevating hand wheel |
| Variable speed AC Drive (controls speeds, soft start and dynamic brake functions) |
| Dual range transmission |
| Transmission oil |
| Wrench for table trunnion (for Models: V3) |
| Wrench for saw guides (for Models: V3) |
| Tool kit |
| Instruction and parts manual (digital) |
| One Bimetal saw band |
| Band door interlocks |
Europa 2013 Vertical Bandsaws - Doall produced machines.
Europa 2013-v Vertical Bandsaw range
Other options available:
Price:
£ P.O.A
Details:
- Condition : new
