Description
Industrial pedestal drill with electronic variable speed with OLED screen. Easy control of spindle speed and tapping control.
SPECIFICATION |
Flott SB18 Plus Drill |
| Continuous / normal drilling capacity (mm) | 18/20 (in E335 / ST60) |
| Thread cutting performance (depending on the pitch) | M12 |
| spindle | MK II |
| Drilling depth (mm) | 100mm |
| Throat (mm) | 240mm |
| Column diameter (mm) | 82mm |
| Usable working area (W x L) (mm) | 340 x 280mm |
| T-slot size (arm), distance , dimension width | Number 2, 125mm, 13/26mm |
| RPM display | Digital |
| Drilling depth display | Digital |
| Drilling depth stop | quickly adjustable stop ring |
| Feed (mm / revolution) | by hand |
| Table height adjustment | with rack |
| Three-phase motor - frequency-controlled, mains connection 230 V | 0.75 |
| Infinitely variable spindle speeds (1 / min) | 30-3000 |
| Spindle / work surface | 160-880mm |
| Machine dimensions without packaging | 355 x 705 x 1825mm |
| Machine dimensions with packaging | 572 x 936 x 2142mm |
| Weight | 195kg |
SUPPLIED WITH: |
| Thread cutting device |

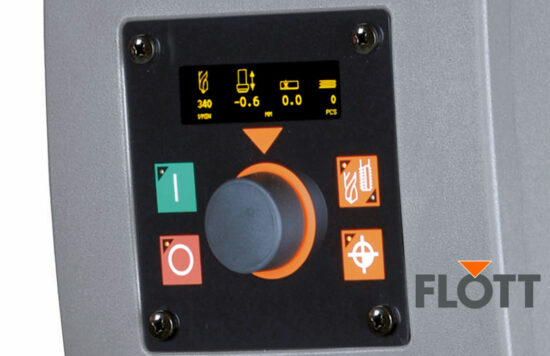

| Control panel with OLED display |
| Robust, high-quality drill head cover with an ergonomically inclined front |
| LED lighting |
| Quickly adjustable and ergonomic drilling depth stop |
| Infinitely variable speed control via central rotary knob |
| EMERGENCY STOP button |
| Thermal overload protection |
| Spindle stop |
| Drill protection with electr. validation |
| Connection cable with Schuko plug |
| 3 year guarantee for single shift operation |
Price:
£ P.O.A
Details:
- Condition : new
