Arboga A3008 Series Power Feed Geared Head Drilling Machines


With a 30mm drilling capacity, the ARBOGA A3008 Series of floor mounted drilling machines deliver high torque drilling through a gearbox drive. The drill head and table are adjustable and along with be raised and lowered, they can be rotated 360° around the column. The Arboga A3008M model features powerfeed where the drill will retract once the drill depth has been reached.


Arboga A3008 Series
Drilling capacity 30mm
Quill movement 150mm
Tapping capacity (steel, cast iron) M18 / M22
Morse taper MT3
Motor power (50Hz) 0,90kW / 1,2kW
Spindle speed (50Hz) 75-160-265-440-535-890-1490-3010
Feed speed (mm/inch) 0,10/0,0004-0,15/0,006-0,22/0,009-0,30/0,012
Size of table 500 x 400mm
Electrics 400V / 3 ph / 50Hz
Weight 190kg


Electrically interlocked spindle guard
TONVR starter
Drill head has rise/fall adjustment and can be rotateed 360 degrees about the column

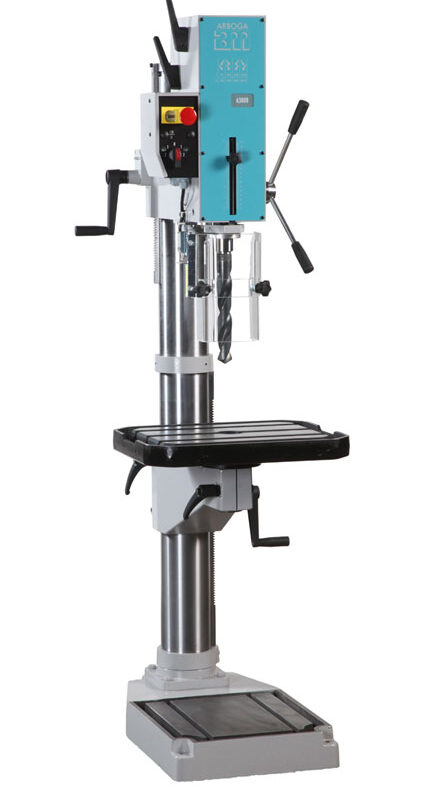

Arboga A3008 Series drilling machines

Arboga A3008 Series Gear Head Drilling Machines


Other Geared Head Drilling Machines:

Arboga A3808 Series Drilling Machines

Arboga A4008 Series Geared Head Drilling Machines
