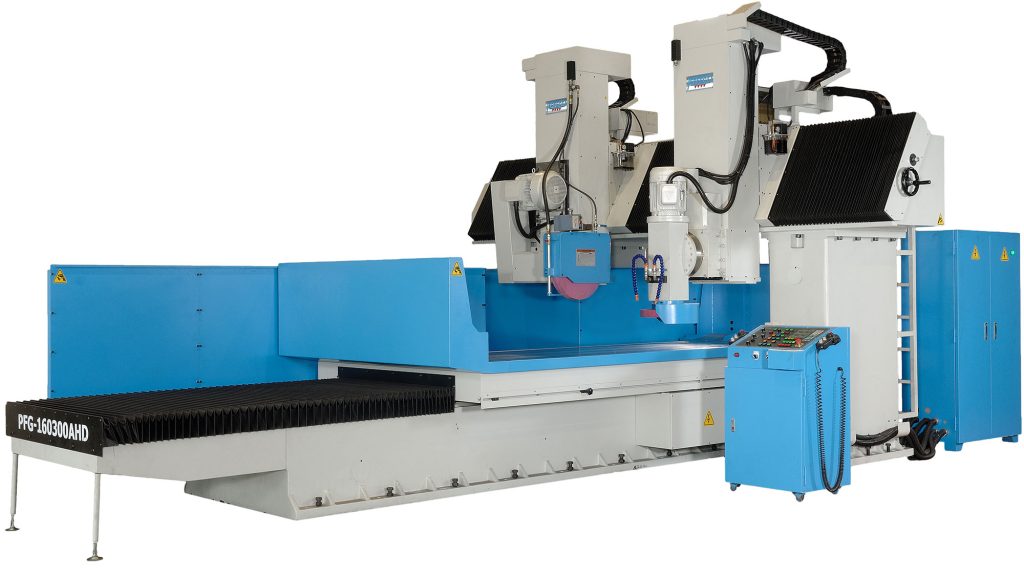

Perfect PFG-120300 AHD & PFG-160300 AHD Series Double Column Type Surface Grinders


The PERFECT double column surface grinder is designed with slant beam construction. This provides outstanding load distribution on the entire beam surface, assuring maximum stability during heavy’ duly grinding. Double Column Series are longitudinal by hydraulic, cross feed axis and vertical axis by AC servo motors. The beam surface Is equipped with two heavy duty linear guide ways with great span for extra smooth movement and high rigidity. The vertical axis is equipped with high precision linear guide ways combined with high precision ball screw transmission, assuring outstanding feed accuracy and maximum stability.


Double Column Type Surface Grinders
Table size / max grinding surface 1200 x 3000mm
1600 x 3000mm
Max distance: centre spindle to table 1000mm
Option 1200mm
Power cross feed approx. 3000mm/min
Auto cross feed increment 0.1mm to 35mm
Table speed 3 - 25m/min

Double Column Type Surface Grinders

Machine equipped with:-

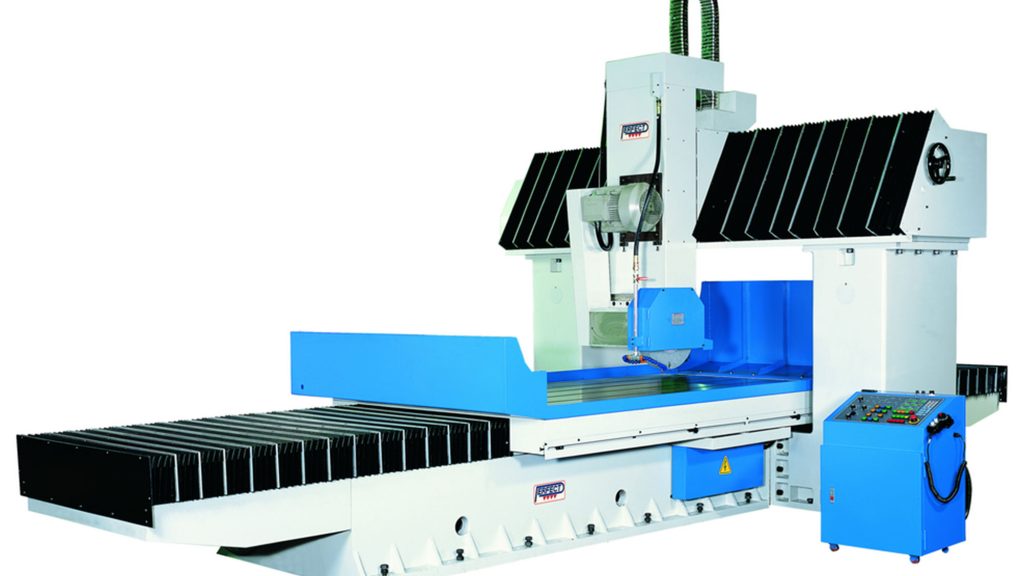

Double column / portal type construction
Y & Z axis : driven by AC servo motor with MPG
Y & Z axis : linear guide way & ballscrew construction
Z axis : SVPV - Stepless Variabel Proportional Valve hydraulic system with Turcite B
Auto down feed - AD5 NC
Electro parallel dresser
Hydraulic oil air chiller
Spindle motor inverter - 20 HP




    £ P.O.A
    • Condition : new
