        Machine overview

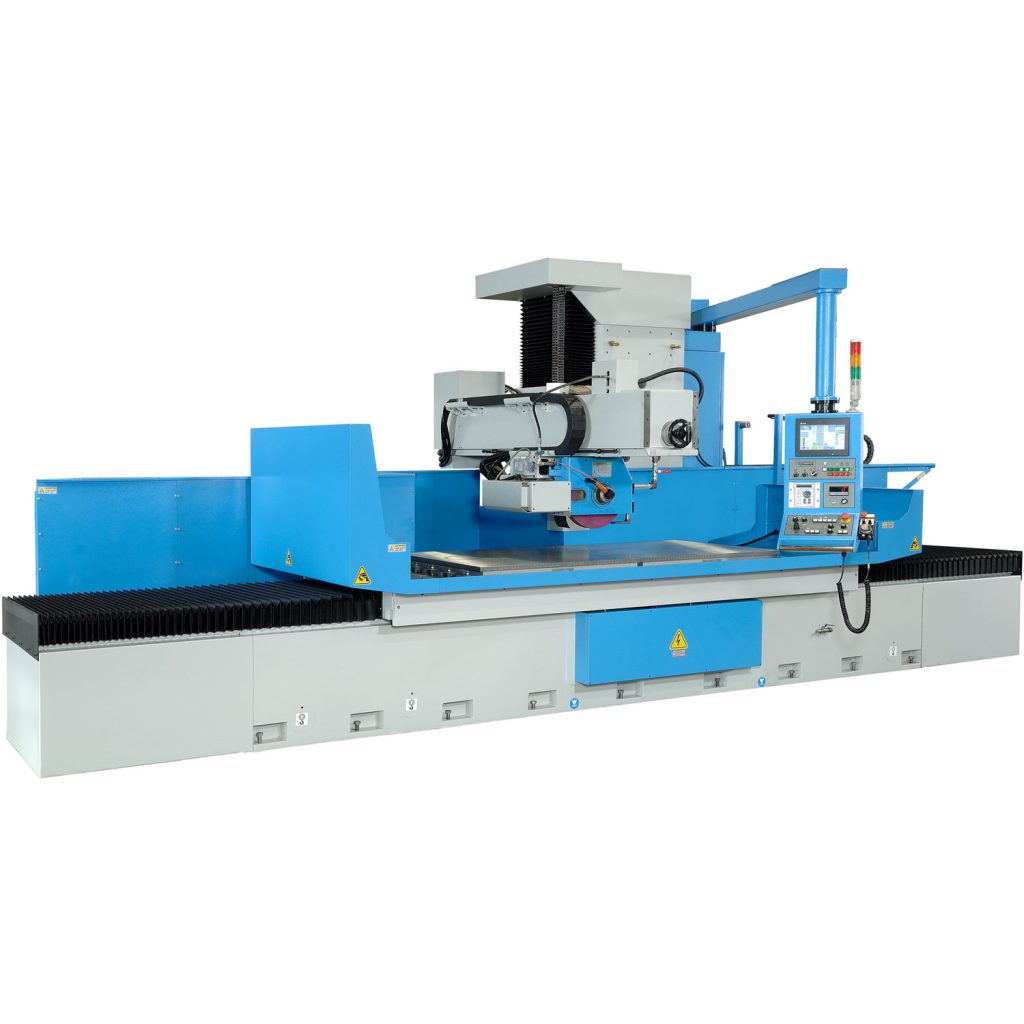

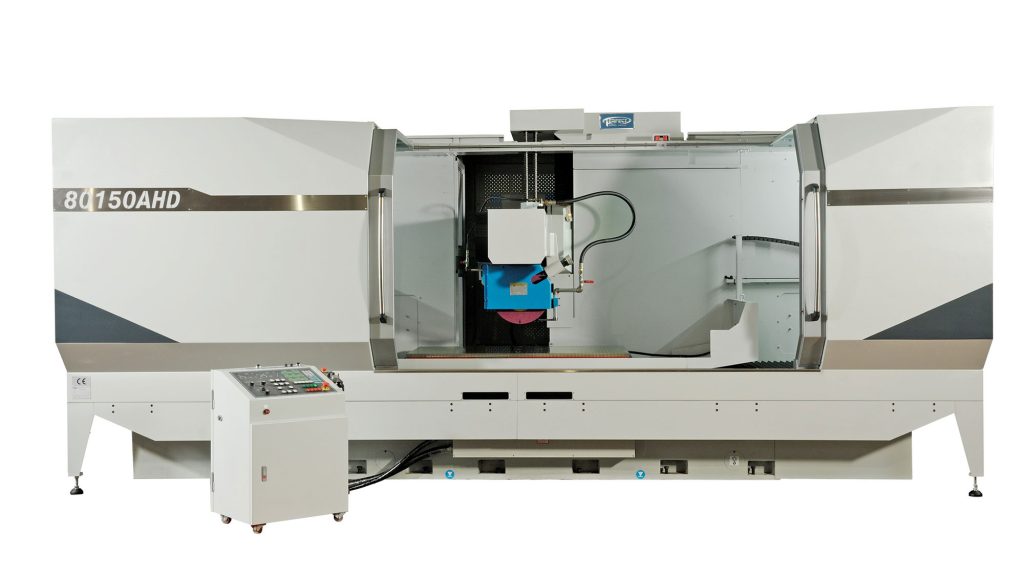

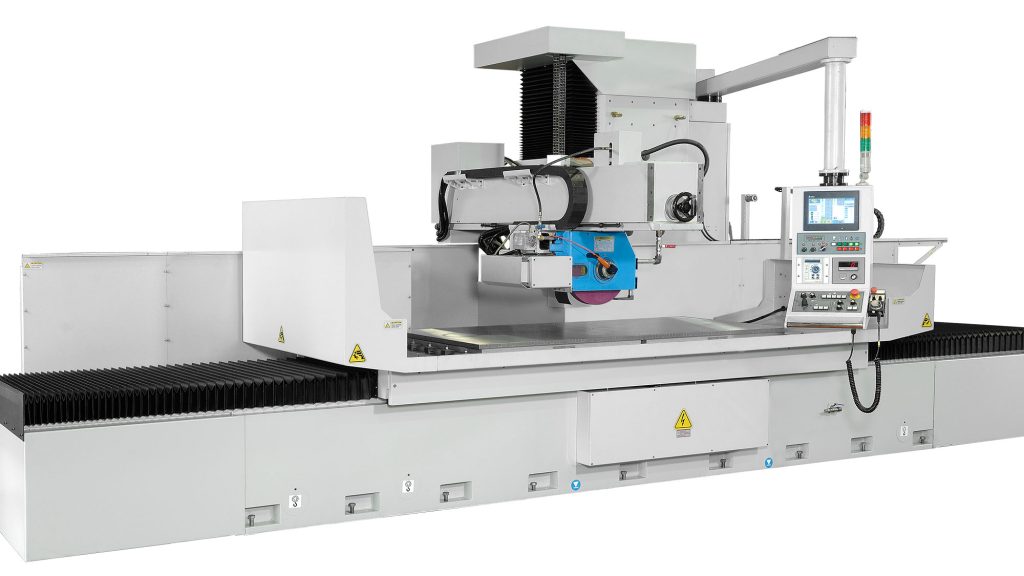

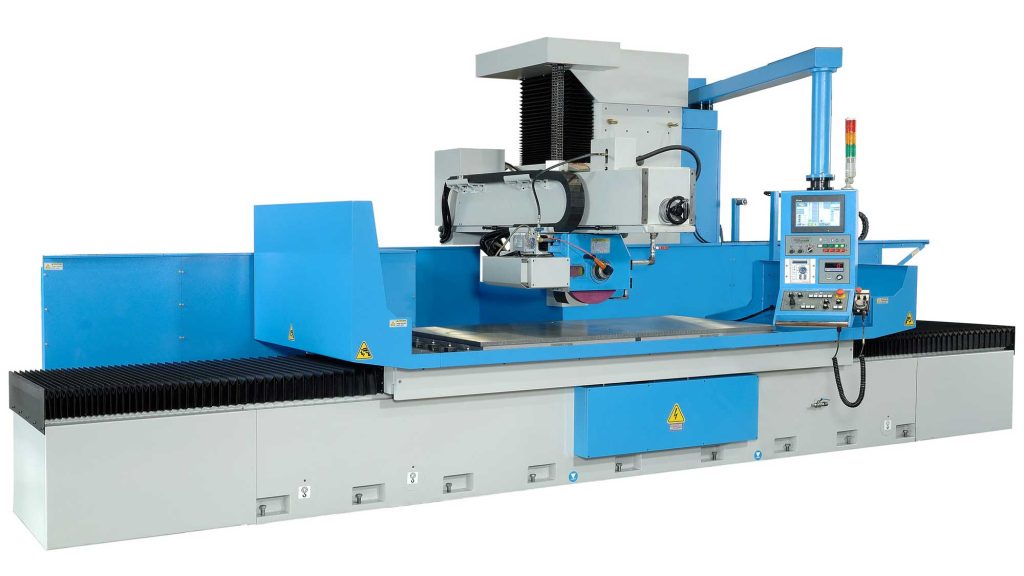

        The Perfect PFG range of cantilever type surface grinders starts with the PFG80150AHD (800mm x 1500mm table) and finishes with the PFG 100400AHD model (1000mm x 4000mm table). The range can be controlled by different levels of automation.

        • AHR Series have auto cross feed by solid state relay, longitudinal by hydraulic and vertical axis by AC servo motor.
        • ADP series is LCD touch screen panel (HMI Interface) and PLC controller. Cross & Vertical feed for Column type is by ball screw and driven by AC servo Motor, and MPG hand wheel.Auto dressing and compensation (Diamond dresser on the table) & Semi Enclosed Splash Shield (Right side open) are standard.
        • DT series is also touch screen panel with Auto cross feed, Longitudinal by sensor & solenoid valve, continuous lubrication and Back water splash shield, auto down feed are standard

        Specification

        Condition New
        Model PFG-80150AHD [800 x 1500mm], PFG-100150AHD [1000 x 1500mm], PFG-80200AHD [800 x 2000mm], PFG-100200AHD [1000 x 2000mm], PFG-80300AHD [800 x 3000mm], PFG-100300AHD [1000 x 3000mm], PFG-80400AHD [800 x 4000mm], PFG-100400AHD [1000 x 4000mm]
        Maximum grindable surface 800 x 1500mm, 1000 x 1500mm, 800 x 2000mm, 1000 x 2000mm, 800 x 3000mm, 1000 x 3000mm, 800 x 4000mm, 1000 x 4000mm
        Maximum distance between spindle centre and table 800mm (1000mm option)
        Spindle speed 1450rpm
        Wheel size 405 x 50 x 127mm
        Spindle motor 10Hp (Optional 15Hp Available)
