HM Machinery MB S Series Folding Machines, Segmented Blade

Description

Hand-operated, manual folders with segments: With interchangeable clamping beams, the MB S range of hand-operated manual folders offer capacities between 650 – 2000mm, with either upright clamp beams, for tall narrow sections, sharp nose blade for wider sections, or segmented beams for box & pan work.

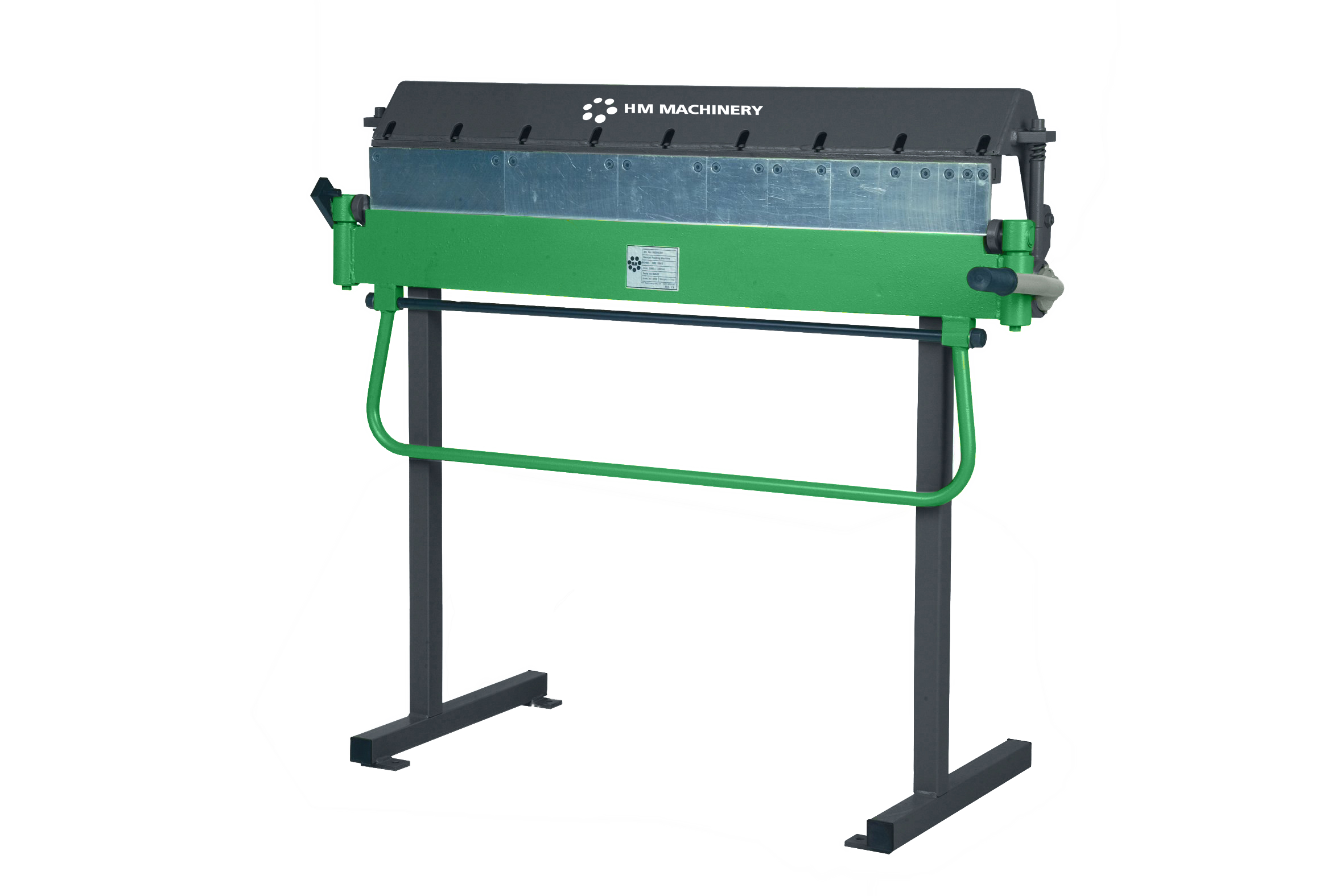

HM Machinery MB S Series with segmented blade for box and pan work.

Specifications

Model MB 700S
Working length 650mm
Sheet thickness 1.50mm
Maximum opening 42mm
Folding angle 95 degrees
Measurements (L x W x H) 860 x 510 x 1070mm
Weight 78kg
  Model MB 1000S
Working length 1050mm
Sheet thickness 1.25mm
Maximum opening 35mm
Folding angle 95 degrees
Measurements (L x W x H) 1260 x 510 x 1070mm
Weight 111kg

Model MB 1300S
Working length 1350mm
Sheet thickness 1.20mm
Maximum opening 35mm
Folding angle 95 degrees
Measurements (L x W x H) 1560 x 510 x 1070mm
Weight 135kg

HM Machinery MB S Series Segmented folder. Box and pan folder range.

HM MB S Series Box & PPan Folders



Other HM Machinery available:

HM JBS Power Shear Range with Motorised Back Gauge

HM Machinery TAS Series Belt Grinders with two point Integrated Dust Extraction

    Price:
    £ P.O.A
