        MACC Special 280CSO Bandsaw

        MACC Special 280CSO Bandsaw

        Jump to

        MACC Special 280CSO Bandsaw

        Additional information

        Condition

        Manufacturer

        Machine overview

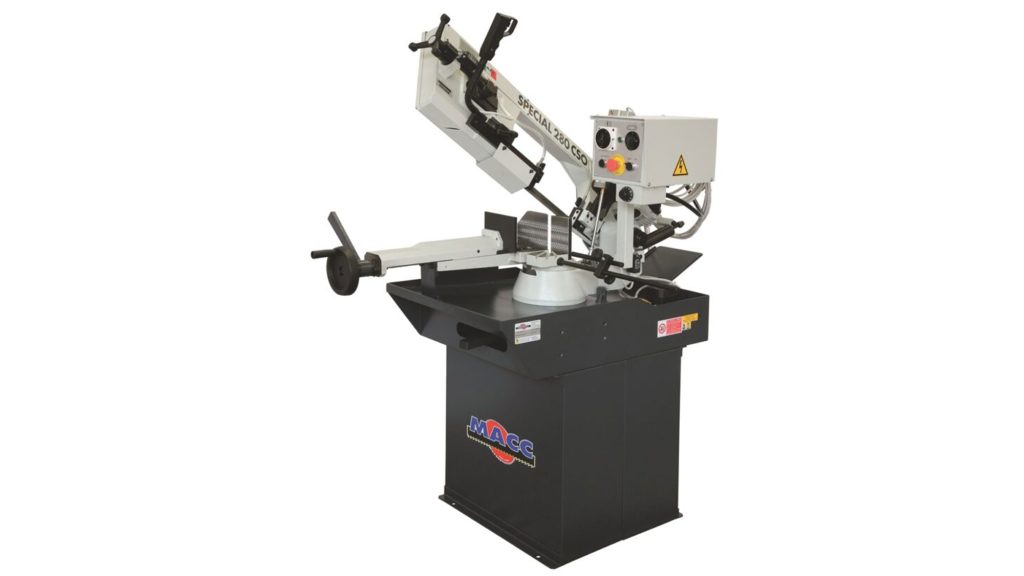

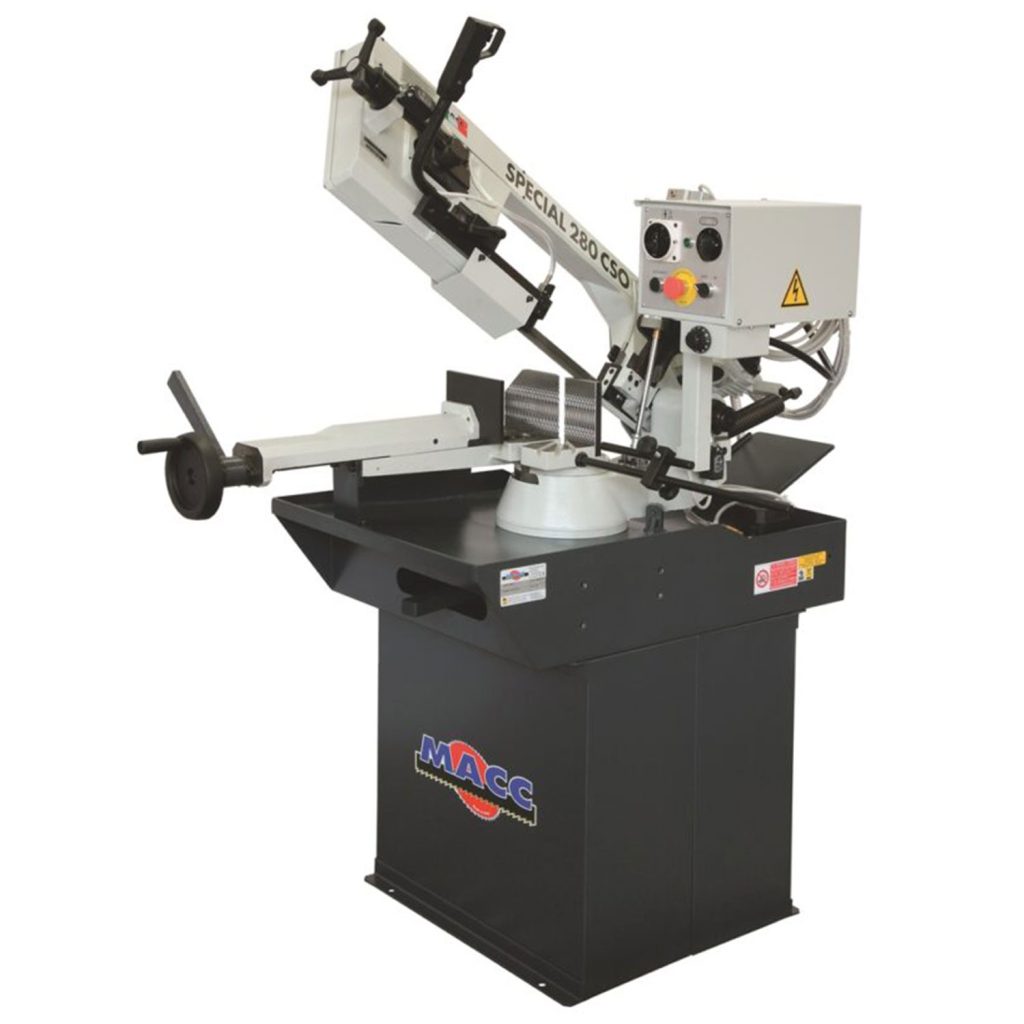

        Macc Special 280CSO Single Mitre manual / gravity feed bandsaw for quick and easy cutting of metal solids or sections.

        • Sawing machine with bow descent controlled by a hydraulic circuit.
        • Vertical rotation on bolt with adjustable tapered bearings without backlash.
        • High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw
        • Appropriately dimensioned flywheels.
        • Strong band guides with tight stress-raiser bearings and adjustable widia tips
        • Vice with a device for swift locking by eccentric means
        • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
        • Cutting thickness 1,2 mm
        • Adjustable stop for cuts of the same size
        • 24 V low tension plant
        • Cutting range 0°-60° right
        • 0,06 kW power-driven pump for band cooling

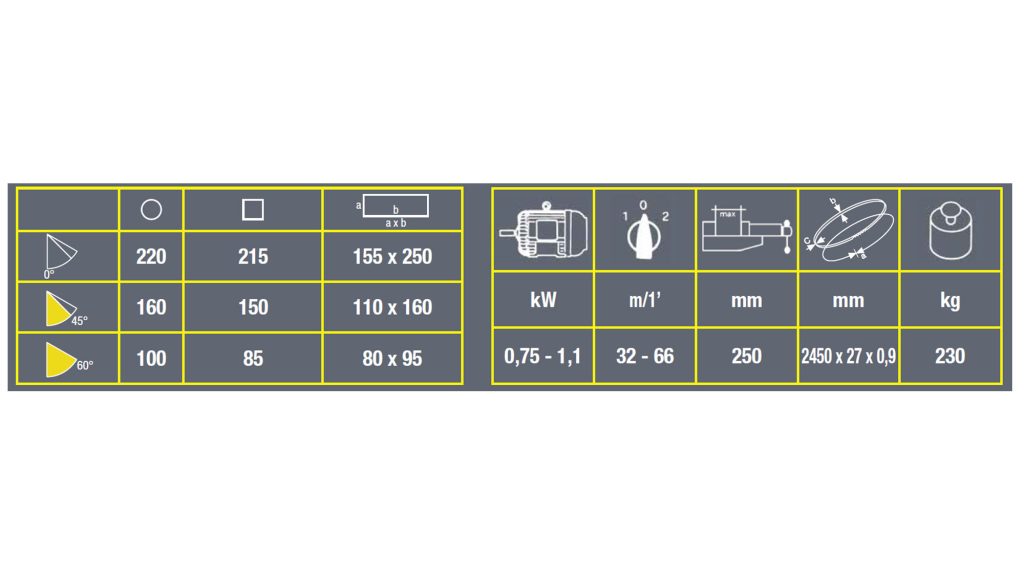

        Specification

        Condition New
        Model Macc Special 280M Bandsaw
        Diameter capacity (90º) 220mm Round / 215mm Square
        Section capacity (90º) 155 x 250mm
        Mitre capacity 0-60 degrees
        Section capacity at 45º 110 x 160mm
        Blade speed range 32-66 m/min
        Motor Power 1.1 Kw (400v, 3phase)
