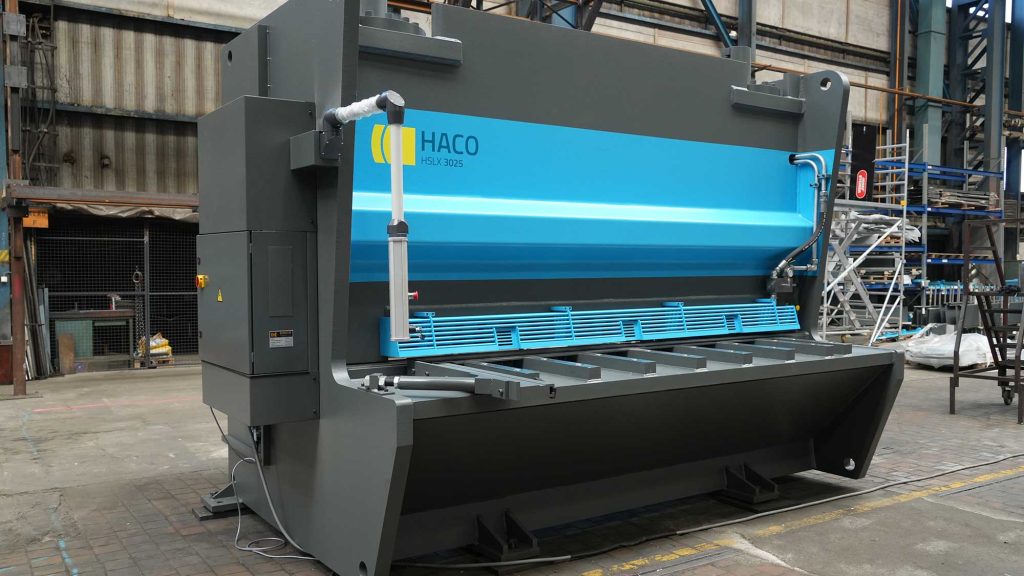

HSLX HD Series 1
Cutting lengths 5020 and 6020 mm, and cutting capacities from 6 to 16mm.
HSLX HD Series 2
Cutting lengths from 2020 to 6020 mm and cutting capacities of 20 – 25 – 32mm, with the HACO HSLX-HD 6032 weighing in at 84,000kgs!
Intuitive control:
The HACO SC200 Control fits all requirements for sheet cutting operations that require the highest accuracy and minimum time-loss. Creating a program requires only a few actions. The program parameters include: back gauge position, cutting time, sheet thickness, blade angle & blade gap setting. The blade gap adjustment is done electro-hydraulic.
Equipment
- Control SC200 control with LCD display, touchscreen and keyboard

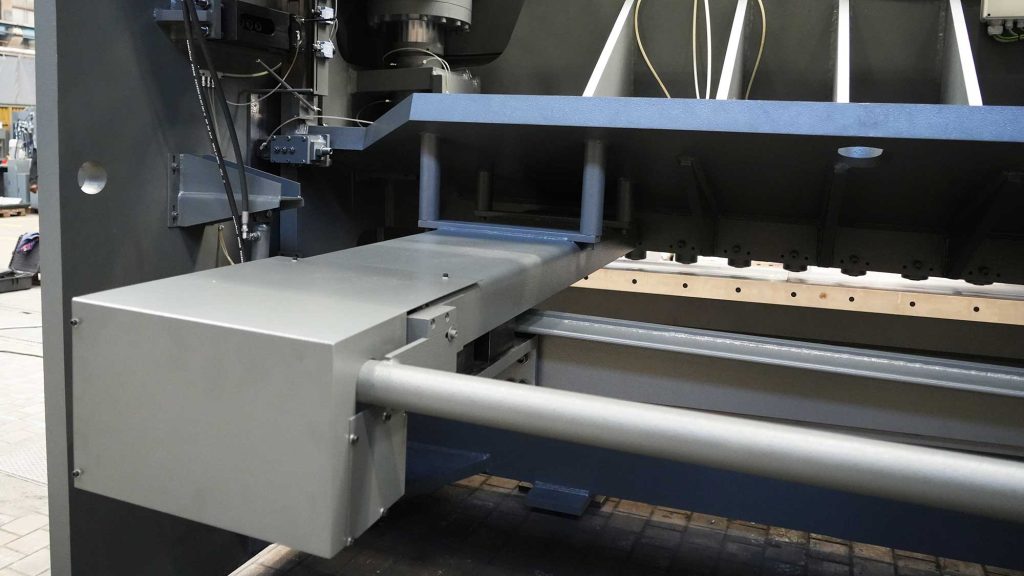

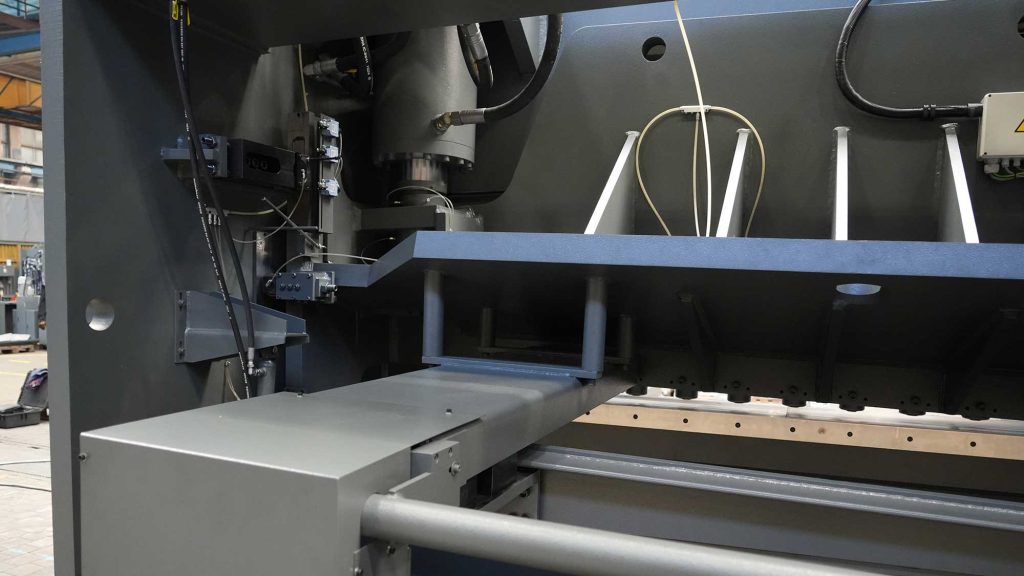

- Backgauge 2 rigids arms, assuring a precise postioning of the sheet

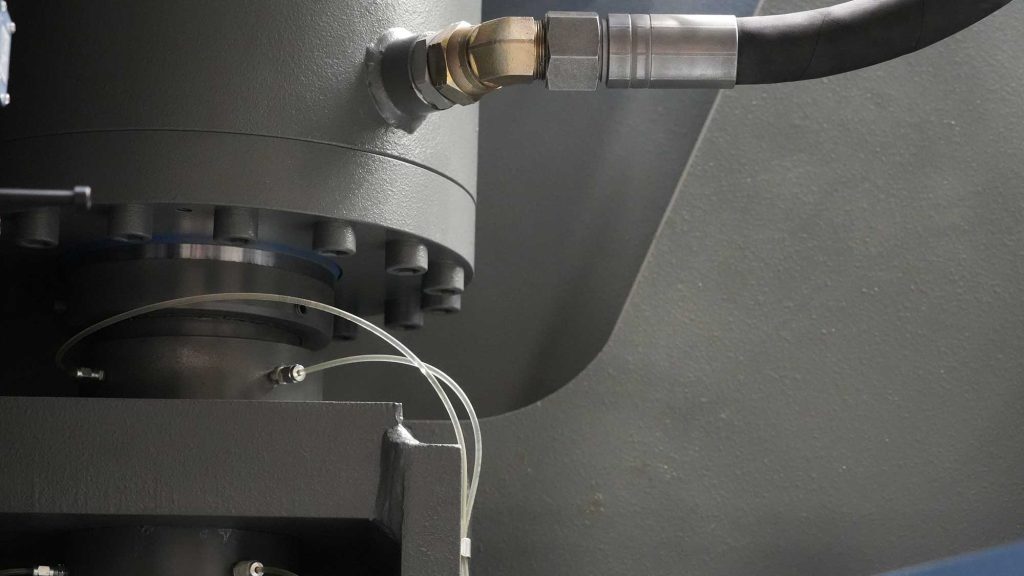

- 2 overhead push cylinders and nitrogen accumulator for faster ram uplift.
- Squaring arm of 1000 mm with scale, T-slot and tilling stop
- Iron square plate support blocks with ball transfers
Optional equipment
- Hydraulic sheet support system
- SBS (= ‘Sheet back to Sender’)
- Hydraulische SUB (= ‘Swing-Up Backgauge’)
- Optical finger protection
- Hand Safety Guard with safety light curtain
- Full table consisting of segments, with ball transfers for easy feed-in of the sheets
- Squaring arms and front support arms with or without scale, T-slot ,and tilling stop. Lengths from 1000 to 3000 mm per multiple length of 500 mm
- Pendant control arm
- Protractor for angle shearing
Find out more: Contact RK International or visit the HACO website > https://www.haco.com/en/sheet-metal
