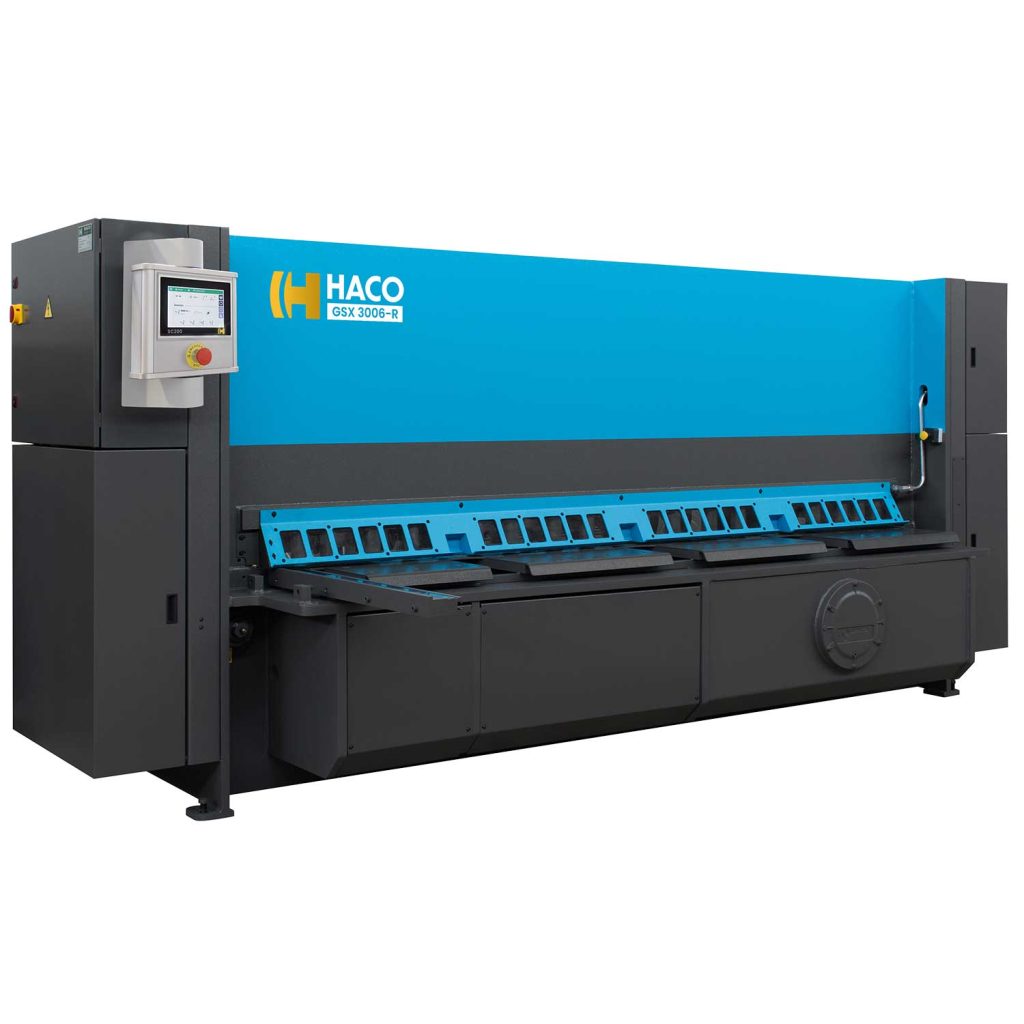

        HACO’s GSX Series hydraulic guillotine shears showcase their enduring legacy. They deliver exceptionally designed and highly efficient machinery. HACO focuses on high quality, precision, and innovation. The GSX range meets the rigorous demands of modern production environments.

        Machine options

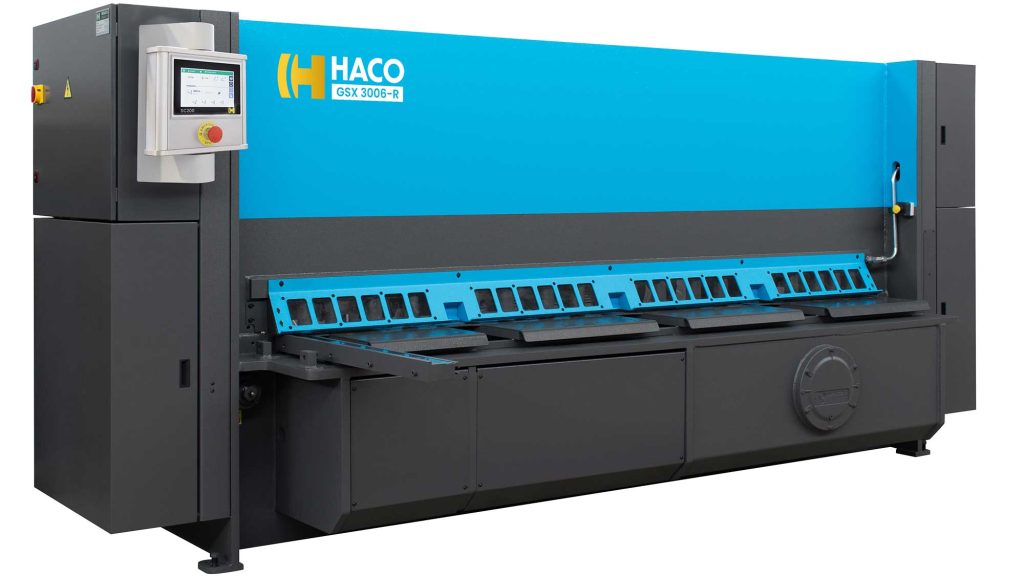

        Machine overview

        Hydraulics and Mechanism

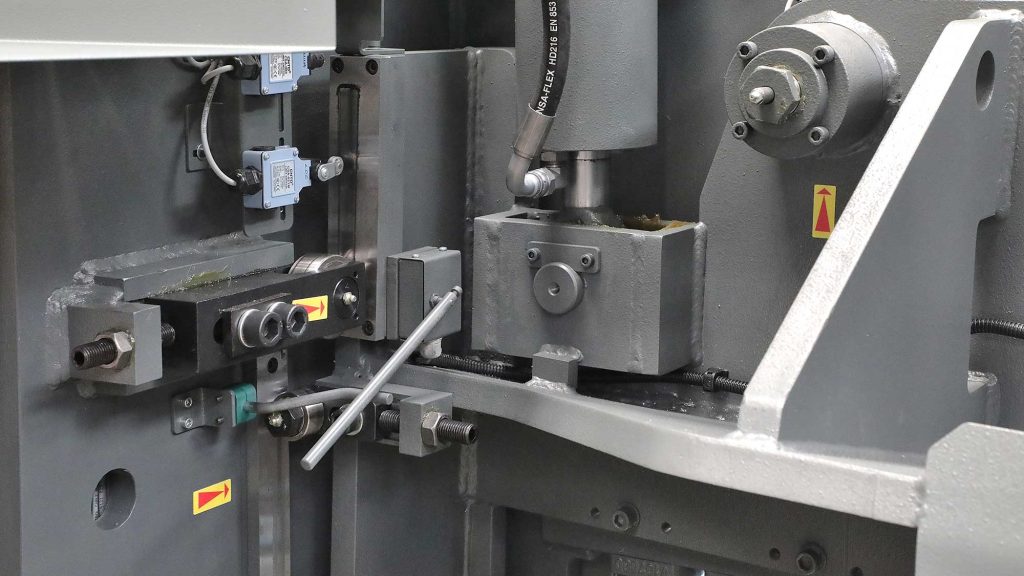

        HACO GSX Guillotine shear range features a distinctive drive mechanism. Top-mounted cylinders power these shears. The hydraulic system ensures reliability and control. It includes a motor pump group and a multifunction manifold block. You easily access these at the machine’s side. Flexible hoses connect cylinders, hold-downs, and pumps. Two high-pressure relief valves protect hold-downs. They also protect the cutting cycle from overload. An oversized oil tank facilitates trouble-free, high-production shearing. The ram’s parallelism control uses a differential principle. Roller bearings guide the beam on hardened ways. This contributes to precise operation.

        Control System:

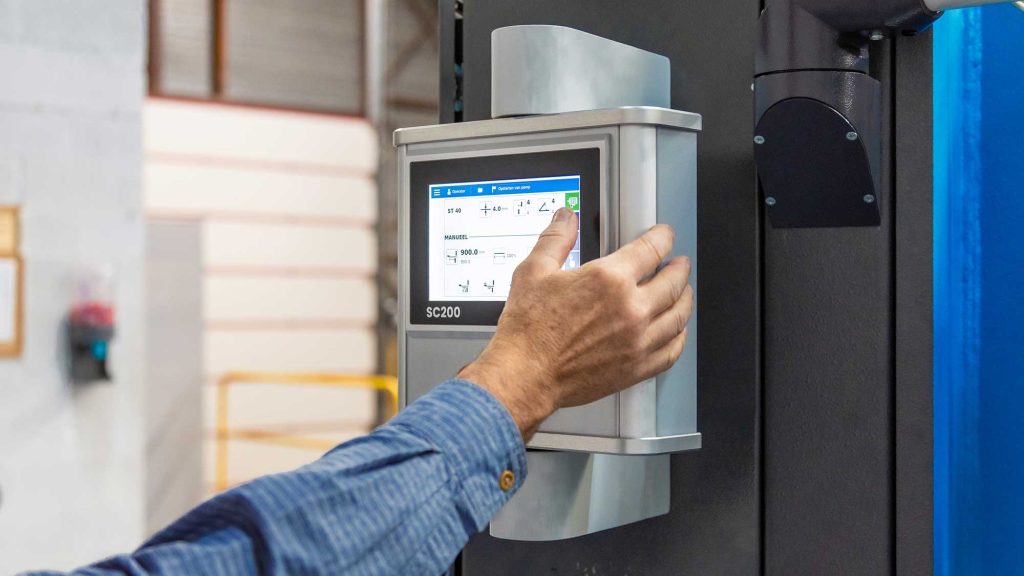

        HACO equips GSX shears standard with the advanced SC200 controller. This control unit earns praise for its user-friendliness. Notably, it requires no specific training to operate. Its icon-based programming offers clear display architecture. Creating a program is quick and easy. The SC200 provides personalised access codes with different rights. Furthermore, it comes pre-equipped for remote support.

        A key benefit of the SC200 is its automatic setting capabilities. You simply enter the sheet thickness. The control then automatically adjusts the blade gap and cutting angle. This intelligent automation cuts thin materials at a lesser angle. This significantly minimises deformation of the sheared plate. You can, however, manually modify all parameters if needed. Two hydraulic cylinders precisely manage the electro-hydraulic blade gap adjustment.

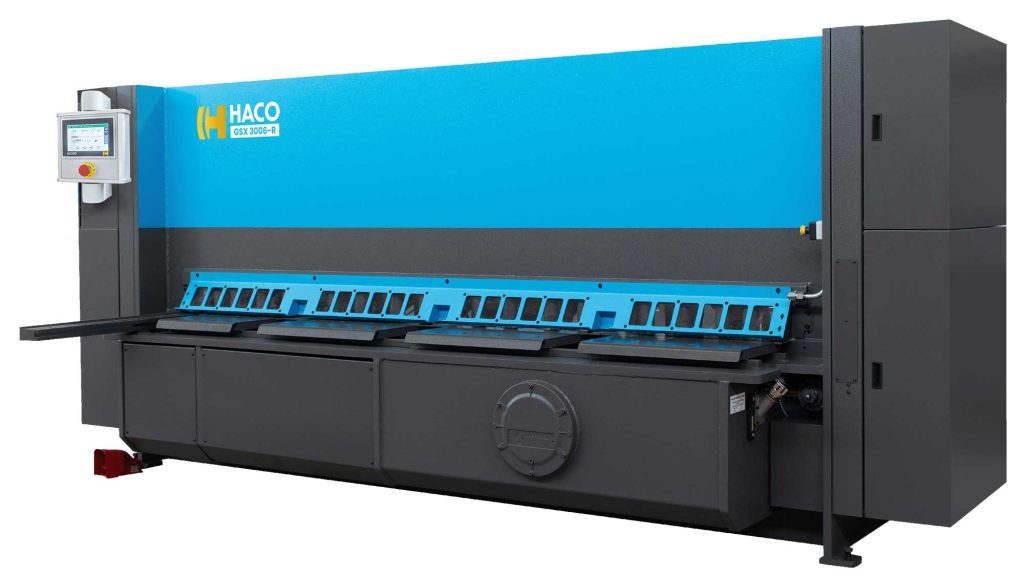

        Material Handling and Operator Interface For material handling, the GSX Series features hydraulic hold-downs. They operate independently of shearing pressure. This allows accurate clamping of plates with varying dimensions. Hold-downs are arranged more closely on both sides. This facilitates cutting small plates without issues. All operator controls are conveniently located. They sit at the left-hand side of the machine. Operators find them within immediate reach. A movable foot pedal control also enhances operational flexibility.

        Backgauge and Production Efficiency :

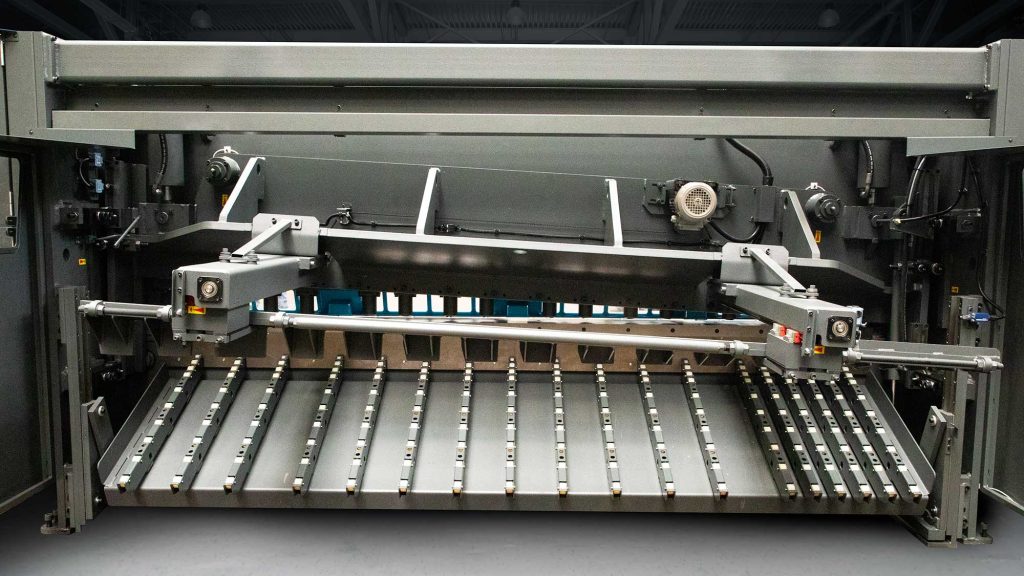

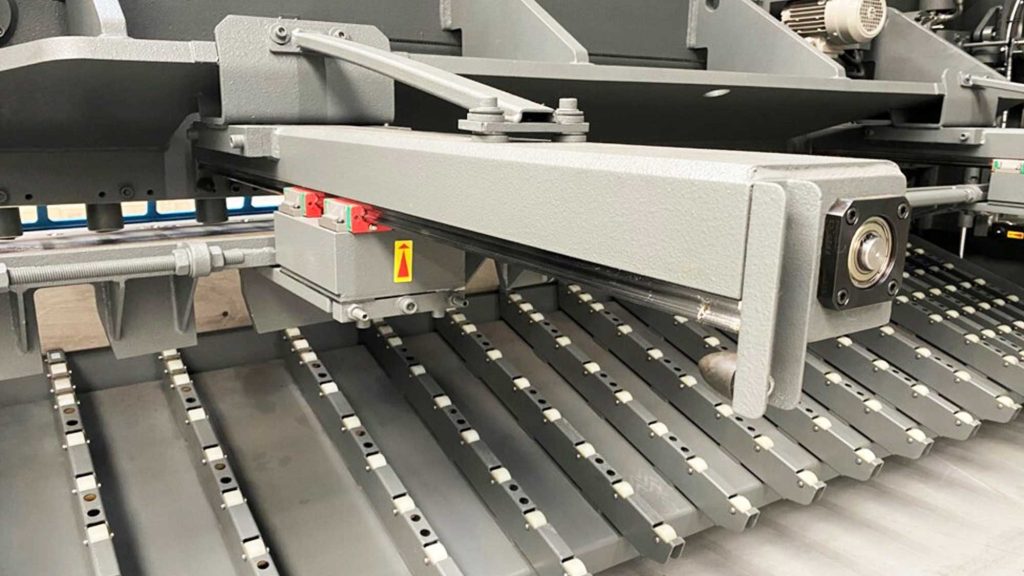

        The motorised backgauge on the GSX Series assures precise sheet positioning. It comprises two rigid arms containing guidings and ball screws. It also includes a parallel adjustable backgauge bar. The SC200 control allows for programmable positioning. A digital read-out displays both actual and programmed positions. Lateral movement from front to back is a standard feature. The powered backgauge typically offers a 1000 mm stroke.

        A unique advantage of the GSX range is its fully open rear side. This provides flexibility for easy material removal. You can also adapt various conveying and stacking systems. This action improves production output. Optional features further enhance production. For example, a hydraulic sheet support system is available. It perfectly gauges thinner sheets. It prevents damage or deformation during cutting. The GSX shears’ all-welded interlocked construction makes the machine virtually indestructible. This ensures exceptional durability.

        Optional equipment

        • Hydraulic sheet support system
        • Sheet Back to Sender functionality (SBS).
        • SAB (= ‘Swing-Away Backgauge’)
        • Optical finger protection
        • Hand Safety Guard with safety light curtain
        • Full table consisting of segments, with ball  transfers for easy feed-in of the sheets
        • Squaring arms and front support arms with or without scale, T-slot ,and length stop. Lengths from 1000 to 3000 mm per  multiple length of 500 mm
        • Pendant control arm
        • Protractor for angle shearing

        Find out more: Contact RK International or visit the HACO website > https://www.haco.com/en/sheet-metal

        Specification

        Model GSX xx06 (6.5mm capacity), GSX xx08 (8mm capacity), GSX xx10 (10mm capacity), GSX xx13 (13mm capacity)
        Condition New
        Cutting Length 2050mm / 2550mm / 3050mm / 3650mm / 4050mm
        Cutting angle 0.5 to 2.5 deg
        Number of plate hold downs 14 - up to 2550mm - 18 - thru to 3050mm - 22 - on 3650mm & 4050mm models
        Backgauge stroke 1000mm
        Control SC200 Control
