Description
PERFECT grinders are manufactured from high quality cast iron combined with an outstanding structural design. Major parts are stress relieved to ensure maximum rigidity, stability and machining accuracy. The X and Z axes slideways on the AH Series are coated with Turcite-B for stable movement and long term accuracy. Machine for education and tertiary establishments.
Specification |
PFG 1545H/AH |
| Table Size | 150 x 450mm |
| Max. grinding surface | 150 x 450mm |
| Max. distance centre of spindle to table | 450mm |
| Table speed | 5 ~ 25m/min |
| Table guideway | V and flat way |
| Auto. cross feed increment approx | Manual (H Model) 0.1mm ~ 12mm |
| Rapid power cross feed approx | Manual (H Model) |
| 110mm/min (60Hz) | |
| 900mm/min (50Hz | |
| Cross feed on hand wheel 1 rev | 5mm |
| Cross feed on hand wheel 1 gra | 0.02mm |
| Rapid power head elevation 60Hz | 550mm/min |
| Rapid power head elevation 50Hz | 450mm/min |
| Vertical feed with MPG 1 rev | 2mm |

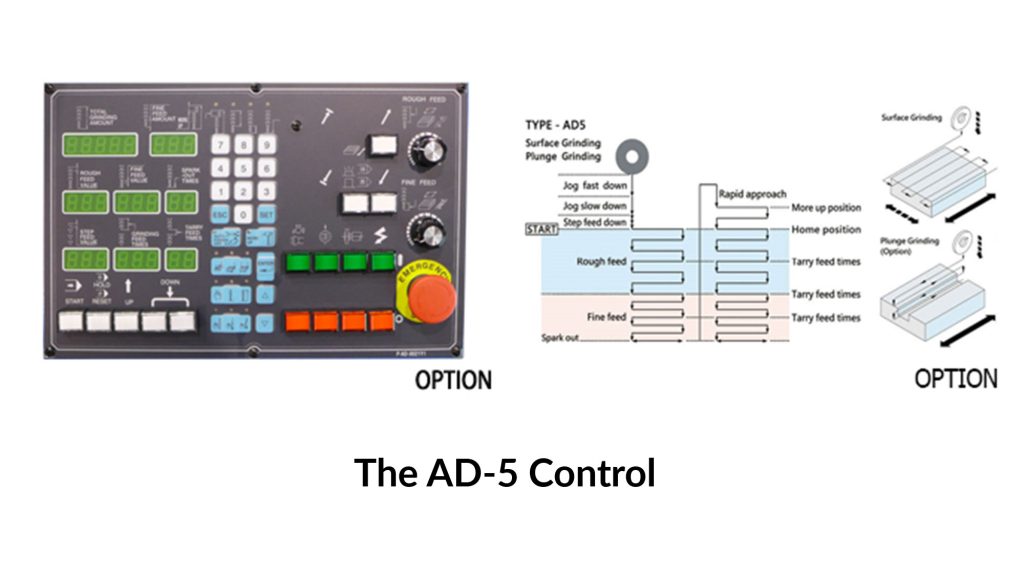

| Vertical feed with MPG 1 gra | 0.01mm (Stand) |
| 0.005mm (with AD5) | |
| Auto downfeed (option) | 0.001mm ~ 0.999mm/time |
| Wheel speed 60Hz/50Hz | 3500rpm (60Hz) |
| 2900rpm (50Hz) | |
| Wheel dimensions | 180 x 13 x 31.75mm |
| (max. 200 x 20 x 31.75) | |
| Spindle motor | 2HP |
| Hydraulic pump motor | 1HP |
| Auto. cross feed motor | 25W |
| Rapid head elevation motor | 1/5HP (Optional) |

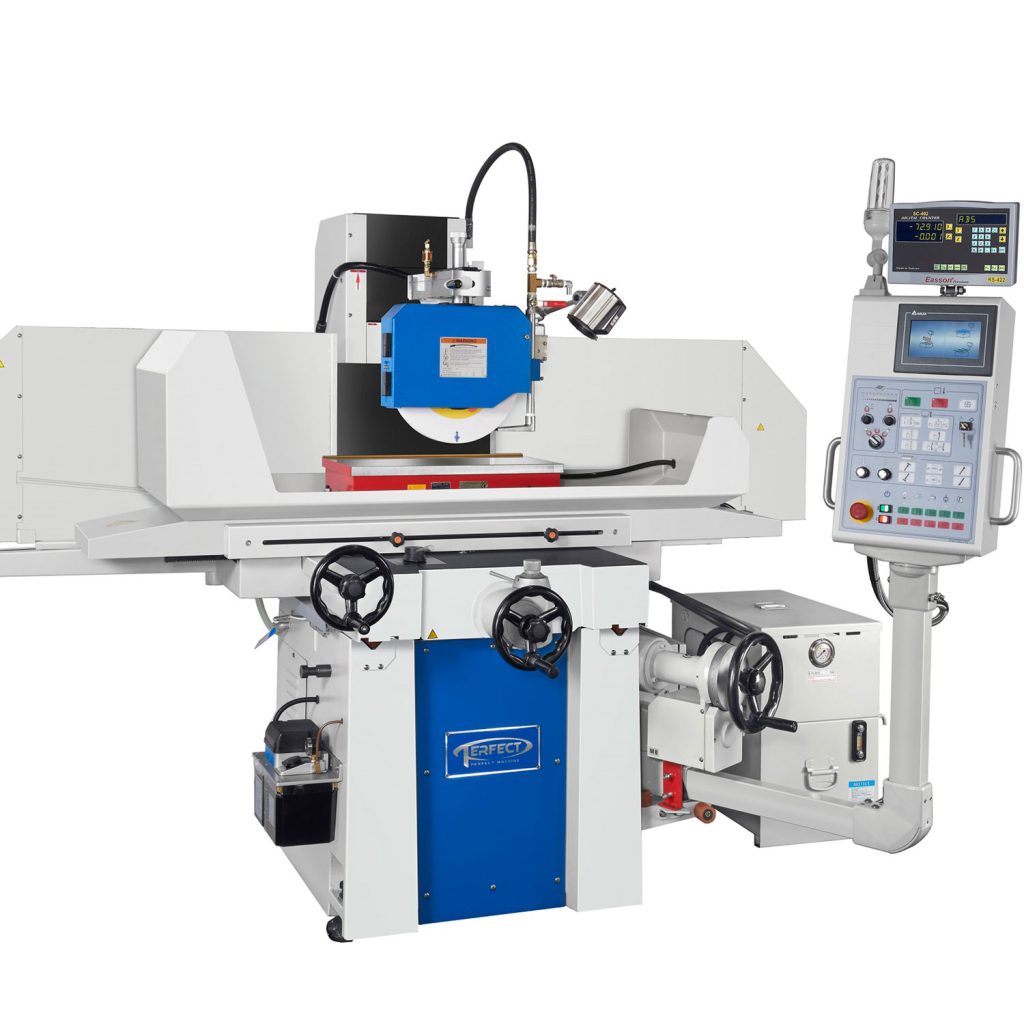

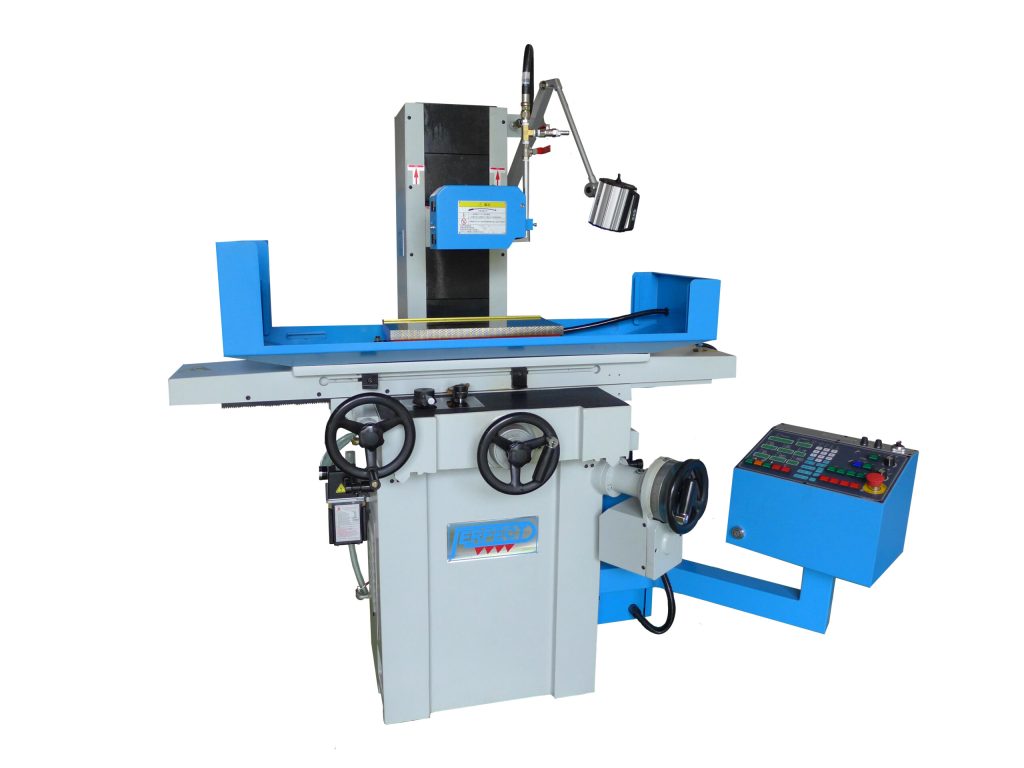

Perfect PFG-1545 Series Saddle Type Horizontal Spindle Surface Grinders
Standard Equipment:- |
| Grinding wheel and wheel flange |
| Flange extractor |
| Wheel balancing arbor and base |
| Wheel dresser with diamond |
| Levelling screws and plates |
| Tool box and tools |
| Working light |
| Manual |
Perfect PFG-1545 Series Saddle Type Horizontal Spindle Surface Grinders
Price:
£ P.O.A
Details:
- Condition : new
