Description

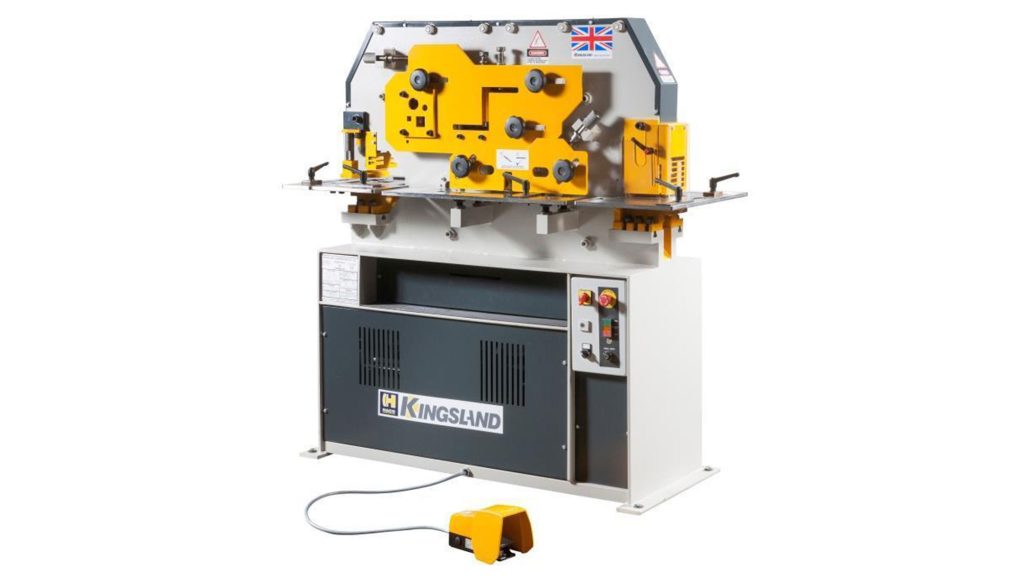

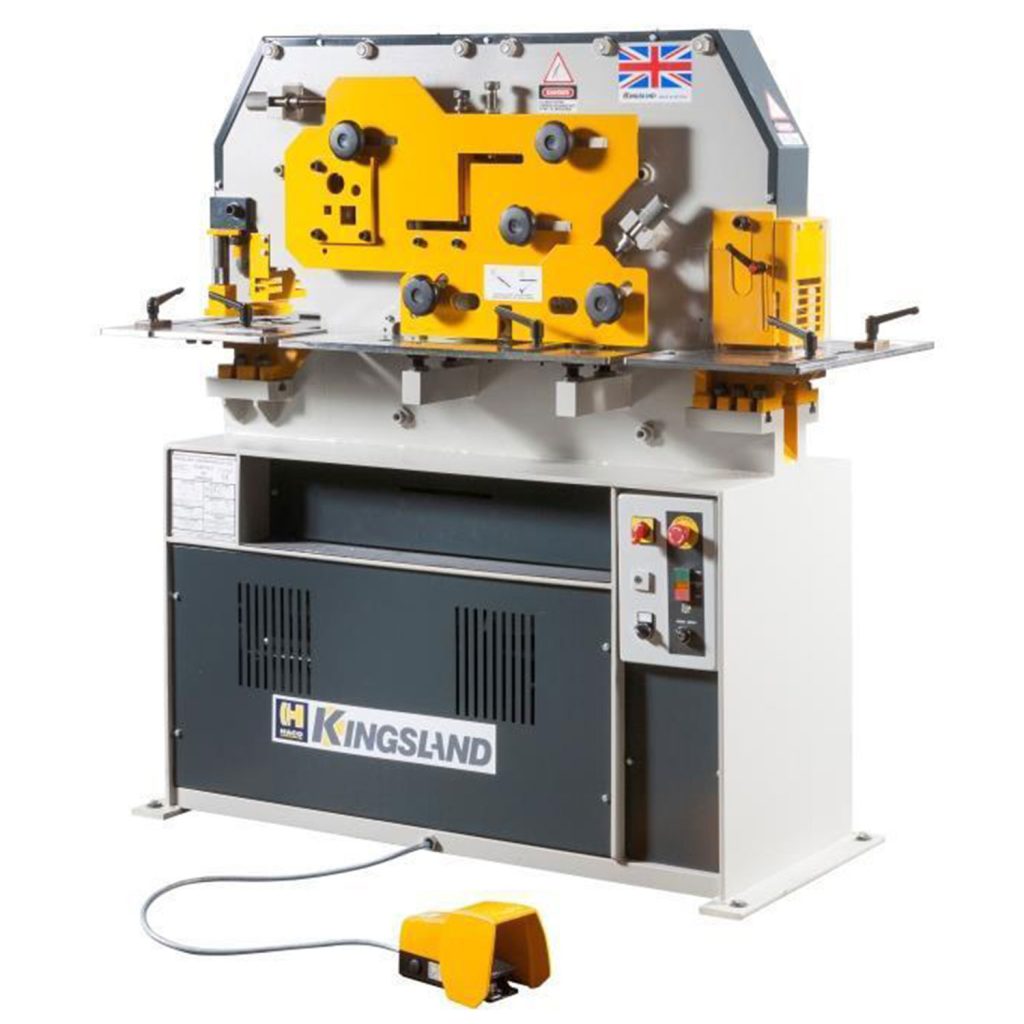

Kingsland Compact Hydraulic Steel Workers. Universal and compact hydraulic steelworkers with 5 workstations, developed for production purposes with maximum efficiency. The COMPACT machines are designed and manufactured using our principals long experience in manufacturing of hydraulic steelworkers. Comprehensive safety guards are fitted as standard on all work stations. Free standing on a suitable floor.
Kingsland Compact Hydraulic Steelworkers range in the UK
Specifications |
C50 | C65 | C80 |

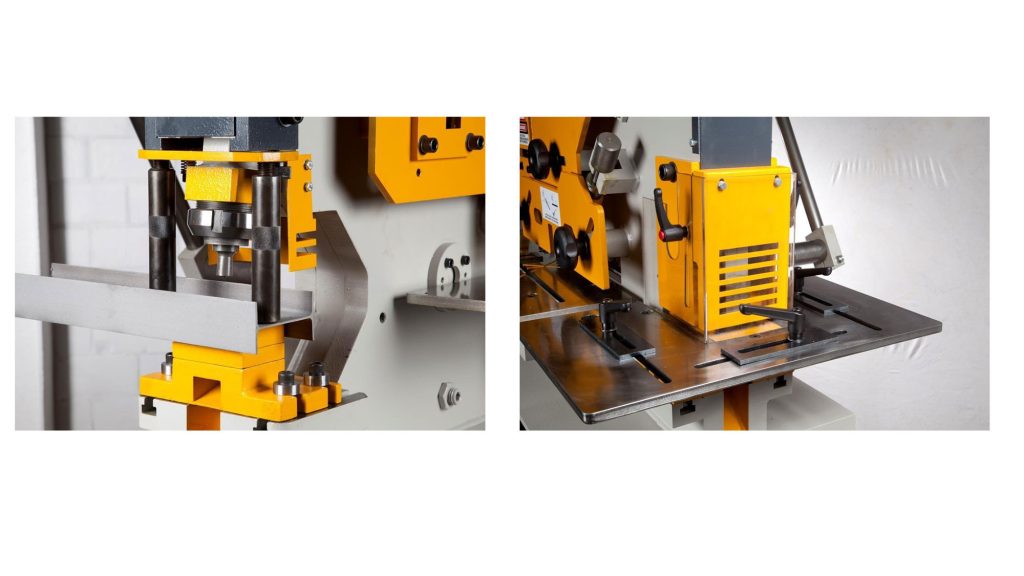

| Punching | |||
| Maximum capacity | 23 x 15mm | 30 x 15mm | 28 x 20mm |
| Diameter x thickness | 38 x 9mm | 38 x 12mm | 38 x 14mm |
| Stroke length | 55mm | 55mm | 55mm |
| Standard throat depth | 220mm | 220mm | 220mm |
| Largest hole (standard) | 38 | 38 | 38 |
| Largest hole (optional) | 110 | 110 | 110 |
| Maximum section | 160 | 160 | 160 |
| Working height | 940mm | 940mm | 990mm |

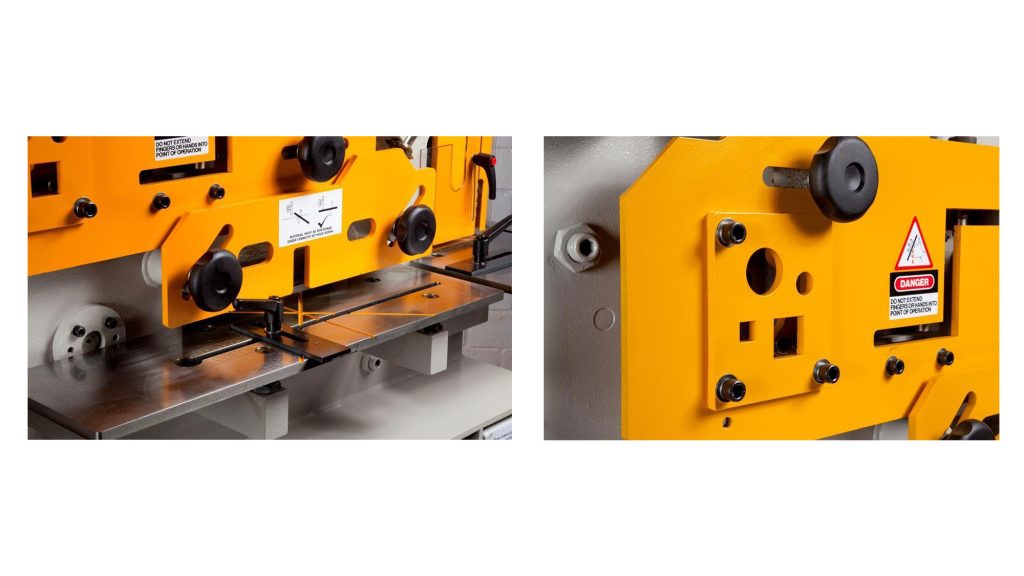

| Shearing | |||
| Flat bar – max thickness | 200 x 15mm | 200 x 20mm | 200 x 20mm |
| Flat bar – max width | 300 x 13mm | 300 x 15mm | 300 x 15mm |
| Angle flange trim | 80 x 10 | 80 x 10 | 80 x 10 |
| Working height | 940mm | 940mm | 940mm |
| Angle Cutting | |||
| 90 Degree cut | 100 x 10 | 120 x 12 | 120 x 12 |
| 45 Degree mitre max 45 degrees | 70 x 6 | 80 x 8 | 80 x 8 |
| Working height | 1140mm | 1140mm | 1190mm |
| Section Cutting | |||
| Round / Square | 35/30 | 40/35 | 40/35 |
| Channel / Beam | 102 x 51 | 102 / 51 | 102 / 51 |
| Tee | 76 x 10 | 76 x 10 | 76 x 10 |
| Notching | |||
| Material thickness | 10mm | 10mm | 12mm |
| Width – rectangular | 42mm | 42mm | 42mm |
| Depth - rectangular | 90mm | 100mm | 100mm |
| Depth - vee | 60mm | 60mm | 60mm |
| Angle flange | 90 x 10 | 100 x 10 | 100 x 12 |
| Working height | 940mm | 940mm | 990mm |
| Corner Notch | |||
| Maximum capacity | 150 x 3 | 150 x 4 | 150 x 4 |
| Tube Notch | |||
| Maximum diameter | 60mm | 60mm | 60mm |

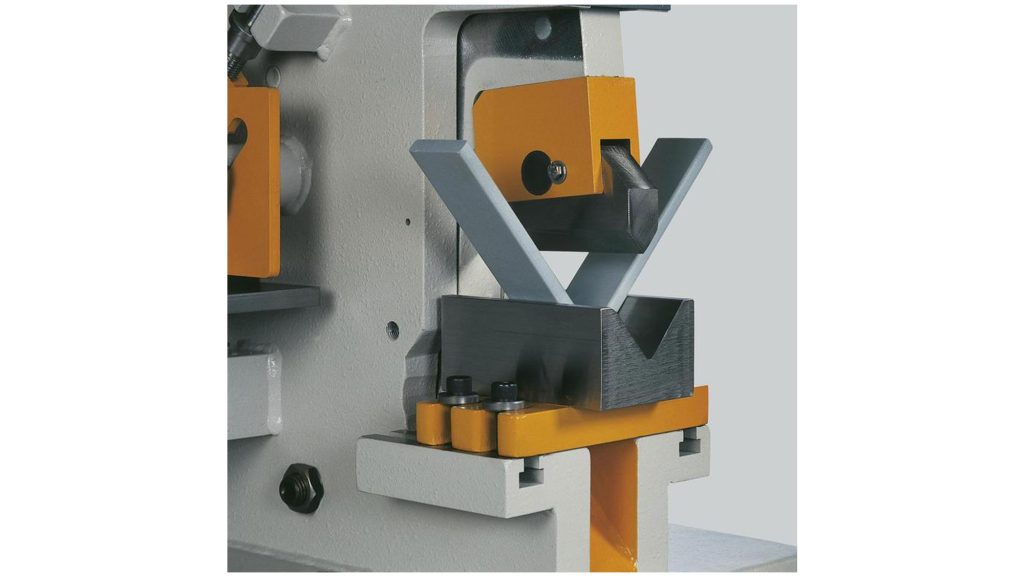

| Bending | |||
| Bar bending (max. capacity) | |||
| Sheet bending (max. capacity) | 150 x 5 | 150 x 5 | 150 x 5 |
| Bar bending on notch end | 150 x 12 | 150 x 12 | 150 x 12 |
| Notch Station Punching | |||
| Throat depth | 110mm | 110mm | 110mm |
| Maximum capacity | 18 x 12 | 20 x 12 | 24 x 12 |
| Technical Data | |||
| Motor power | 3.7Kw | 4Kw | 5.5Kw |
| Net weight | 1245kg | 1250kg | 1250kg |
| Dimensions: LxWxH | 152x59x170cm | 152x59x170cm | 152x59x170cm |
Features |
| Universal bolster for punching flat bar, angle iron and the flange of channel and/or beam |
| Punching upto 38mm in the standard execution |
| Optional large hole attachment for punching utp to 110mm diameter |
| Heavy duty support table on the punch, shear and the notch station fitted as standard with the same working height |
| Inch mode and adjustable stroke on every station |

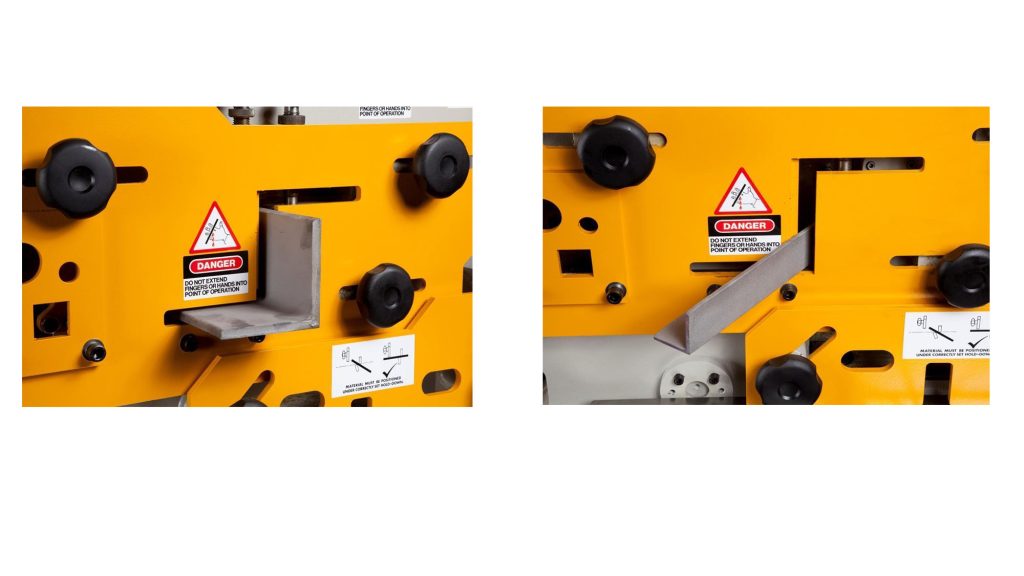

| Unique 'Z' aperture enables the cutting of angle iron in every angle, varying from 45 degrees upto 90 degrees both internal and external (both flanges) |
| Cutting flanges from large sized angle iron can be mitre cut with the shear (see capabilities) |

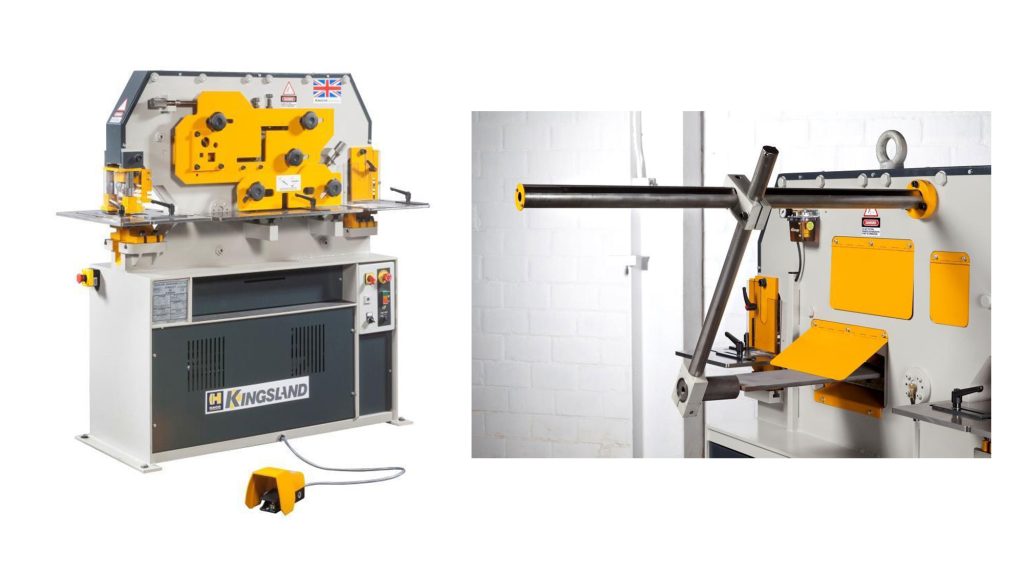

| Extensive range of applications - tube notching, bending, bar end cropping, special shape punching |
| Rectangular and triangular notching applications. The notching station can be transformed into a secondary unching station |
| Extended safety features as standard |
| Centralised lubrication |
| High quality interchangeable bearings, brand name seals and valves available from stockists |
| Machine with low maintenance requirements |
| Single phase execution available on C50 & C65 |
| Possibility to use tooling from other brand names (adaptors maybe required but are available) |
Kingsland Compact Hydraulic Steelworkers
Price:
£ P.O.A
Details:
- Condition : new
