Description

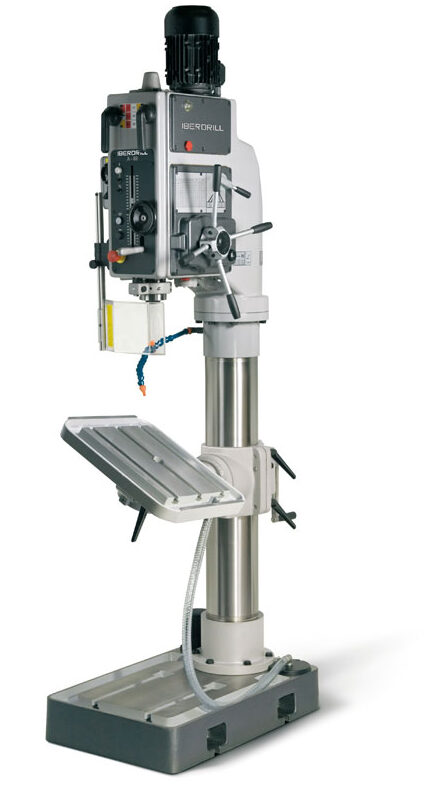

IBERDRILL A50 Gear Head Drilling machines are heavy duty floor mounted machines with a drill capacity of 50mm. These machines are extremely robust units built in Spain and come with tilting table, power feed and coolant systems as standard equipment.
Specification |
IBERDRILL A50 |
| Drilling capacity | 50mm |
| Spindle | No. 4MT |
| Stroke | 230mm |
| Spindle to column | 370mm |
| Spindle to table (max) | 825mm |
| Spindle to base | 1305mm |
| Column diameter | 200mm |
| Table size, overall | 570 x 570mm |
| Motor | 3kW |
| Spindle speeds (9) | 54 – 1032 rpm |
| Power feed rates (3) | 0.10 to 0.30mm/rev |
| 0.0039/0.0079 in/rev | |
| Approx. weight | 840kg |
IBERDRILL A50
Standard Equipment |
| Electric coolant pump |
| Power feed |
| MGI Tilting table |
Ibarmia Model A50 Gear Head Drilling Machine
Need something smaller?
https://www.rk-int.com/machine/arboga-a3808-series-drilling-machines/
Price:
£ P.O.A
Details:
- Condition : new
