Description

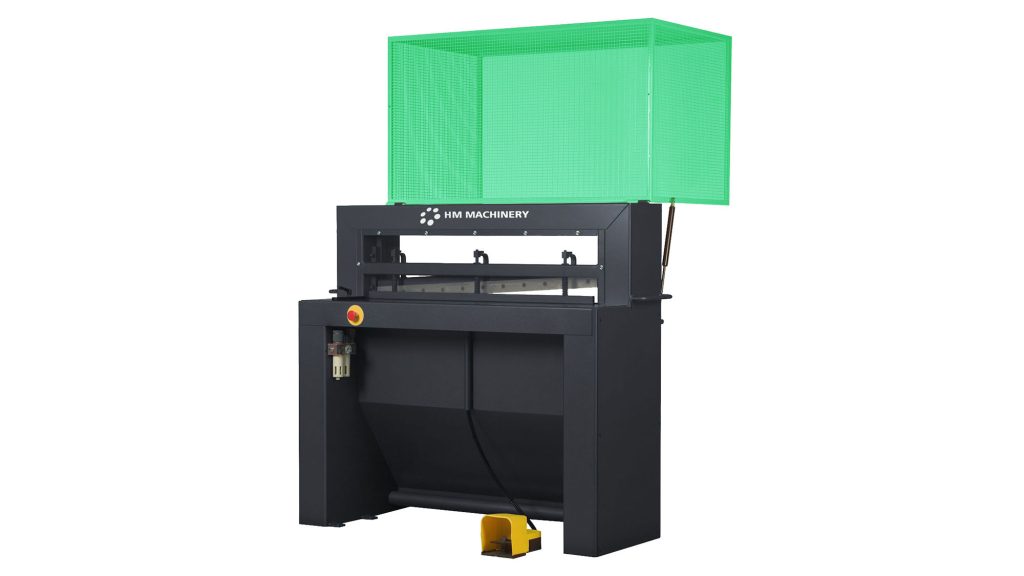

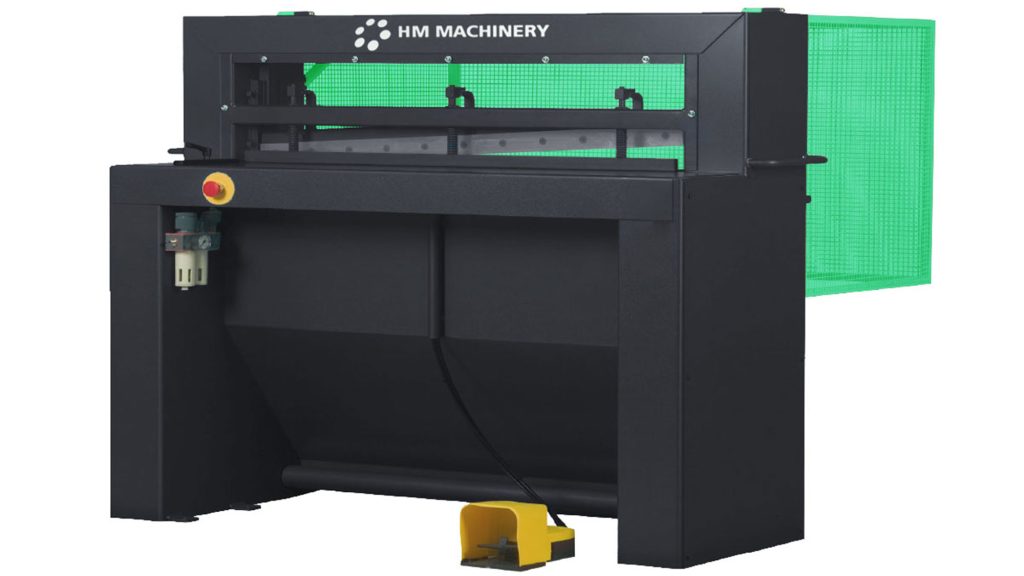

HM Machinery CS P range of pneumatic sheet shears from 1030 x 1.5mm to 2020 x 1.25mm capacities.
Specifications |
CS 100 P1 |
| Working width | 1030mm |
| Sheet dimension | 1.50mm |
| Cutting angle | 3 Degrees |
| Working pressure | 7-10 bar |
| Back gauge | 550mm |
| Side stop | 200mm |
| NL/cycle | 22 |
| Cutting | 28mm |
| Dimensions (L x W x H) | 1380 x 1210 x 1300mm |
| Weight | 195kg |
| CS 100 P2 | |
| Working width | 1030mm |
| Sheet dimension | 2.00mm |
| Cutting angle | 3 Degrees |
| Working pressure | 7-10 bar |
| Back gauge | 550mm |
| Side stop | 200mm |
| NL/cycle | 34 |
| Cutting | 19mm |
| Dimensions (L x W x H) | 1380 x 1210 x 1300mm |
| Weight | 250kg |
| CS 125 P1 | |
| Working width | 1330mm |
| Sheet dimension | 1.50mm |
| Cutting angle | 3 degrees |
| Working pressure | 7-10 bar |
| Back gauge | 550mm |
| Side stop | 200mm |
| NL/cycle | 28 |
| Cutting | 26mm |
| Dimensions (L x W x H) | 1680 x 1210 x 1300mm |
| Weight | 280kg |
| CS 125 P2 | |
| Working width | 1330mm |
| Sheet dimension | 2.00mm |
| Cutting angle | 3 degrees |
| Working pressure | 7-10 bar |
| Back gauge | 550mm |
| Side stop | 200mm |
| NL/cycle | 43 |
| Cutting | 15mm |
| Dimensions (L x W x H) | 1680 x 1210 x 1300mm |
| Weight | 310kg |
Standard Equipment |
| Foot operation pedal |
| Automatic sheet holder |
| Built in worklight |
| Safety system to CE regulations |
| Emergency stop |
Price:
£ P.O.A
Details:
- Condition : educational
