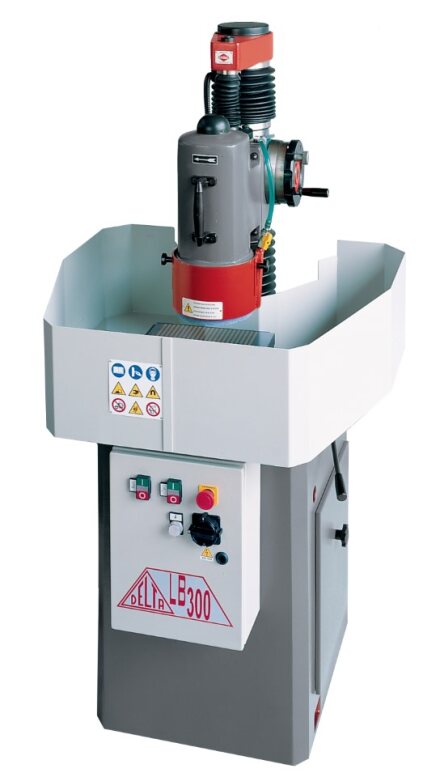

Delta Model LB 300 Plane Surface Grinding Machine

Description

Vertical axis grinding machines from DELTA. Easy to use and highly reliable. Cast iron column mounted on adjustable taper roller bearings and a motor of 2.2kW allow precise grinding of surfaces upto 140 x 330mm. The quick vertical feed is obtained by rotating a graduated handwheel which by acting on a spiral toothing, permits feed of 2mm per revolution.

Specification

Max. grindable surface 140 x 300mm
Distance between column and wheel axis 300mm
Max. distance between table-level and wheel 280mm
Rapid feed per turn of handwheel 2mm
Micrometric feed by small handle 0,01 mm
Size of cup wheel Ø 178 x 78 x 78mm
Size of abrasive segments 50 x 16 x 90mm
Motor power of the wheel (3 HP)-2.2 kW
R.P.M. of the wheel  (50 Hz) 2840rpm
Electropump motor power (0,08 HP)-0,06kW
Mass of the machine 400kg



Standard Equipment

Low tension electric system ( 24 V )
Cooling system with electropump
Wheel-holder flange and grinding wheel
Grinding wheel guard. - Table guard. - Stakes key
Instruction book/testing certificate
CE conformity certificate in respect to the Units
Directive 89/392 and subsequent modifications
Two color  painting  RAL 5018-7032, bicomponent multicoat of paint









    Price:
    £ P.O.A
    Details:
    • Condition : new
