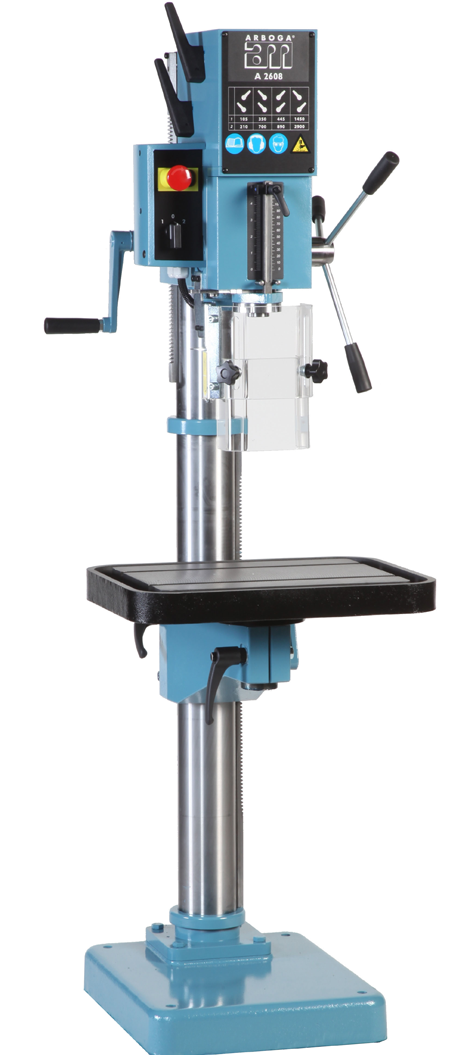

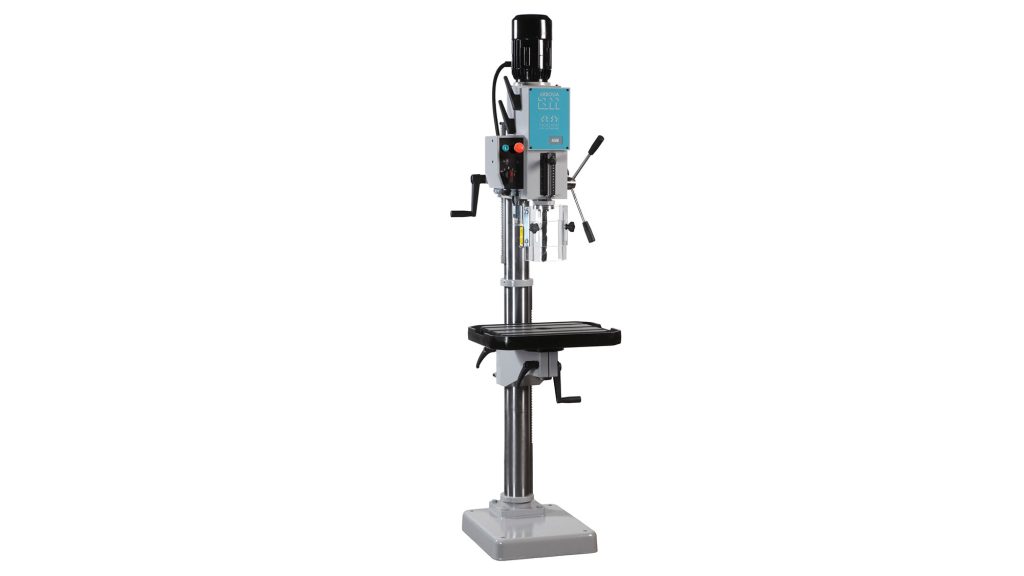

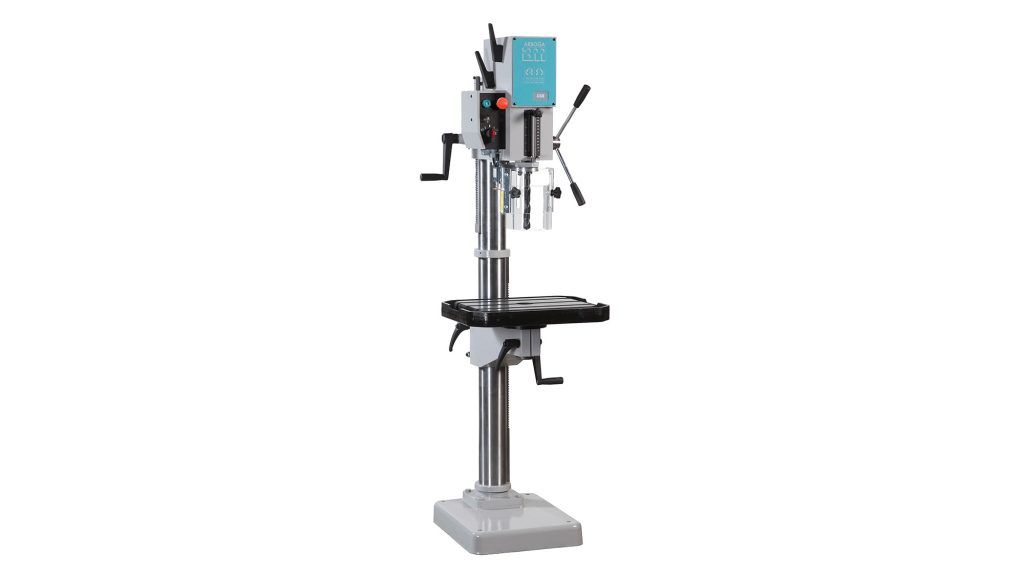

Arboga A2608 Range Gear Head Drilling Machines

Description

Both the ARBOGA A2608 pedestal drills and the power-feed version A2608M are gearbox driven for increase drilling torque. Helical and steel gears ensure highest operational efficiency for a more powerful drive mechanism and smooth operation. On the Arboga A2608M model, once the set drill depth is reached, the spindle will automatically return to the starting point. The feed gearbox is fitted with automatic overload protection which intervenes if the drilling pressure is too high.

Specification

 Arboga A2608 gear head drill
Drilling capacity 25mm
Quill movement 135mm
Tapping capacity (steel, cast iron) M16 / M20
Morse taper MK / MT3
Motor power (50Hz) 0,65kW / 0,9kW
Spindle speed (50Hz) 105-210-350-445-700-890-1450-2900
Feed speed (mm/inch) 0,10/0,004-0,15/0,0006-0,30/0,012
Size of table 500 x 400mm
Electrics 400v / 3 ph / 50Hz
Net weight - A2608 / A2608M 180 / 200Kg

Arboga A2608 Gear Head Drills

Features
500 x 400mm table and electrically interlocked chuck guard
Rise/fall on both head and table
Table head also revolves through 360 degrees about the column

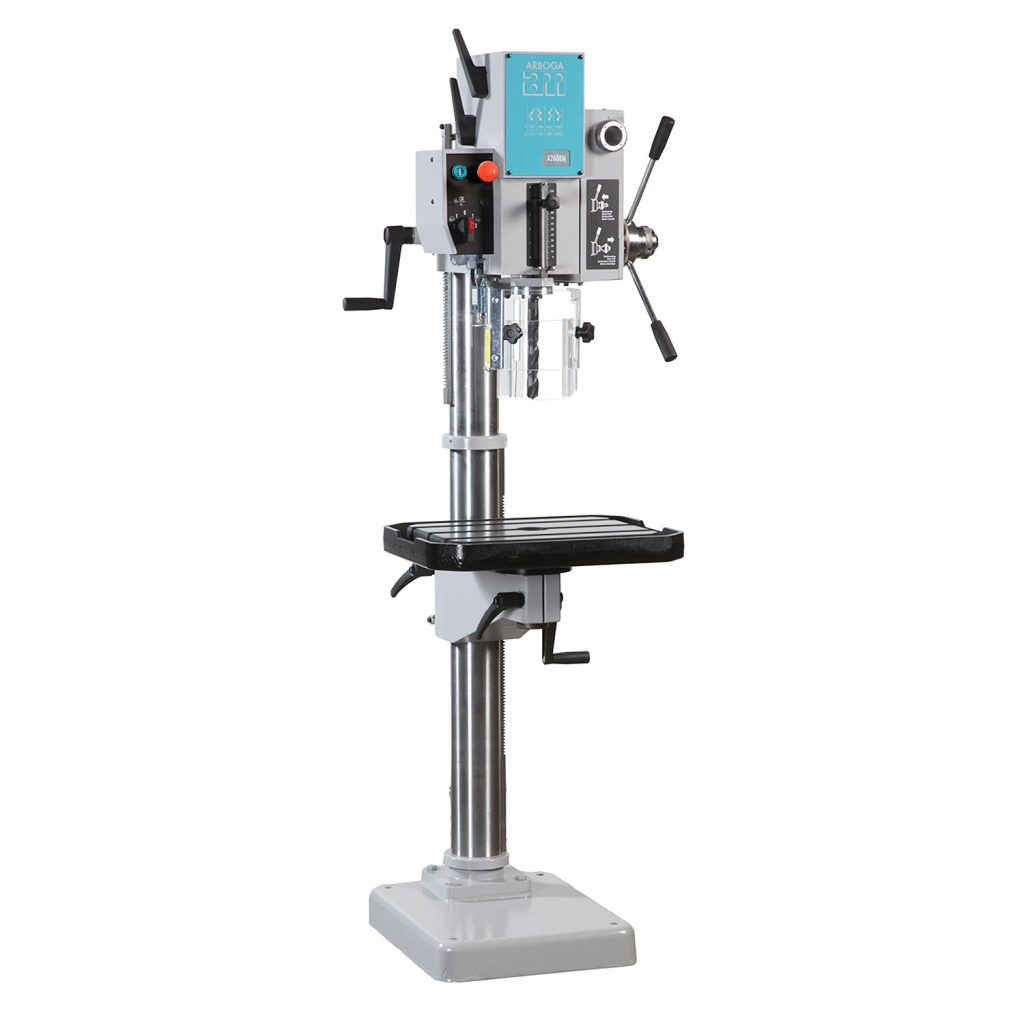

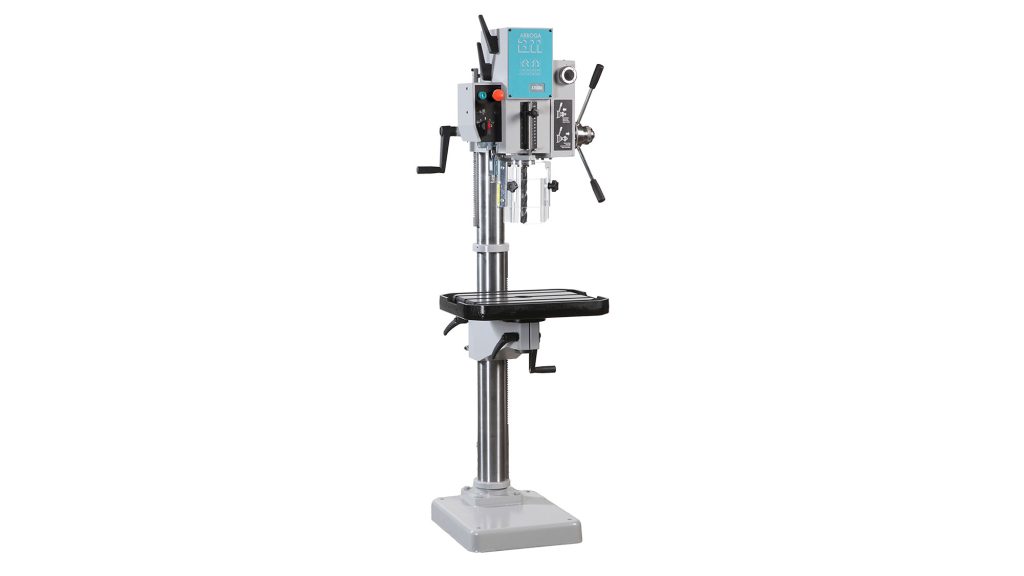

M Models feature Power Feed

When the set drill depth is reached, the spindle will automatically return to the starting point. The feed gear box is provided with an automatic overload protection device, which intervenes when the drill pressure is too high. The feed can also be interrupted manually.

Arboga A2608 range of Gear Head drilling machines



Other drill options - 25mm capacity:

https://www.rk-int.com/machine/35860/

https://www.rk-int.com/machine/arboga-a2608-pedestal-and-bench-drilling-machines/

    Price:
    £ P.O.A
    Details:
    • Condition : new

    Similar products

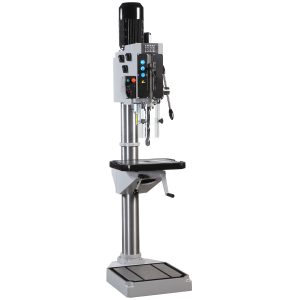

    Arboga A4008 Series Geared Head Drilling Machines

    The ARBOGA A4008 pedestal / floor mounted drilling machine features the largest drilling capacity at 40mm within the range with a gearbox spindle drive for increased drilling torque. An adjustable table and drill head can be raised and lowered along with 360° rotation around the drill column. The A4008M model features automatic drill retract to the starting point once the set drill depth has been reached. The A4008ELM model features a start / stop of the automatic feed via buttons on the feed lever. Hand and automatic tapping are standard.

    See product >
    Arboga A3808 Series Drilling Machines

    The ARBOGA A3808 pedestal / floor mounted drilling machine features a 35mm drilling capacity with a gearbox spindle drive for increased drilling torque. An adjustable table and drill head can be raised and lowered along with 360° rotation around the drill column.

    See product >

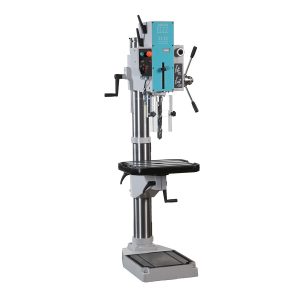

    Arboga A3008 Series Power Feed Geared Head Drilling Machines
