        Used Ajax JCBM 750S CNC Bed Type Milling Machine

        Used Ajax JCBM 750S CNC Bed Type Milling Machine

        Jump to

        Use: Industrial

        Used Ajax JCBM 750S CNC Bed Type Milling Machine

        Additional information

        Condition

        YOM

        2013

        Manufacturer

        Machine overview

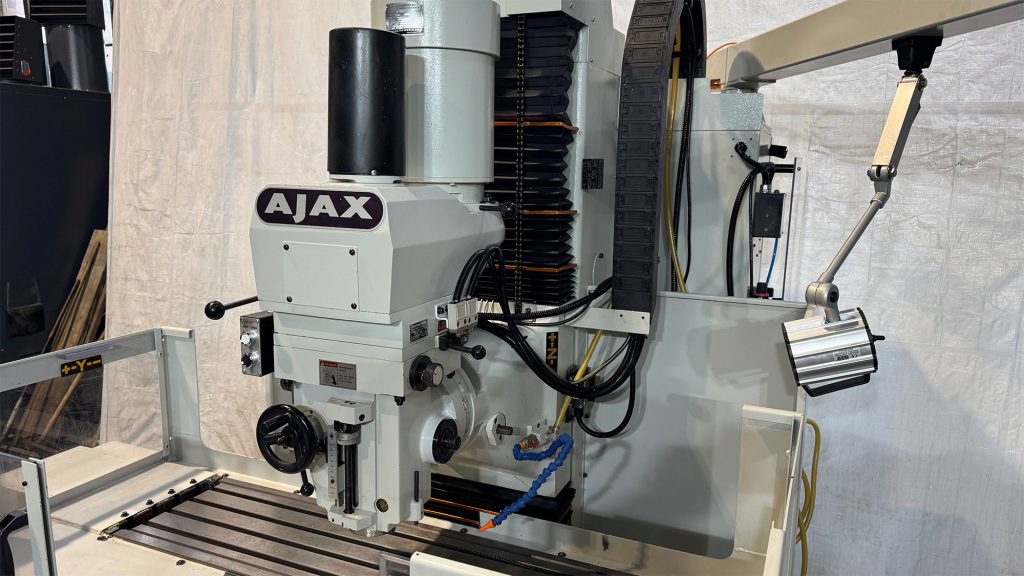

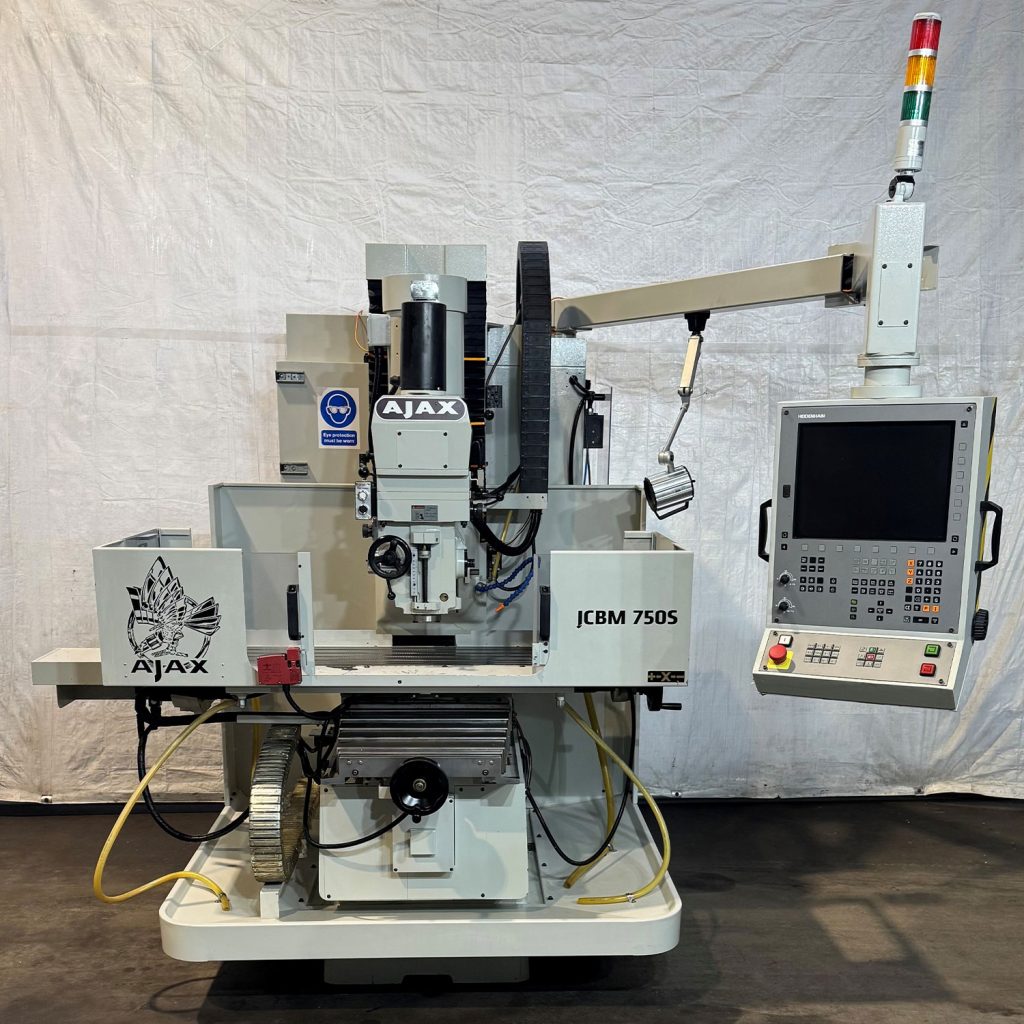

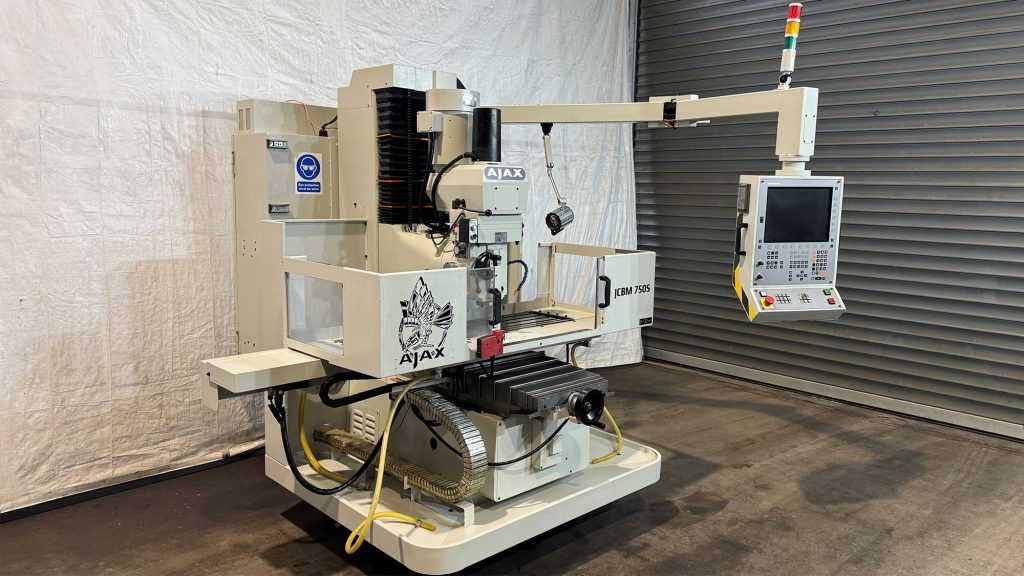

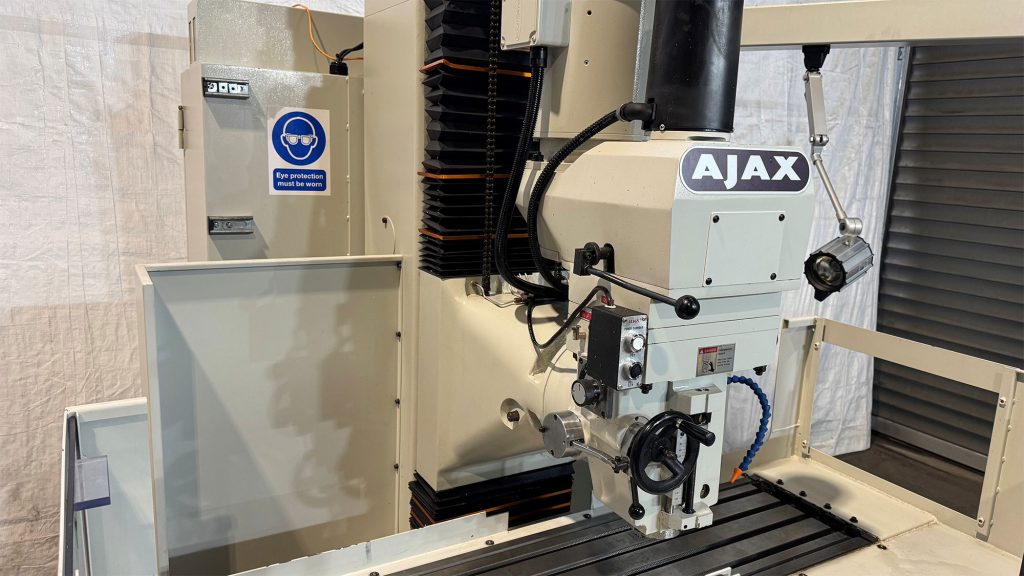

        Used Ajax JCBM 750S CNC Bed Type Milling Machine Equipped with:

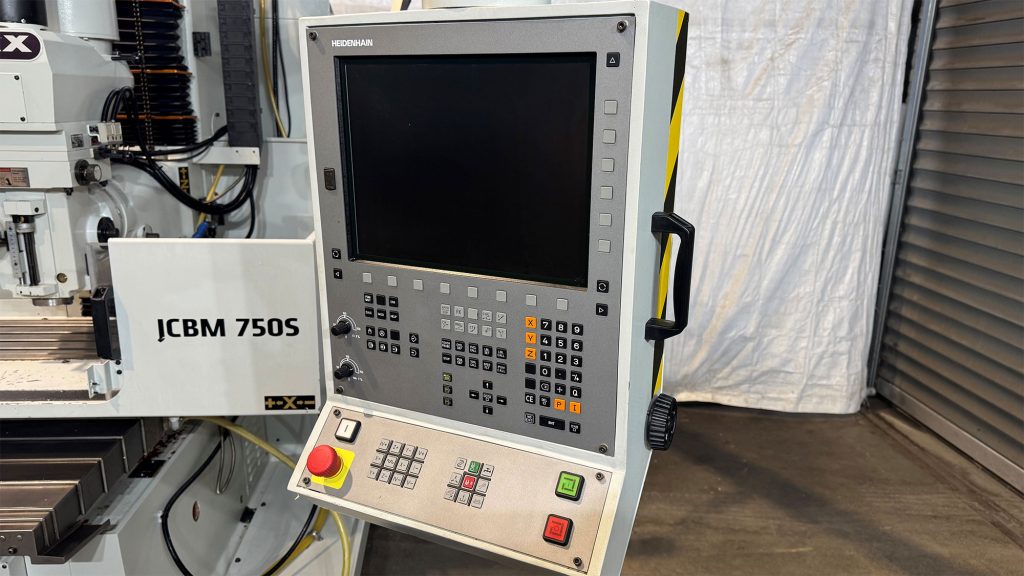

        • Heidenhain TNC 320 CNC Control
        • Air Power Drawbar
        • Interlocked Table Guard
        • Base Splash Tray
        • Coolant System
        • Automatic Lubrication
        • Lighting
        • Vice

        Specification

        Condition Used
        YOM 2013
        Serial Number 40898

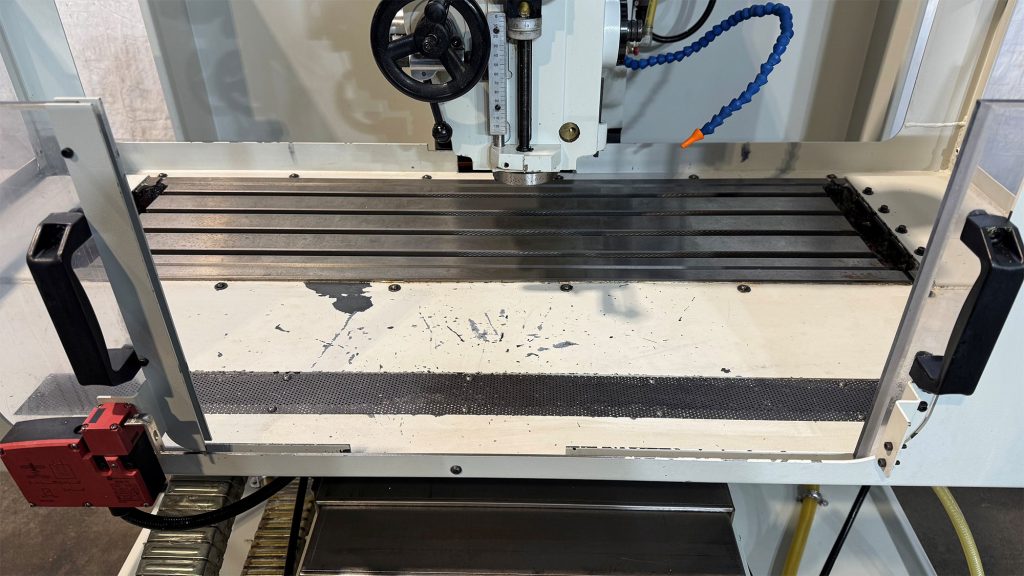

        Table size 1270 x 320mm
        Longitudinal Traverse (X axis) 750mm
        Cross Traverse (Y axis) 400mm
        Vertical Traverse (Z axis) 500mm
        Max. table load 500Kg
        Quill travel 127mm
        Quill diameter 100mm
        Spindle motor 5.6kW
        Spindle speeds 50-3800rpm
