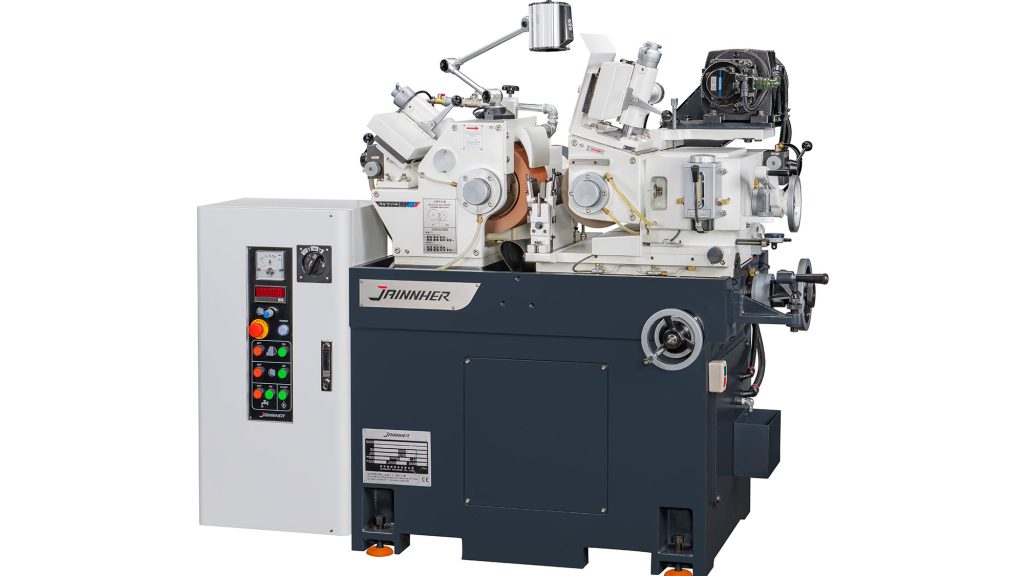

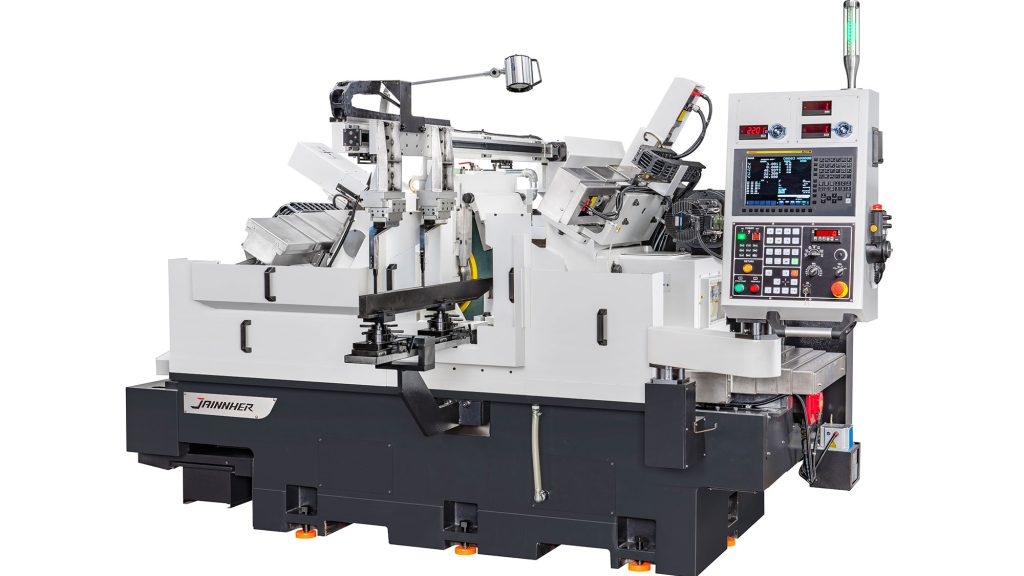

JAINNHER JHC Series Centreless Grinding machines

• Higher Productivity: Continuous loading allows for faster processing
• Improved Roundness: The method naturally produces excellent concentricity
• No Workpiece Distortion: No chuck or centre pressure means no deformation
• Versatility: Can handle long, thin parts that would deflect in centred grinding
• Consistency: Ideal for high-volume production of identical components

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

In traditional centred grinding (cylindrical), the workpiece is held at both ends (between centres or in a chuck) and rotates against a grinding wheel.

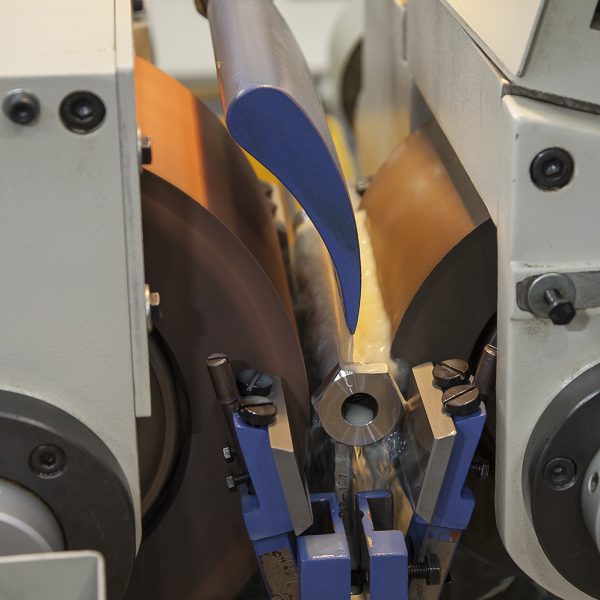

In centreless grinding, the workpiece is not mechanically constrained but instead rests freely between the grinding wheel, regulating wheel, and a work blade. This fundamental difference eliminates the need for centre holes or complex fixturing and work holding solutions.

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

Centreless grinding is suitable for virtually any material that can be ground, including:

• Various steels (carbon, stainless, tool steels)
• Superalloys including Inconel, Hastelloy, Titanium, Waspalloy, Nimonic and more.
• Aluminium and its alloys
• Brass, copper, and other non-ferrous metals
• Ceramics and composites, including carbon fibre
• Plastics

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

There are two primary methods:

• Through-feed grinding: The workpiece passes entirely through the wheels, ideal for straight cylindrical parts
• In-feed grinding (plunge grinding): Used for parts with complex profiles or shoulders where the regulating wheel moves inward toward the grinding wheel

Visit the Centreless (or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

Centreless grinding is renowned for its precision, typically achieving:

• Diameter tolerances: ±0.0001 to ±0.0005 inches (±0.0025 to ±0.0127 mm)
• Surface finishes: 1.0 to 16 microinches Ra (0.02 to 0.4 μm) and even lower with the correct abrasive
• Roundness: Within 0.0001 inches (0.0025 mm)

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

This process is vital across numerous sectors:

• Automotive: For parts like valve stems, piston rods, and transmission shafts
• Aerospace: Hydraulic components, landing gear parts, and engine components
• Medical: Implants, surgical instruments, and diagnostic equipment parts
• Hydraulics & Pneumatics: Cylinder rods, piston pins, and valve spools
• Fastener Industry: Bolts, pins, and precision shafts

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

• While versatile, the process has some constraints:
• Not suitable for parts with multiple diameters or complex geometries in a single setup
• Requires consistent workpiece straightness for through-feed grinding
• Establishing the initial setup can be time-consuming for short production runs
• Cannot easily grind faces or shoulders except with specialised in-feed setups

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

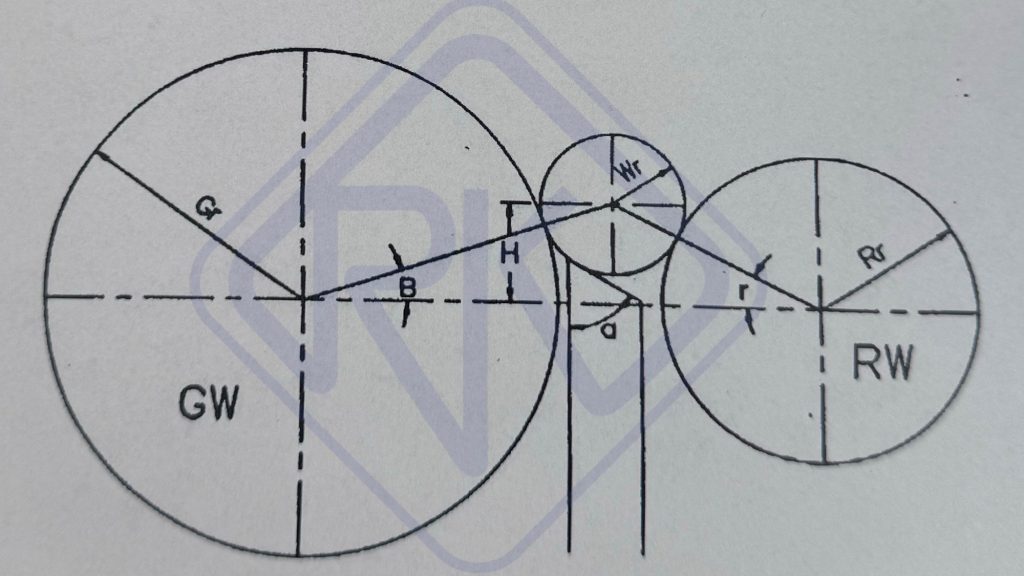

Size control is achieved through precise machine setup and the relationship between three key elements: the grinding wheel, regulating wheel, and work blade. As material is removed, the workpiece settles lower on the work blade, changing its relationship to the wheels. Experienced operators use this principle, along with proper wheel dressing and feed rates, to maintain consistent sizing.

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

This is the self-correcting mechanism that makes centreless grinding so effective at producing round parts. If a workpiece has a high spot, that spot will contact the grinding wheel more aggressively, removing more material from that area. As the part rotates, this corrective action continues until optimal roundness is achieved.

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

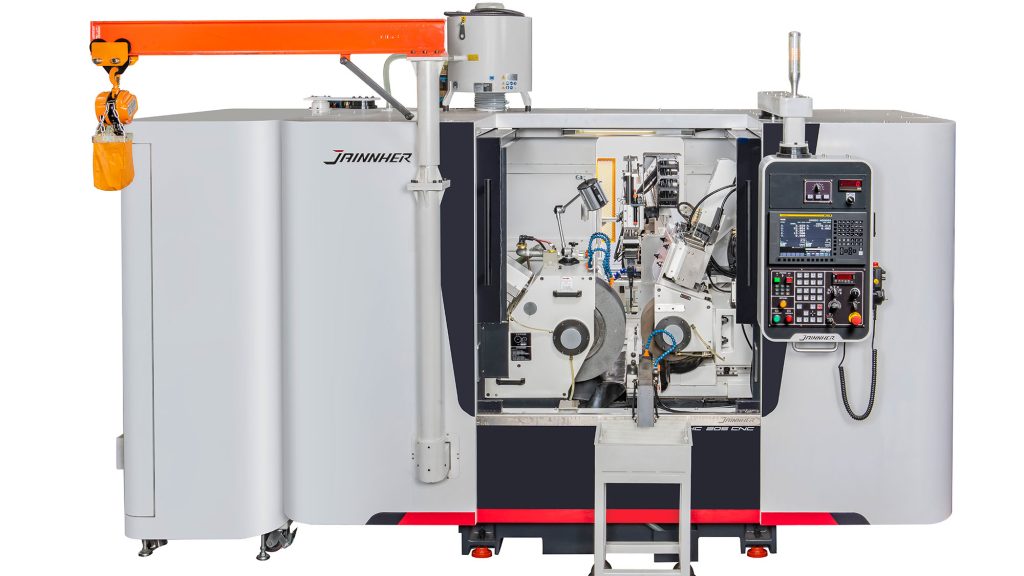

Absolutely. Modern centreless grinders often incorporate automation for loading, unloading, sizing control, and wheel dressing. This makes them ideal for high-volume production environments where consistency and minimal operator intervention are priorities.

Today, NC and CNC machines along with automation solutions allow for a modern and clean machining process.

Visit the Centreless ( or Centerless) Grinding Machine Section : https://www.rk-int.com/product-category/grinding/centreless/

Consider centreless grinding if your project involves:

• Not always limited to, but has significant advantages with high volumes of cylindrical components
• Strict requirements for roundness and surface finish
• Long, slender parts that might deflect in chucking
• Parts that would be expensive or difficult to centre
• Applications where production speed is critical
• Applications where the workpiece has an infinite length
