      Machines

        category: Combination Lathes, Turning

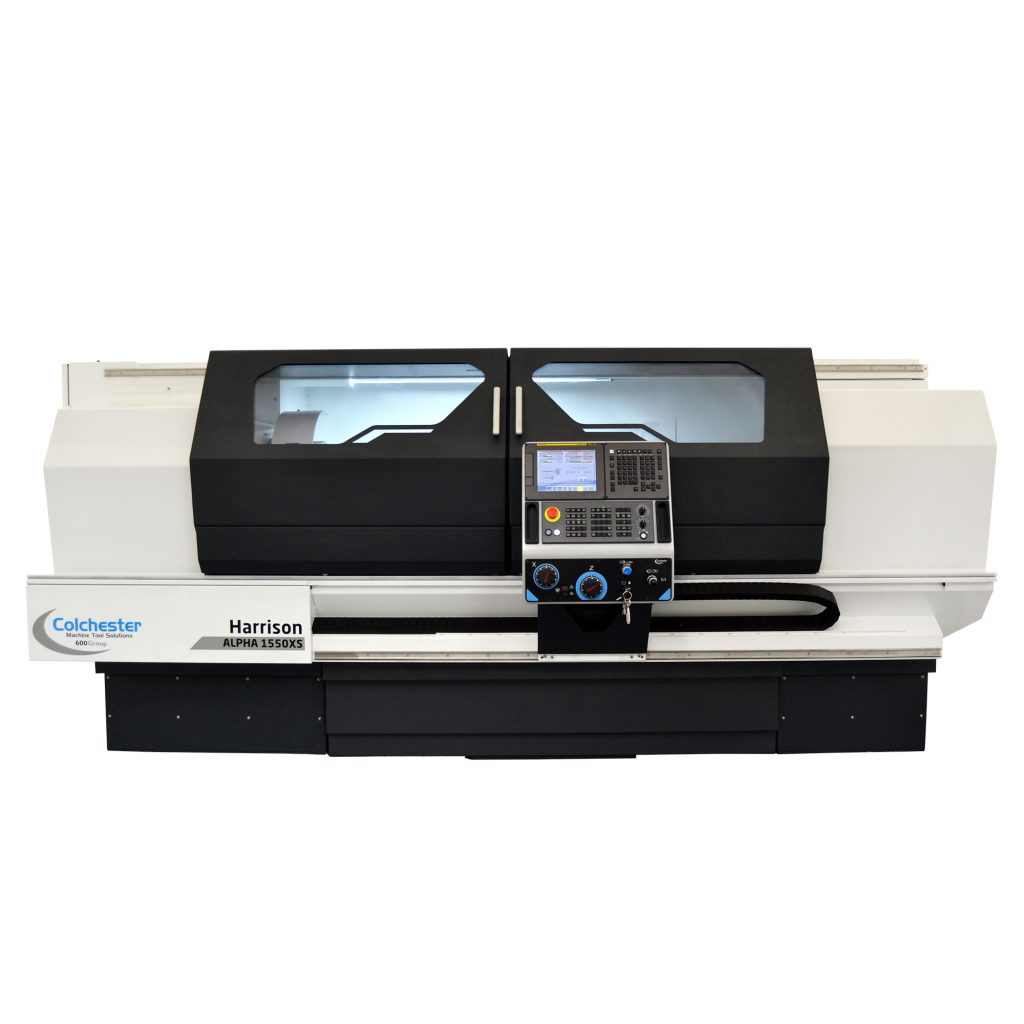

        Harrison Alpha XS 2 axis Combination Lathes

        Harrison Alpha XS 2 axis Combination Lathes

        Jump to

        Use: Educational, Industrial

        Harrison Alpha XS 2 axis Combination Lathes

        Additional information

        Condition

        CNC Control System

        Fanuc Oi-TF Plus

        Manufacturer

        Machine options

        Machine overview

        The Alpha X Series from Colchester Machine Tool Solutions offers a wide choice of advanced technology CNC Combination Lathes to suit all types of high-precision turning applications,
        including secondary operations such as milling, drilling and tapping.

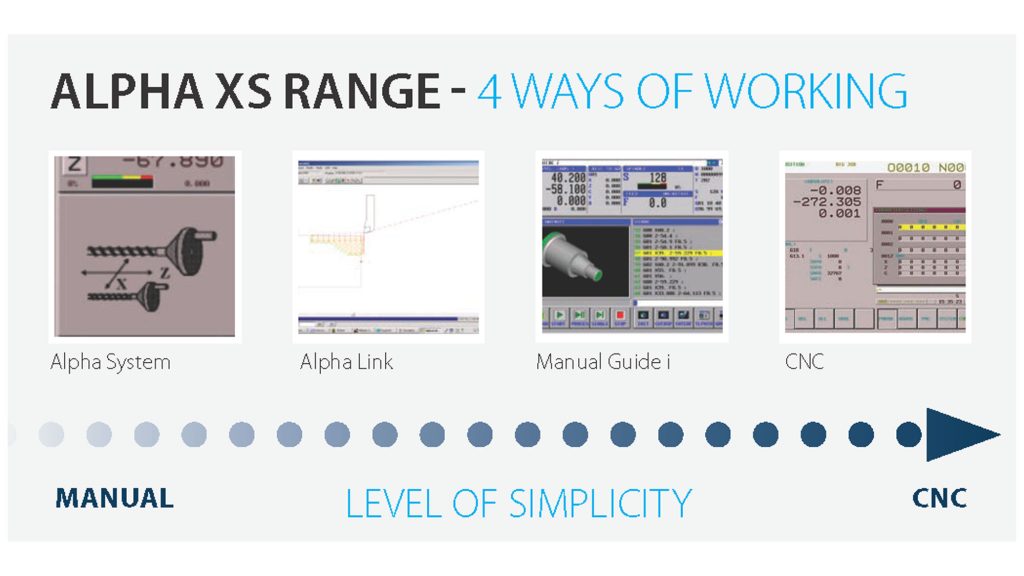

        The Alpha XS and XC are powerful conversational lathes that can also run CNC programs developed elsewhere or to create CNC programs for use on other machines.

        Specification

        Condition New
        Model Harrison Alpha 1350XS, Harrison Alpha 1400XS, Harrison Alpha 1460XS, Harrison Alpha 1550XS, Harrison Alpha 1660XS, Harrison Alpha 1760XS
        Distance between centres 1200mm, 1500mm, 1550mm / 2000mm / 3000mm / 4000mm / 5000mm / 6000mm, 2000mm / 3000mm, 650mm
        Spindle Bore 104mm, 155mm, 42mm, 55mm, 78mm
        CNC Control System Fanuc Oi-TF Plus
        Spindle motor 11Kw, 15KW, 18.5Kw, 7.5KW
        Spindle Nose A2-11, D1-11 Camlock, D1-11/A2-11, D1-4 Camlock, D1-6 Camlock, D1-8 Camlock
        Spindle speed 1 - 2000rpm, 1 - 2200rpm, 1 - 2700rpm, 1 - 3500rpm, 10 - 1400rpm, 26 - 2000rpm
