category: Grinding, Surface Grinding
Use: Industrial
Delta Mini Series of high precision surface grinder machines from Italy.
These travelling column surface grinders are available in 3 models with table sizes from 800 x 550mm up to 1600 x 650mm.

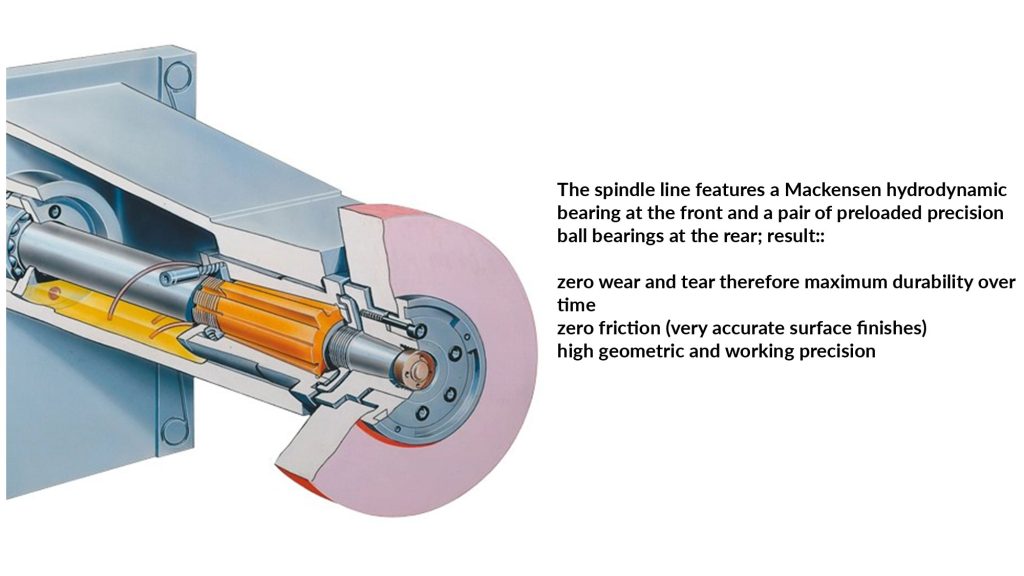

HYDROSTATIC SUPPORT
All machine axes have hydrostatically supported guides with full grip, therefore: the table always rests on the base for the entire longitudinal stroke; the same criterion is applied to the upright and the head. This involves:
HYDRAULIC TABLE
with double cylinders controlled by an electronically controlled proportional valve
AUTOMATION LEVELS

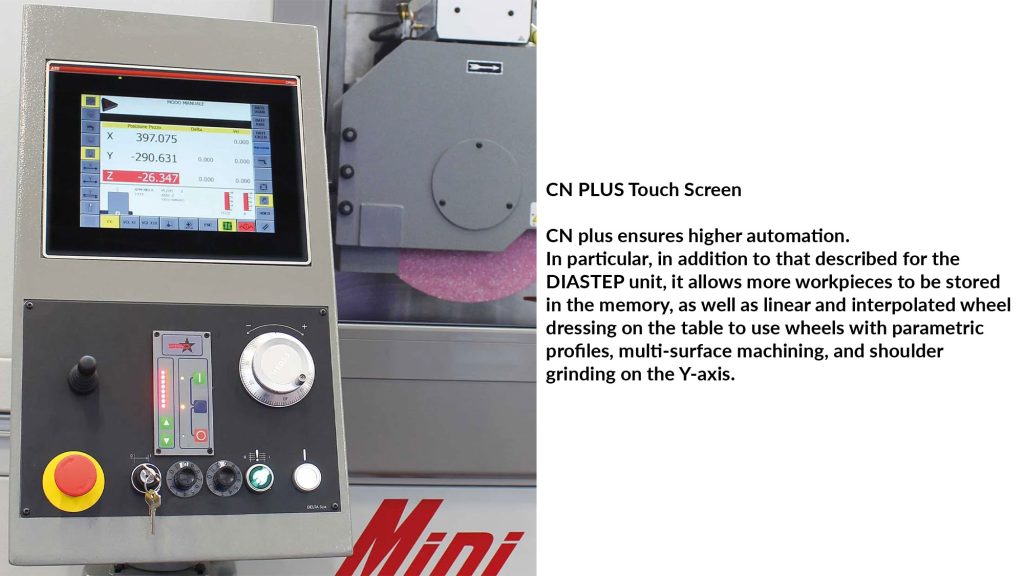

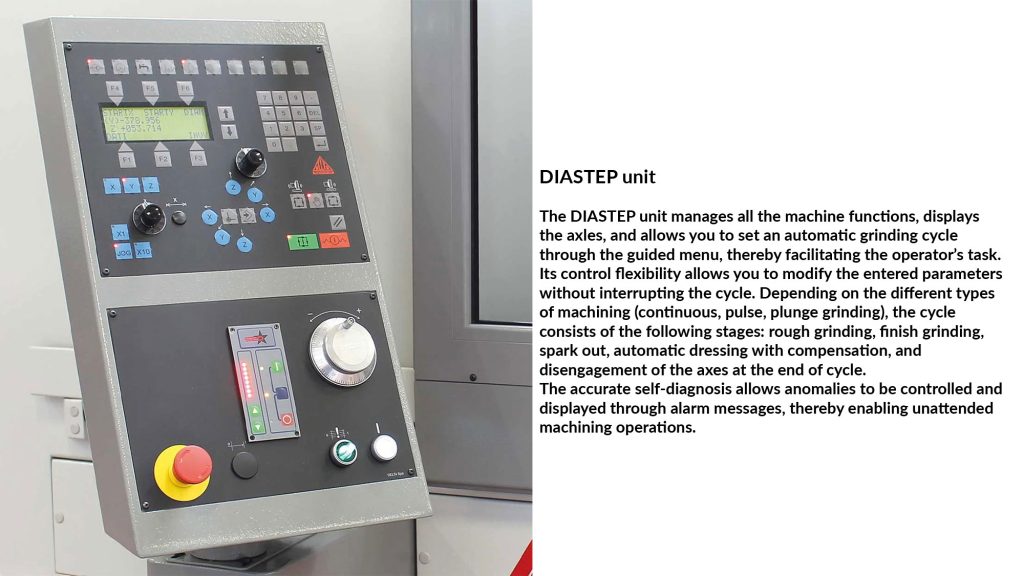

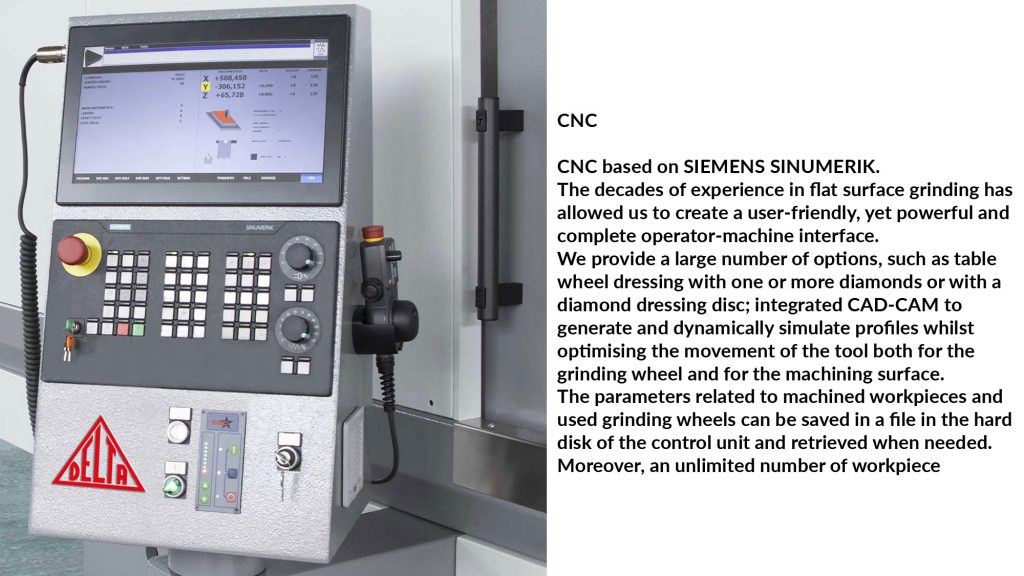

3 levels of Delta Mini Series automation are available. Diastep, CN Plus Touch screen and CNC Siemens, all characterised by maximum ease of use:
| Condition | New |
|---|---|
| Model | Delta MINI 7 [700 x 400mm], Delta MINI 12 [1200 x 500mm], Delta MINI 15 [1500 x 500mm] |
| Spindle speed | 1450rpm [1000 - 2000rpm option] |
| Spindle motor | 7.5Kw [11Kw option] |
| Machine Weight | 5200Kg, 6000Kg, 6500Kg |
