Description

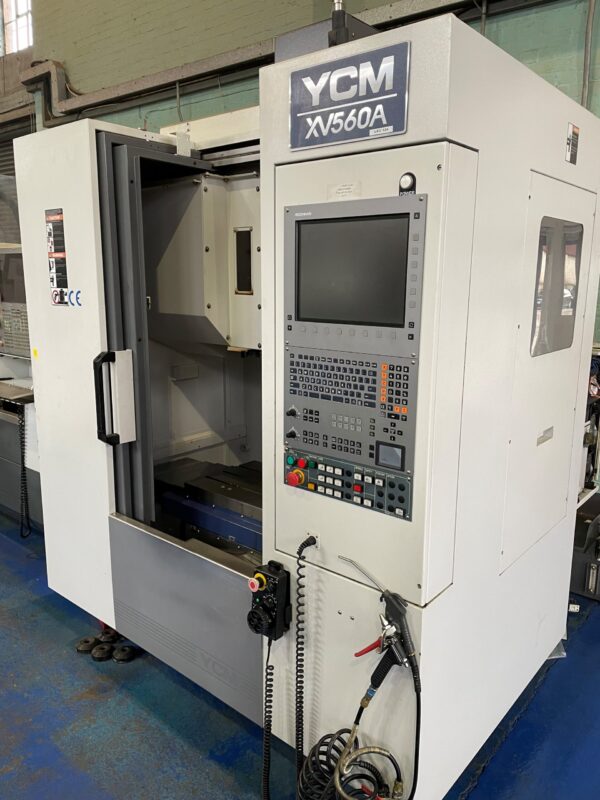

USED YCM XV560A Vertical Machining Centre with Traverses X-560mm, Y-410mm, Z-450mm. Table size 700 x 420mm. Spindle speed 0-10000rpm. Equipped with Heidenhain 530 CNC Control.
SPECIFICATION |
YCM XV560A |
| Travel | |
| X axis stroke | 560mm |
| Y axis stroke | 410mm |
| Z axis stroke | 450mm |
| Distance spindle nose to table | 110-560mm |
| Table | |
| Width | 420mm |
| Length | 700mm |
| Max. Weight on table | 300kg |
| T Slots : width | 14mm |
| T Slots : pitch | 100mm |
| Spindle | |
| Taper size | No.40 |
| Speed | 0-10,000rpm |
| Motor (direct coupled) | 11Kw |
| Feedrate | |
| Rapid X, Y & Z axis | 36/36/24m/min |
| Max. Cutting feedrate | 10m/min |
| Toolchanger | |
| Capacity | 20 tools |
| Type | Swing arm |
| General | |
| Approximate machine weight | 3000kg |
| Air supply (min) | 5.5kg/cm2 |
Used YCM XV560A Vertical Machining Centre for sale. Popular CNC machine tool
Machine equipped with:- |
| Heidenhain 530 CNC Control system |
| Spindle air blast and curtain |
| 14 off BT 40 toolholders |
| Tool touch probe |
| Automatic lubrication system |
| Enclosed guarding |
| Coolant system |
| Lighting |
Price:
£ P.O.A
Details:
- Serial Number : 0042
- Year : 2007
- Condition : used
