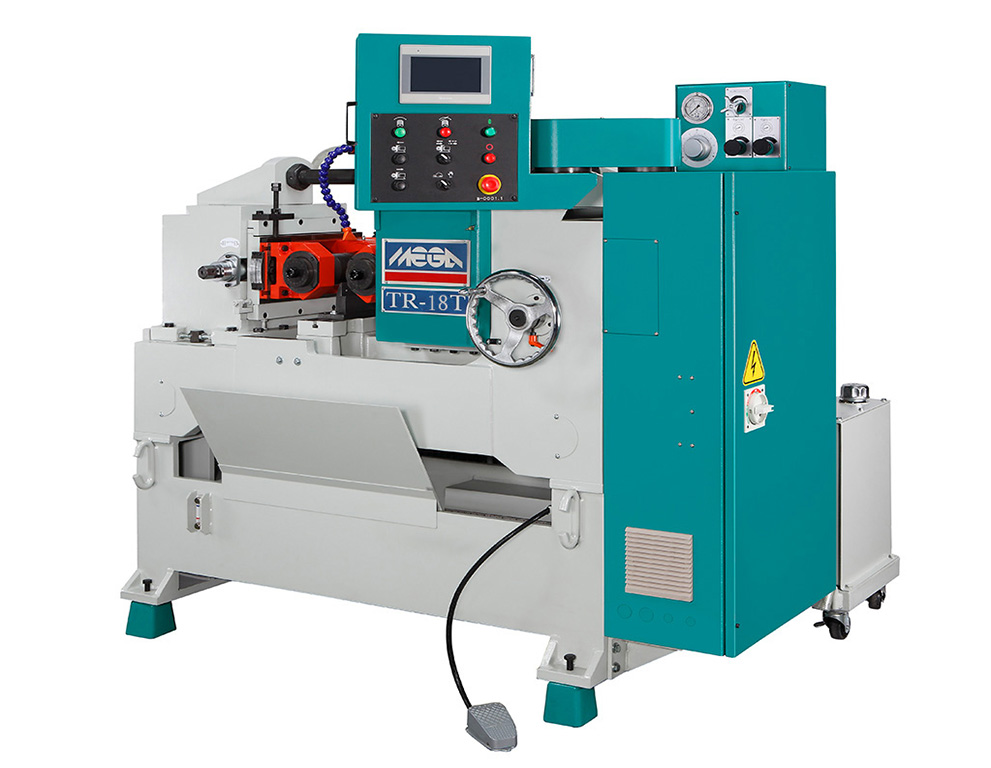

Mega NTR-18T Thread Rolling Machine

Description

Mega NTR-18T Thread Rolling Machine. Mega’s economy thread/profile forming machine at the moment equipped with swivelable roller shafts. Which ensures optimum capacity and use in making threads and axially parallel profiles in the through-feed process. However, short cylindrical parts (especially thread pins) can also be rolled in the through-feed process. For this special through-feed process, automatic feed of the work is necessary. This machine can also be used in the in-feed process with parallel die axes, the length of the profile to be rolled depends on the width of the rolling dies, there is no axial movement of the workpiece.

SPECIFICATION

Mega NTR-18T Thread Rolling Machine
Range of thread
Maximum diameter 60mm
Range of length (in-feed) 150mm
Range of length (thru-feed) Free
Speed range
Servo motor stepless speed change 3-50rpm
Rolling dies
Maximum diameter 150mm
Bore diameter 54mm
Width range 35-150mm
Distance of dies spindle
Maximum distance 210mm
Minimum distance 150mm
Maximum rolling pressure 18 Tons
Main power 5.5kW*2
Hydraulic power 2.2kW
Coolant power 0.19kW
Height from Floor to Spindle Centre 959mm
Floor space required L x W 1220 x 1480mm
Overall height 1795mm
Gross weight 1950kgs

Mega NTR-18T Thread Rolling Machines

Standard equipment

P.L.C. control for all electric and hydraulic function
Linear scale for showing feeding position
Rolling dies can rotate in two-way + feeding can be divided into auto-segmental
feeding
AC Servo motor drives rolling shaft rotating directly
Precise feeding setting by hand wheel
Two-stage hydraulic feeding system with high pressure and low pressure
Thread pitch matching (servo control)
Index switch
Stepless variable speed controlled by inverter
3-step-speed gear change system (servo control)
Auto lubrication system for slide plate
Work light
Tools with tool box (1 set )
Instruction manual (1 copy)
CE Electrics

Mega NTR-18T Thread Rolling Machines UK

Mega thread rolling NTR18T

    Price:
    £ P.O.A
    Details:
    • Condition : new
