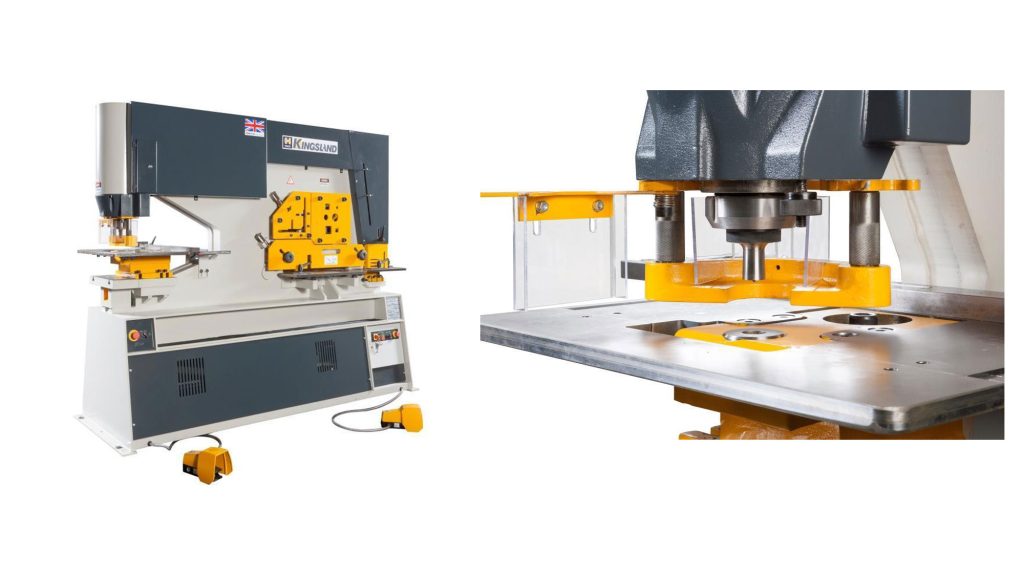

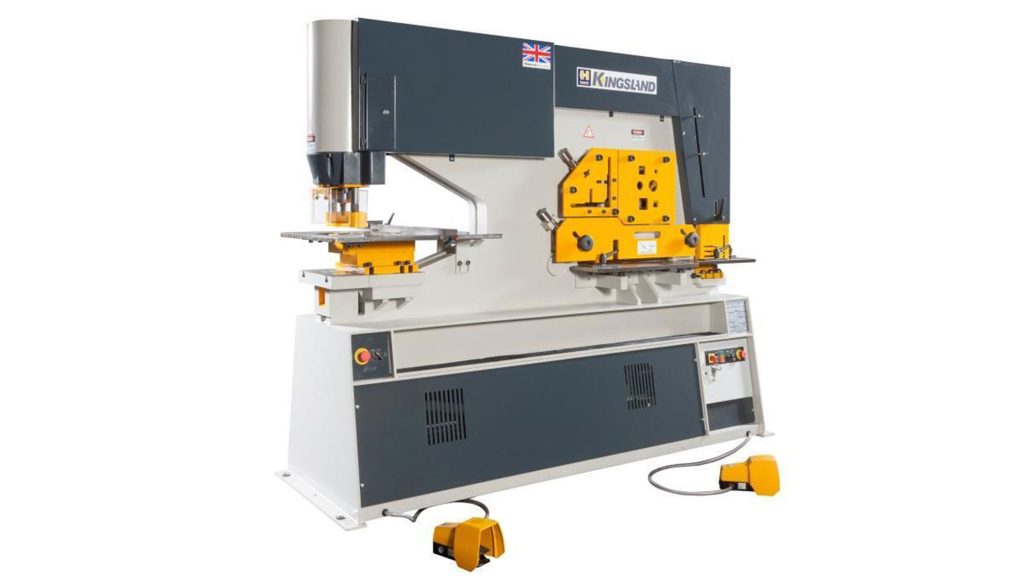

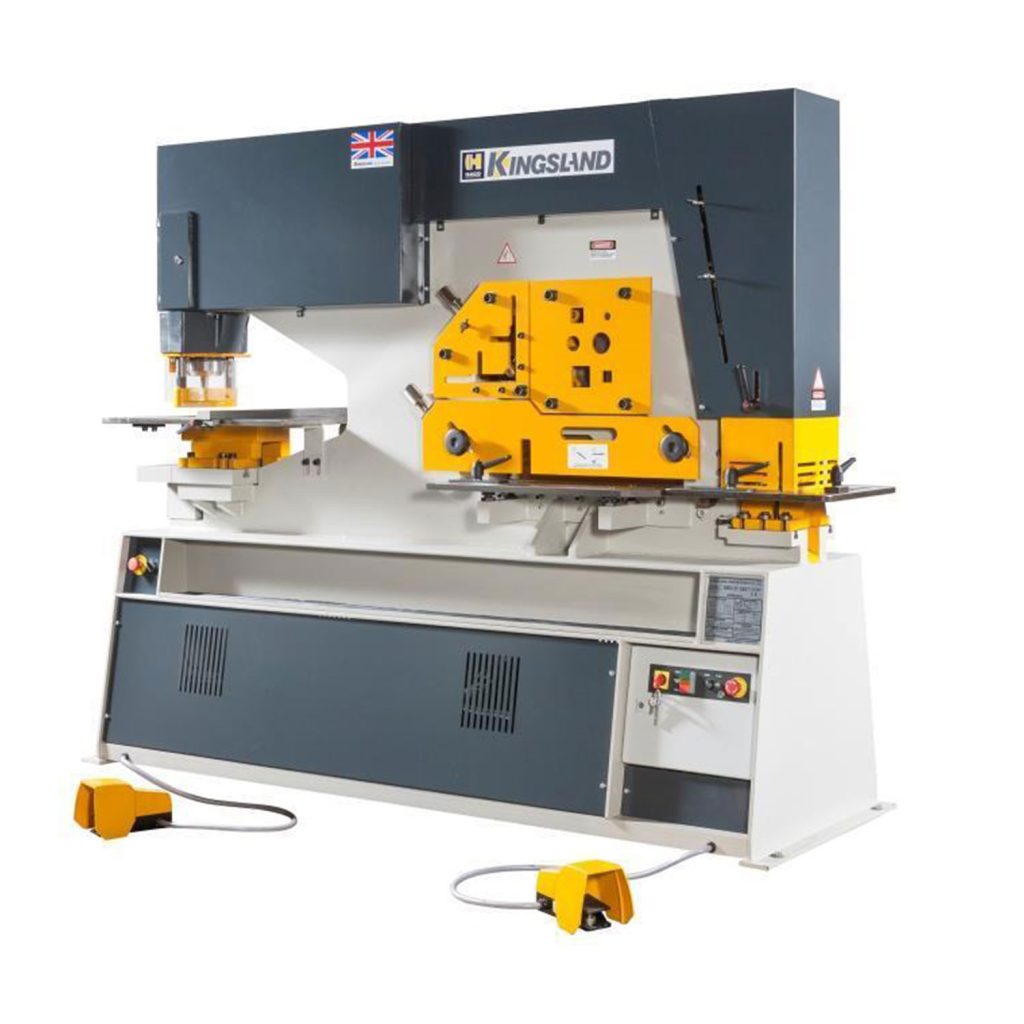

Kingsland Multi 125 Hydraulic Steelwork

Description

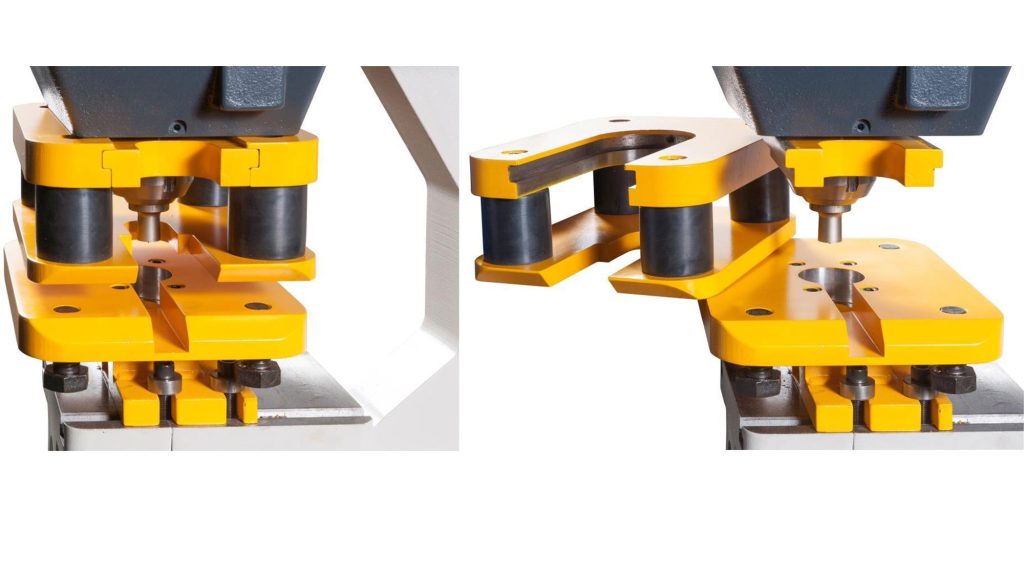

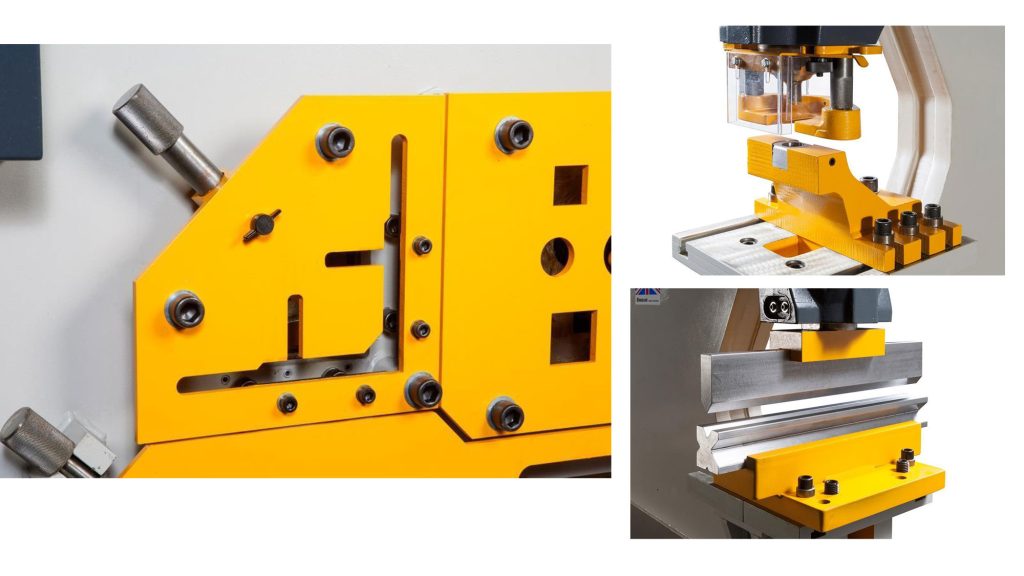

These universal machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and with easily adjusted holddowns at all five work stations to safely control the operations. These universal machines are supplied with standard tooling including repetition support tables at punch, shear and notch stations and with easily adjusted holddowns at all five work stations to safely control the operations.

Specification

Punching
Maximum capacity 35 x 25mm
Diameter x thickness 57 x 16mm
Shearing
Flat bar – maximum thickness 380 x 25
Flat bar – maximum width 600 x 15mm
Angle cutting
90 Degree cut 150 x 18mm
Section Cutting
Round/square 50mm
Notching
Material thickness 13mm
Width – rectangle 60mm
Technical data
Motor power 7,5kW









    Price:
    £ P.O.A
    Details:
    • Condition : new
