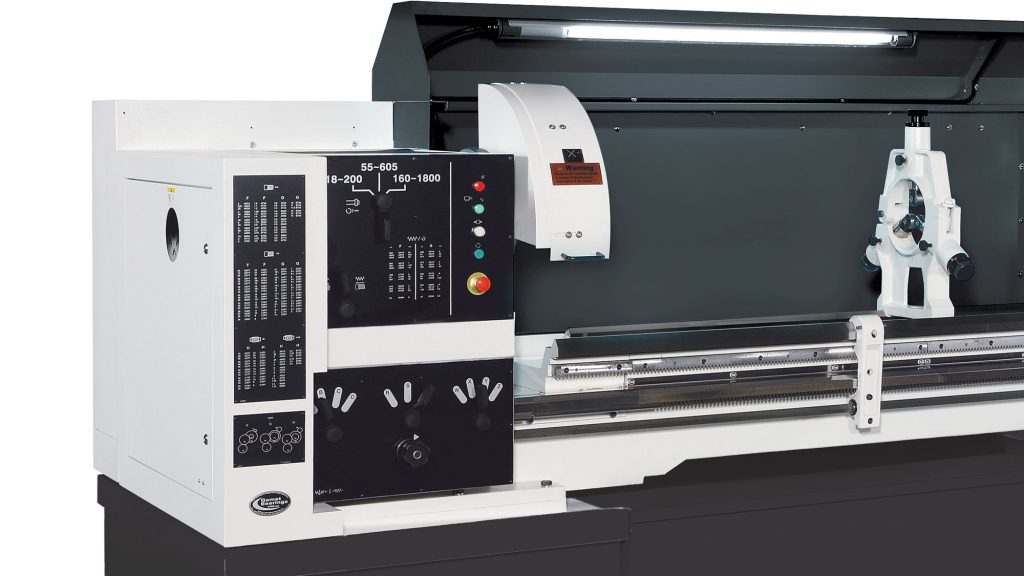

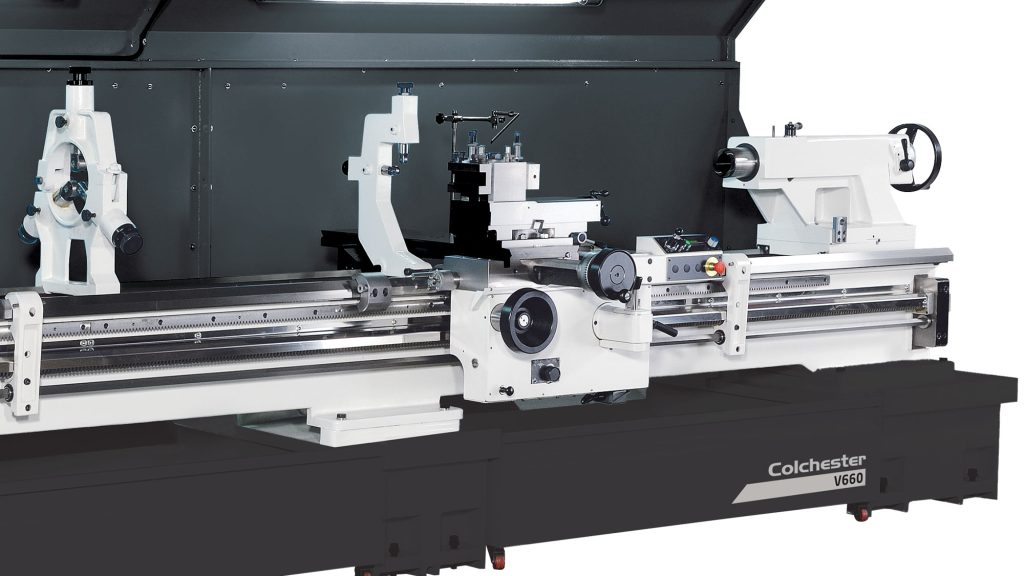

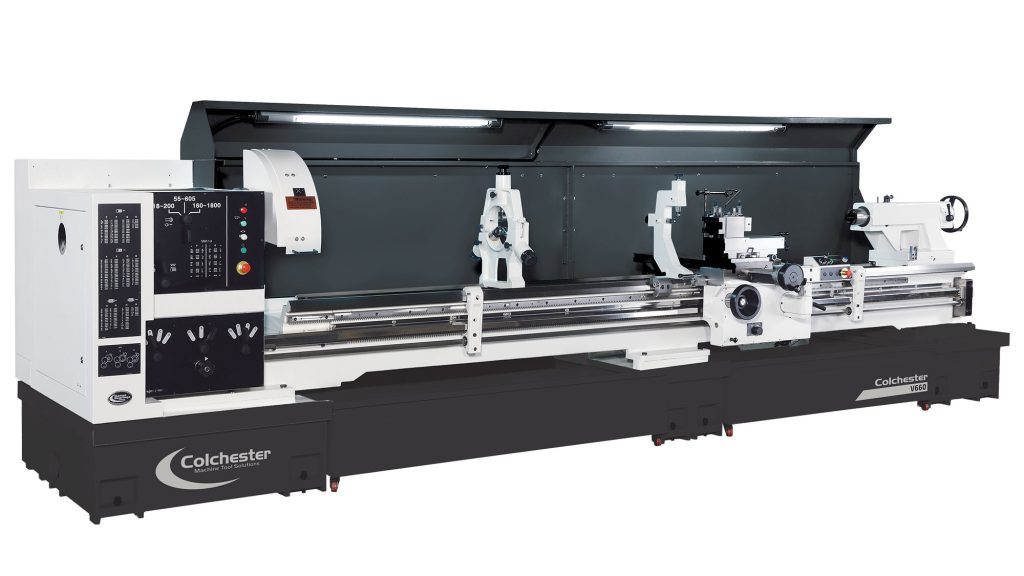

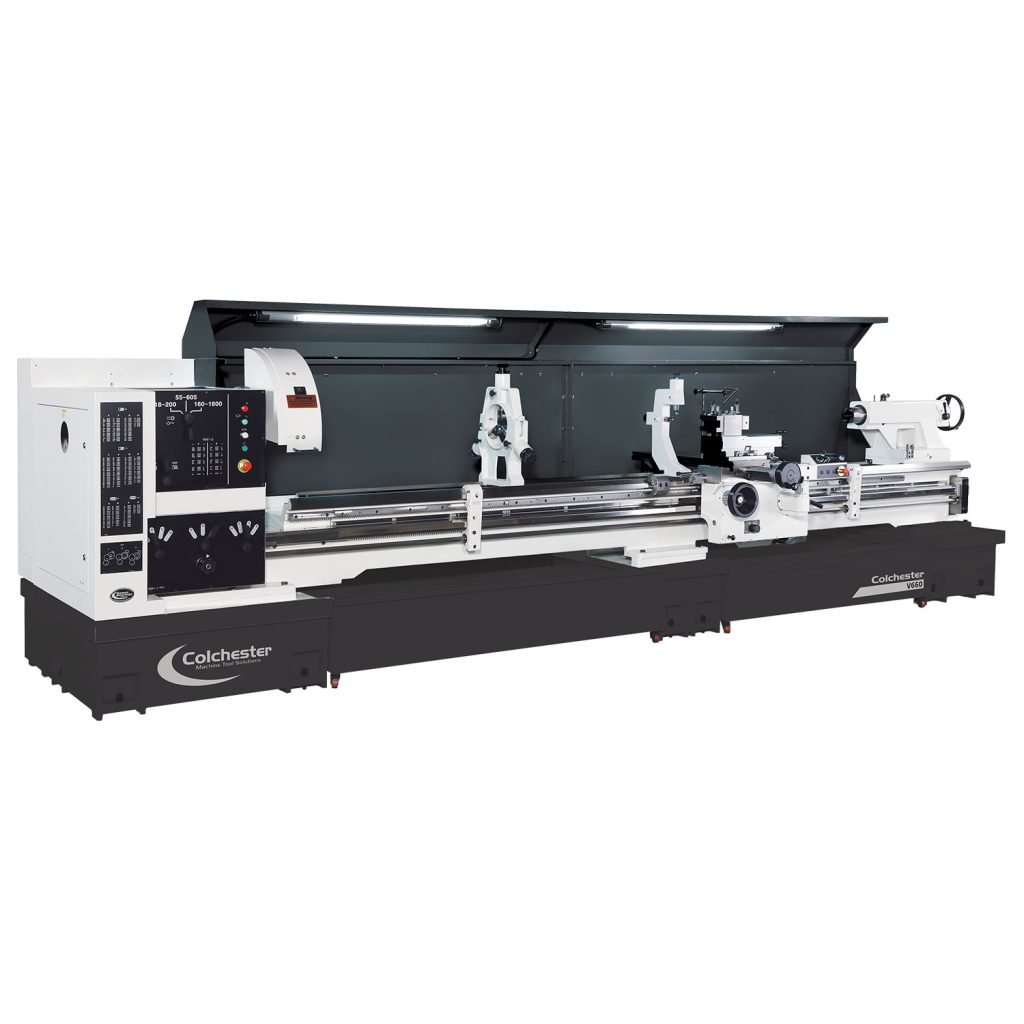

Harrison V660 Centre Lathes


Induction hardened and ground bed. Heavy duty constant power spindle drive motor. Precision hardened and ground gears in headstock. Precision spindle running on Gamet ultra high precision taper roller bearings.


V660 Centre Lathes
Height of centres 330mm
Distance between centres 1500mm, 2000mm, 3000mm & 4000mm
Swing over bed 660mm
Swing in gap 960mm
Gap width from face plate 300mm
Swing over cross slide 460mm
Spindle bore 105mm
Spindle nose Camlock D1-11
Taper in nose bush No. 6 MT
Spindle speeds 3 infinitely variable ranges
Spindle speed range 10 - 1800rpm
Spindle motor S3 - 40% 20kW
Tailstock quill diameter 105mm
Tailstock quill taper No. 6 MT
Bed width 480mm
Standard electrics 380 to 440V / 3 ph / 50Hz


Machine equipped with:-

Manually operated tailstock
Saddle mounted controls
Power meter
Rapid power traverse to X & Z
Covered leadscrew
Splash guard
Electrically interlocked chuck guard
Machine lighting
Standard electric coolant pump, tank, hose and fittings
Machine mounting pads
Machine toolbox
Automatic slideway lubrication
Swarf tray
Operation and spare parts manual
Accuracy chart


    £ P.O.A
    • Condition : new
