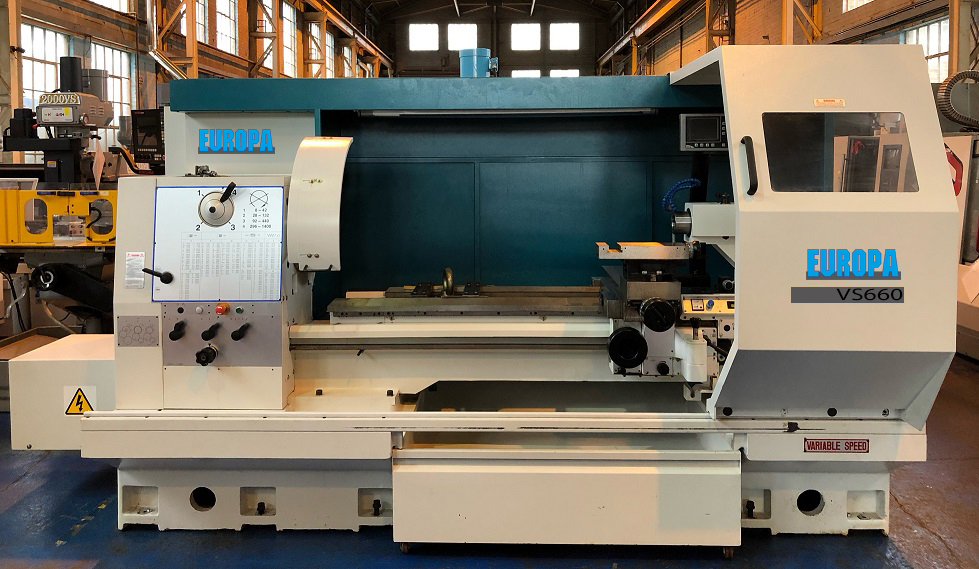

Europa VS660 Gap Bed Centre Lathe

Description

Europa VS660 Gap Bed Centre Lathe with 660mm swing x 1500mm between centres. Equipped with Fagor 2 Axis DRO, 3 jaw chuck. Quick change toolpost and toolholders. Large capacity, heavy duty lathe

Specification

Europa VS660
Centre height 330mm
Distance between centres 1500mm
Swing over bed 660mm
Swing over cross slide 430mm
Spindle bore (max. bar dia) 104mm
Spindle nose mounting D1-11 Camlock
Taper in spindle bore No. 7 Morse
Swing in gap 860mm
Width of bedways 480mm
Total travel of cross slide 390mm
Total travel of top slide 190mm
Total travel of tailstock barrel 300mm
Spindle speeds (infinitely variable) 18 – 1400rpm
Drive vee belt and clutches
Spindle motor 20HP
Imperial pitches (73) 2-84TPI
Diametral pitches (27) 8-72DP
Metric pitches (51) 0.2 – 14mm
Module pitches (20) 0.2 –3.5 MOD
Approx. weight 3800 kg
Machine in Imperial execution

Europa VS660 Gap Bed Centre Lathe in stock in the UK

Machine equipped with

Fagor 2 axis DRO system with CSS ( Metric and imperial read out options)
3 jaw chuck
Quick change toolpost and toolholders
Rapid power traverse to saddle
lighting
Coolant system
Chuck guard
Rear splash guard

Europa VS660 Lathes UK

Europa VS660 large capacity lathe



Other larger lathes we offer:

Europa MA-35 Large Capacity Conventional Lathe

    Price:
    £ P.O.A
    Details:
    • Serial Number : 0153
    • Year : 2013
    • Condition : used
