Description

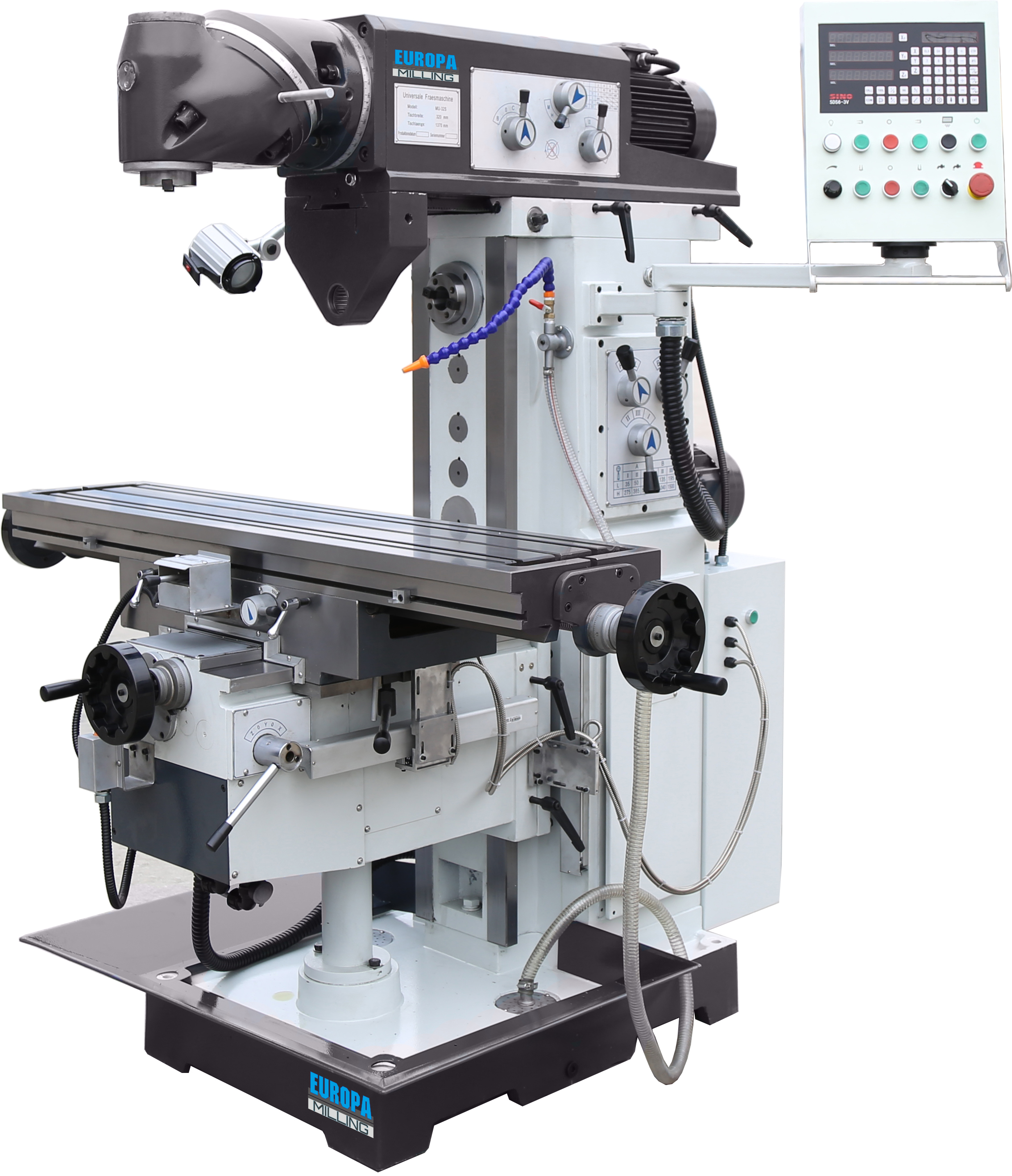

Heavy-duty ram mill with a horizontal milling spindle, 1600 x 360mm table. The MU-36SCL model features a universal table with 45degrees of tilt.
EUROPA MU-36 S & MU-36SCL Ram Type Milling Machines
| Specification |
EUROPA MU-36 |
| Table size |
1600 x 360mm |
| T-slots (number x width x pitch) |
3 x 18 x 80mm |
| Max. table load |
500kg |
| Table rotation – Only on MU-36CSL |
+ / - 45degs (MU-36SCL only) |
| Travels (X/Y/Z axes) |
1000 x 320 x 450mm |
| Vertical spindle taper |
7:24 ISO No.50 |
| Vertical spindle speed |
60 – 1750rpm in 12 steps |
| Swivel angle of vertical spindle head |
360° Degree |
| Distance between vertical spindle end and tabletop |
190 – 590mm |
| Horizontal spindle taper |
7:24 ISO No.50 |
| Horizontal spindle speed |
60 – 1800rpm |
| Feed rates (X/Y/Z axes) |
(infinite) 30 - 750 / 20 - 500 / 15-375 mm/min |
| Rapid traverse (X/Y/Z axes) |
1000 / 1000 / 750mm/min |
| Power of Vertical / Horizontal motor |
5hp / 7hp |
| Power of feed servo motor |
2hp / 10Nm |
| Machine dimensions (L x W x H, approximate) |
2520 x 2100 x 2000mm |
| Machine weight (approximate) |
2800Kg |
EUROPA MU-36 series of heavy duty milling machines.
| Machine Features |
- Robust & rugged machine body made of high grade casting assuring superb stability and long-lasting life.
- Fine elaborate workmanship with great care and neat appearance with perfect paint finish.
- Precision-ground guideways with the hardened surface for long-term accuracy and wear-resistance.
- Patented-design with a Servo motor drive mechanism with gear speed reduction for feeding transmission.
- Feed selection among X / Y / Z axes via one lever only, easier operation, avoiding interference of axes.
- Automatic feeding on ALL three axes, ie. X, Y, Z axes. A boring function can be done.
- Centralised transmission system featuring big power output, less maintenance and easy operation.
- The large work area of 1600x360mm and up to 500 kg table load capacity.
- Tilting table on MU-36SCL model with +/- 45 degs tilt.
- Precision ground NT 50 vertical spindle and horizontal spindle.
- Vertical universal head rotates 360° for versatile cutting performance.
- High speed vertical universal head firmly fixed on ram for robust & heavy cutting performance.
- Wide speed ranges (60-1800rpm / 12 steps) of horizontal milling spindle for enhanced cutting on different material.
- Horizontal milling spindle is supported at three points at optimized distance featuring robust cutting capacity.
- Separate button for the rapid traverse of axes, aside from automatic feeding, for easier operation and less idle time.
- Motor power is transmitted to the horizontal milling spindle via gears for extraordinary heavy power cutting.
- Compulsory lubrication of horizontal milling spindle transmission gears for smooth running.
- Telescopic covers on the Y-axis protect the feed spindle.
- The Control panel swings out to either side and features an integrated position indicator.
|
