Description

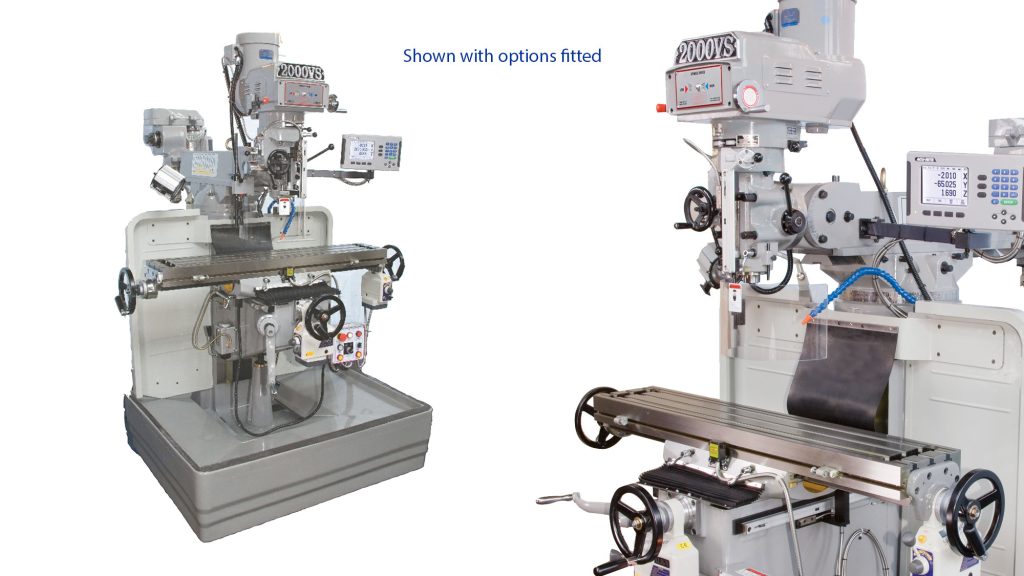

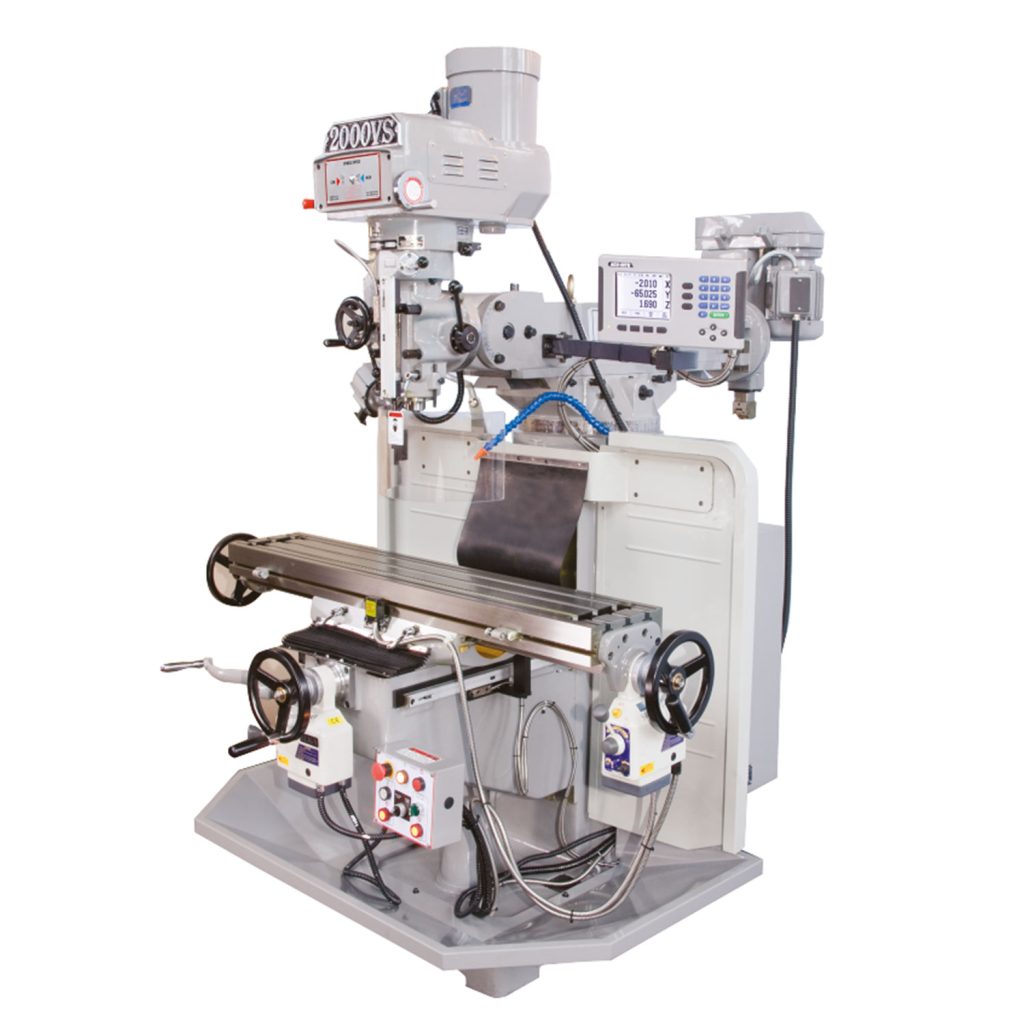

The Europa Milltech turret mills have been a staple element of our tool portfolio for many years. Popular with customers from industry and educational establishments, the range has now been enhanced with the addition of manual and full CNC control of three axes. At the heart of these changes is the Heidenhain TNC320 control system, the first of its type to be fitted with such a high level control system.
Specification |
|
| Table size | 1244 x 230mm |
| Longitudinal traverse (X axis) | 755mm |
| Cross traverse (Y axis) | 300mm |
| Vertical traverse | 405mm |
| Quill travel (Z axis) | 110mm |
| Quill diameter | 86mm |
| Quill taper | R8 |
| Spindle motor | 2.25 kw |
| Spindle speeds (inf. variable) | 75-3800 rpm |
| Spindle nose to table | 0 - 390mm |
| Spindle centre line to column | 171 - 482mm |
| Overall height | 2200mm |
| Overall depth | 2300mm |
| Overall width | 1800mm |
| Weight | 1300 kg |
Machine Equipped with:
- HEIDENHAIN TNC320 Compact CNC Contouring control
- FAGOR high torque servo motors and drives
- High precision ballscrews on all three axes
- Infinitely variable spindle speeds
- Manual one shot lubrication
- Infinitely variable longitudinal power feeds & rapid to table
- Infinitely variable cross power feeds & rapid to table
- Hardened & ground slideways to all axes
- TURCITE B coating to X & Y axes
- Heavy duty dovetail knee ways
- Heavy duty dovetail slideways to column
- Hardened and ground worktable
- Ground tee slots on the worktable
- Low voltage Halogen worklight
- Fibreglass surround and base splash tray
- Coolant system
- Toolkit & Manual
Price:
£ P.O.A
Details:
- Condition : new
