Description

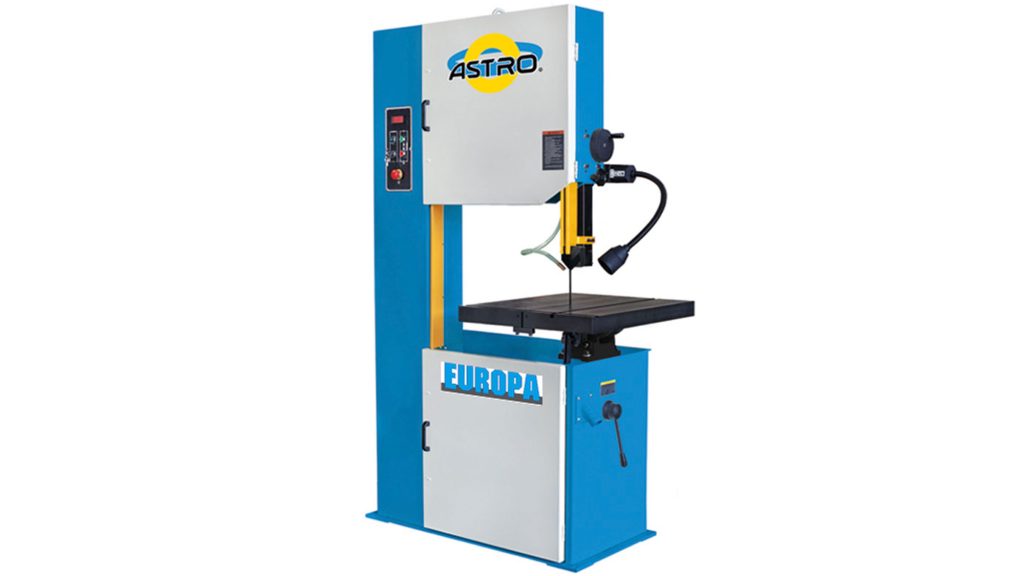

EUROPA Astro V6660 Vertical Contour Bandsaw for metals through to wood or plastic. This industrial vertical bandsaw is the best toolroom machine available. It is equipped with many options as standard and has a variable speed inverter drive to give the correct blade speeds for many different materials.
EUROPA Astro V660 Vertical Contour Bandsaw for metals
Machine specification | ||
Throat, band to column | mm | 658 |
Max work height | mm | 355 |
Band width capacity | mm | 3 – 27 |
Max band length | mm | 4680 |
Motor Power (400v/50Hz/3phase) | Kw | 2.2 |
Table size primary table | mm | 600 x 700 |
Table tilt in degrees R & L | ° | 12/12 |
Table height | mm | 1.000 |
Band speed range | m/min | 15-130 / 175-1500 |
Wheels, diameter | mm | 665 - Rubber tires |
Upper wheel adjustment | mm | 50 |
Floor area | mm | 1.295 x 810 |
Height, maximum | mm | 2.140 |
Weight | kg | 665 |
Colour | DoALL blue / white |
Machine equipped with |
One set of high speed insert blocks for blades 3mm – 27mm |
One set of carbide faced guides blocks for blades 3mm – 27mm |
Blade speed digital read out (m/min) |
Blade tension indicator |
Work light |
Rip fence |
Mitre / disc attachment |
Handwheel to raise and lower the top guide post |
Inverter drive |
Tools and operating manuals |
Chip / swarf blower |
CE Specification |
Coolant System |
EUROPA Astro V660 Vertical Contour Bandsaw for metals and plastices.
Options – factory order only |
300mm stroke electrically driven table – 600 x 700mm |
600mm stroke electrically driven table – 810 x 720mm |
600mm stroke glide table – 810 x 720mm |
4.2 KVA Blade Welder for 3-16mm blades |
7.2 KVA Blade Welder for 6-19mm blades |
Mist lubrication system (requires compressed air supply) |
Other Europa Vertical Band saws UK.
Price:
Details:
- Condition : new
