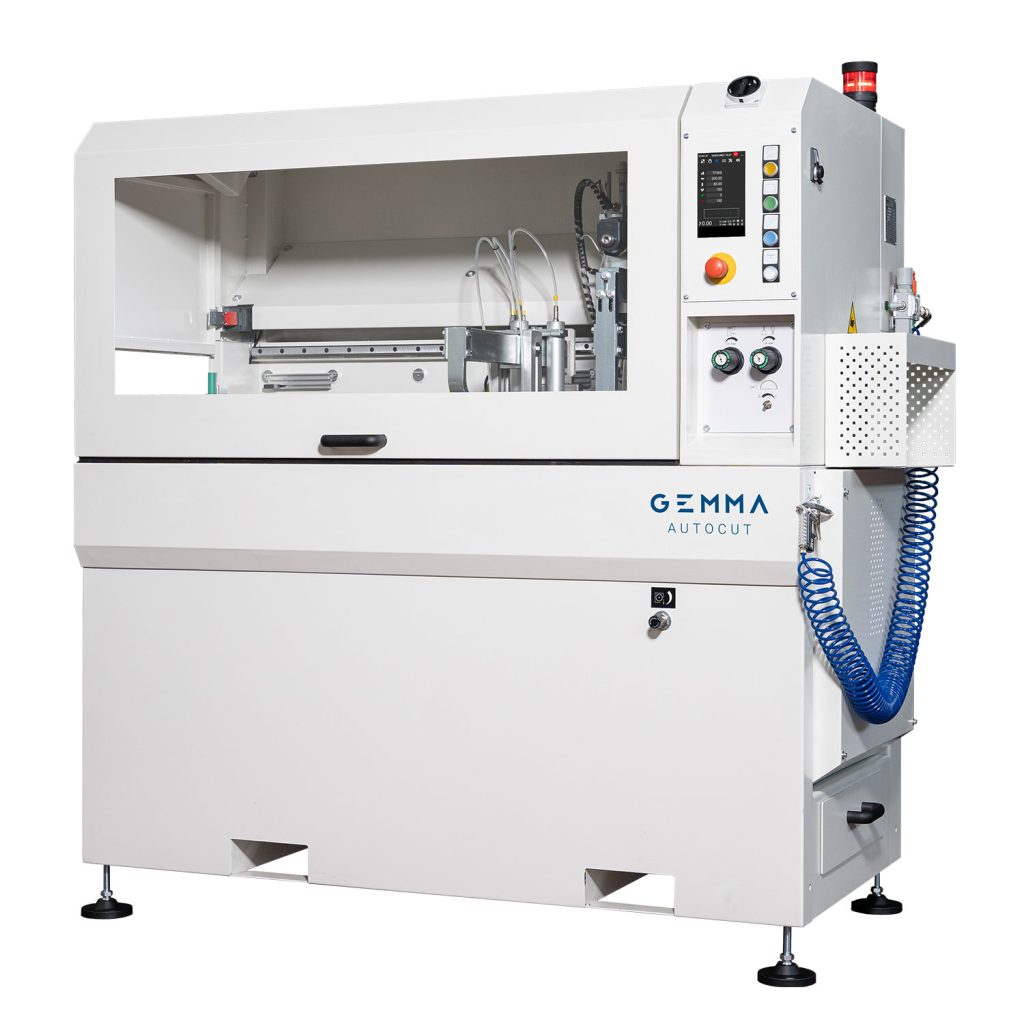

Autocut 500 Single Head Automatic Sawing Machine

Description

Fully automated high speed circular saw for batch cutting of non-ferrous solids or sections. 500mm carbide tipped blade for fast and accurate sawing of aluminium sections and profiles.

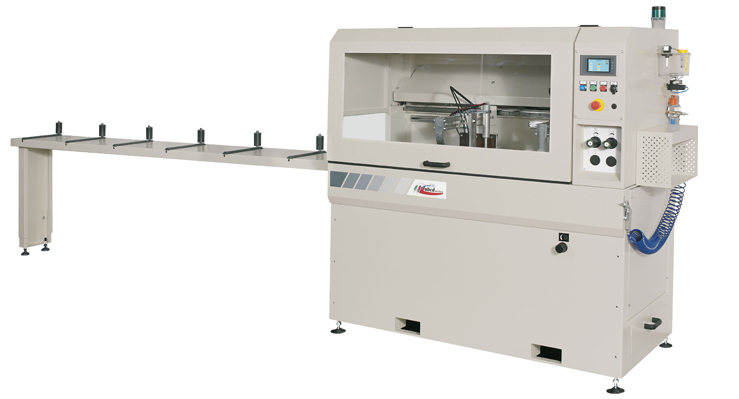

Autocut 500 Single Head Automatic Sawing Machine with Automatic feeding for cutting at 90 Degrees

Technical Specification

Autocut 500 Single Head Automatic Saw

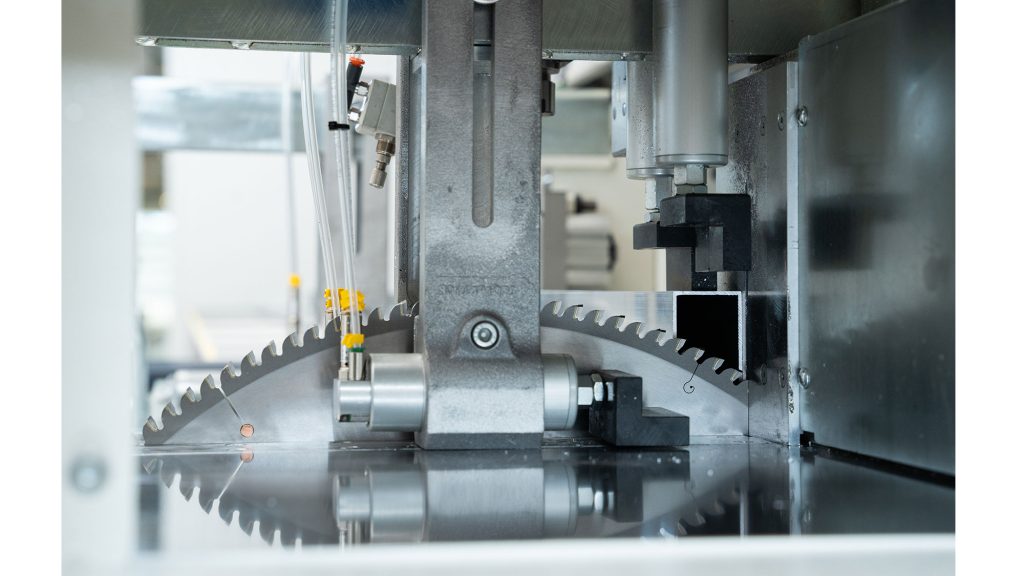

TCT saw blade diameter 500mm
Motor 3phase 3,7kw 400v/50hz
2800rpm
Air pressure 7 bar
Air consumption 25nl/min
Max speed feeding unit 30m/min (variable)
Max stroke feeding unit 800mm
Min. Cutting length 10mm

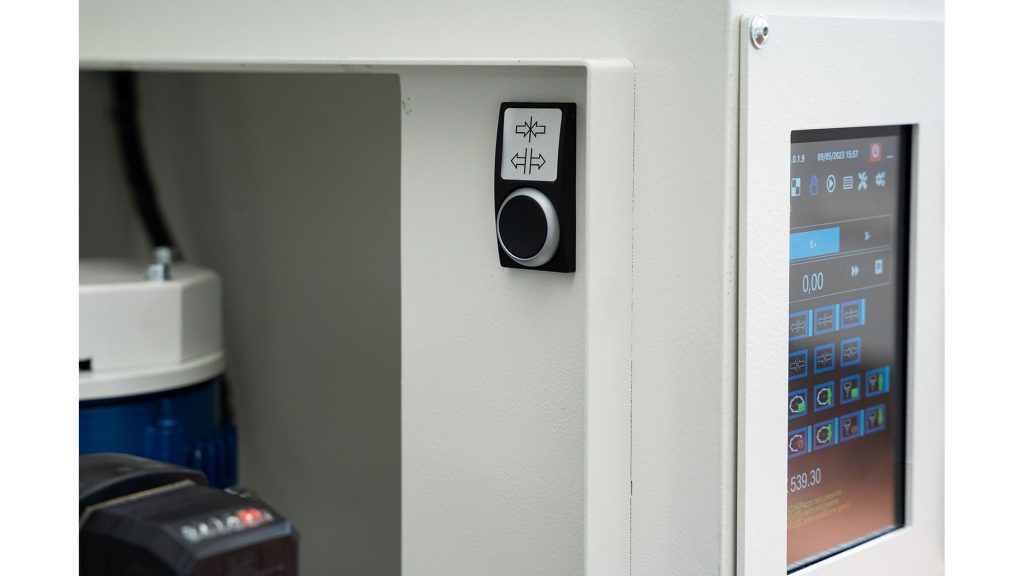

Automatic vice retraction



Standard equipment

Pneumatic clamping set
Venturi Spray mist unit
Central support for small size profiles
Additional kit pneumatic clamps to be fitted on the mobile carriage
Air gun + filter

Equipped with:

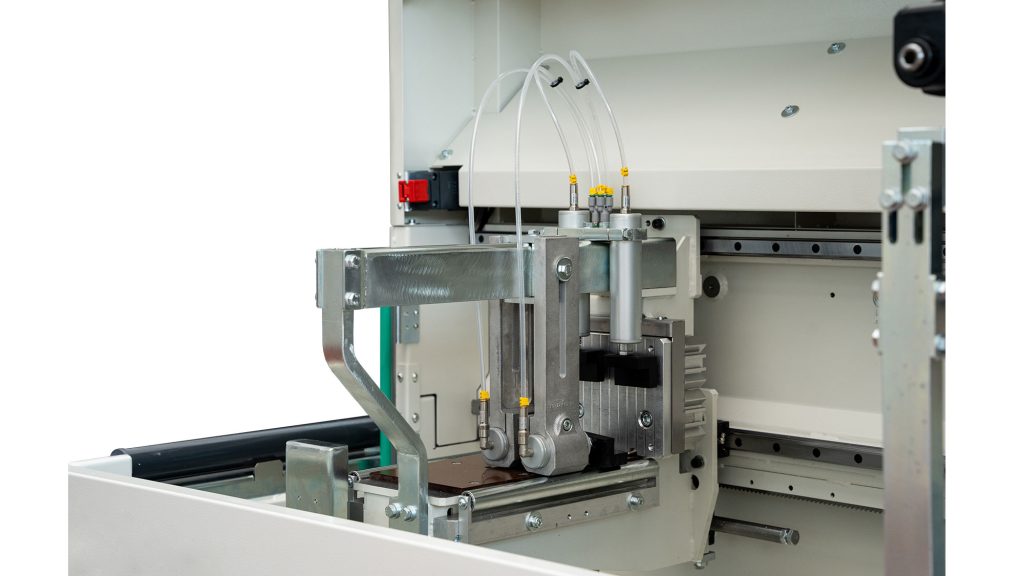

Automatic feeding system fitted with Brushless motor driven by numerical control “touch screen”.
Bar-end detection device.

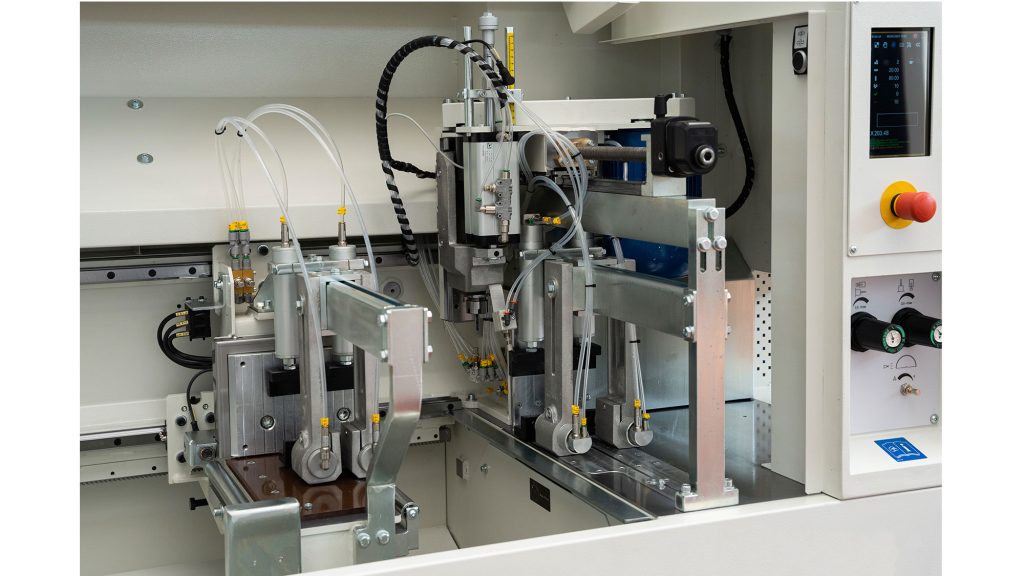

Clamping of the bar by “bridge” system.
Possibility to load and save cutting lists in CSV format with USB and ETHERNET connectivity. Spray mist lubrication (Venturi).



Autocut 500 Automatic Saw for Aluminium



Other Non Ferrous Saws UK :

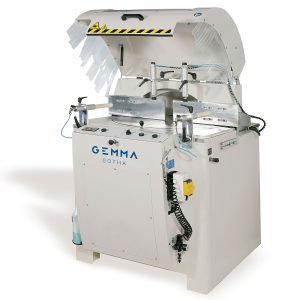

Gotha UAL600 Aluminium Sawing Machine

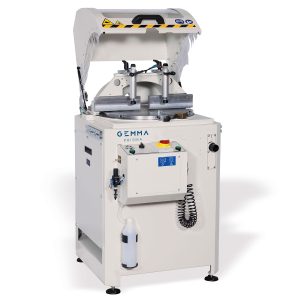

Prisma UAL450 Aluminium upstroke saw

    Price:
    £ P.O.A
    Details:
    • Condition : new
