Vertical axis grinding machines from DELTA. Easy to use and highly reliable. Cast iron column mounted on adjustable taper roller bearings and a motor of 2.2kW allow precise grinding of surfaces upto 140 x 330mm. The quick vertical feed is obtained by rotating a graduated handwheel which by acting on a spiral toothing, permits feed of 2mm per revolution.
Vertical axis grinding machines with fixed, rotary and swinging table available in 5 models. Exceptional material removal rates. Quick, vertical feed via handwheel. Fine feed with micrometre feed
A 500mm grinding capacity with up to 205mm between the table and the wheel. This is the larger of the DELTA ELLE vertical spindle surface grinders from Italian manufacturer, DELTA.
Easy to use and highly reliable. Cast iron construction of certified quality, oversized and suitably ribbed in order to obtain the maximum structure stiffness. The wheel head is equipped with a special electro spindle designed and made by DELTA, supported by precision bearings and dynamically balanced with modern electronic equipment. The vertical feed is obtained by rotating a graduated handwheel.
The DELTA LF350 consists of a stiff monolithic structure arm, which allows to make the best use of the power of the wheel motor. Fixed grinding tables can be equipped with different types of magnetic chucks.

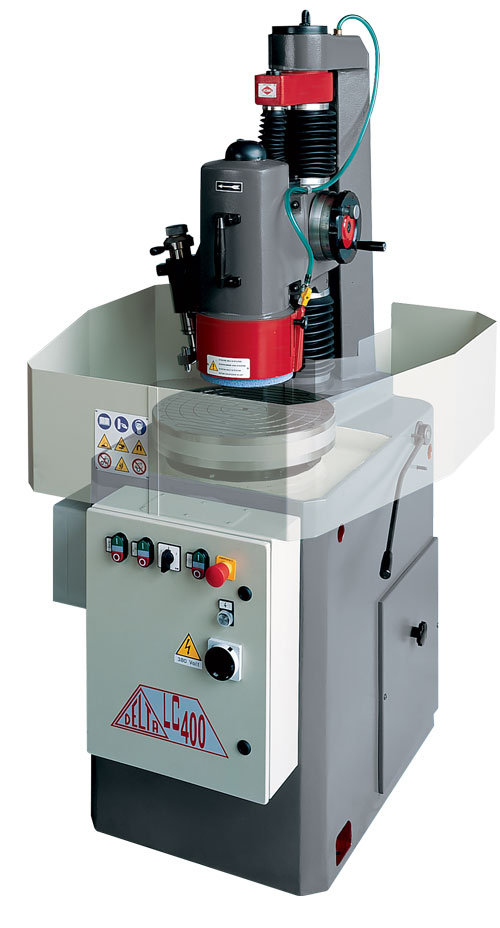

With upto a 400mm grinding diameter on this rotary table, vertical spindle surface grinder from Italian manufacturer, DELTA, a leading surface grinder manufacturer with over 20,000 units sold worldwide.
The rotating table is controlled by asynchronous three-phase bipolar motors with 8/16 poles; thanks to these motors the table can rotate at a speed of 40 rpm, and at a speed of 30 rpm.
